Advantages and Disadvantages of On-Load Tap Changer Tester

As a professional power test equipment, the on-load tap changer tester is widely used in power systems. The following is a detailed analysis of its advantages and disadvantages:

1. Advantages

① Comprehensive functions: The tester can measure the transition time, transition waveform, transition resistance, three-phase synchronization and other parameters of the on-load tap changer, providing users with a comprehensive switch performance analysis.

② Easy operation: The instrument uses a large-screen dot matrix LCD display and a hierarchical Chinese menu. The operation is intuitive and easy. Users only need to press the function key according to the prompts to measure.

③ High degree of intelligence: The instrument has intelligent testing and result analysis functions, which can automatically find the fault in the middle of the waveform and mark it, making it convenient for users to further analyze and compare the waveform.

④ Strong anti-interference ability: The all-aluminum alloy chassis and the instrument are equipped with power noise filters and anti-interference circuits, which can perform reliable measurements on-site with poor power quality and strong electromagnetic field interference.

⑤ Data storage and printing function: The instrument is equipped with an uninterruptible power storage device inside, which can save multiple sets of waveforms and data, and archive, review and analyze them at any time. At the same time, the instrument is equipped with a printer, which can directly print the test results.

⑥ Wide test range: The tester can test different types of transformers, including YO, Y△ type, etc. The resistance value is directly displayed without conversion, and it can also be tested with or without windings.

⑦ Continuous testing capability: Continuous testing can be performed during the test process, saving the time of transformer power outage.

2. Disadvantages

① Specific environmental requirements: The tester may need to work properly under specific environmental conditions, such as temperature, humidity, and electromagnetic interference. If the environmental conditions do not meet the requirements, the accuracy of the test results may be affected.

② Power supply requirements: The tester usually requires a stable power supply. If the power quality is poor or fluctuates greatly, it may affect the performance and test results of the tester.

③ Operation complexity: Although most on-load tap changer testers are equipped with an intuitive operation interface and Chinese menu, for some non-professionals, it may still require some learning and training to master its operation methods.

④ Setting multiple parameters and conditions increases the complexity of operation and the possibility of errors.

⑤ Maintenance cost: Regular maintenance and calibration of the tester are the key to ensure its long-term stable operation and accuracy. However, these maintenance tasks may require professional technicians and equipment, which increases maintenance costs. If the tester fails or is damaged, it may be necessary to replace parts or the entire device, which will also increase additional costs.

⑥ Test accuracy limitations: Although the tester has high test accuracy, in some extreme cases, such as when the test environment is harsh or the test object has complex characteristics, the test accuracy may be affected to a certain extent. The accuracy of the tester may also be affected by factors such as its own performance, calibration status, and service life.

⑦ Data processing capabilities: Although the tester usually has data storage and printing functions, when processing large amounts of data, additional software or equipment may be required for analysis and management. If the data processing capacity of the tester is limited, it may affect the timeliness and accuracy of the test results.

In summary, the on-load tap changer tester has many advantages, but it is also necessary to pay attention to its potential disadvantages and limitations during use. To ensure the accuracy and reliability of the test results, users should strictly follow the instructions for operation and maintenance, and combine other test methods and data for comprehensive analysis and judgment.

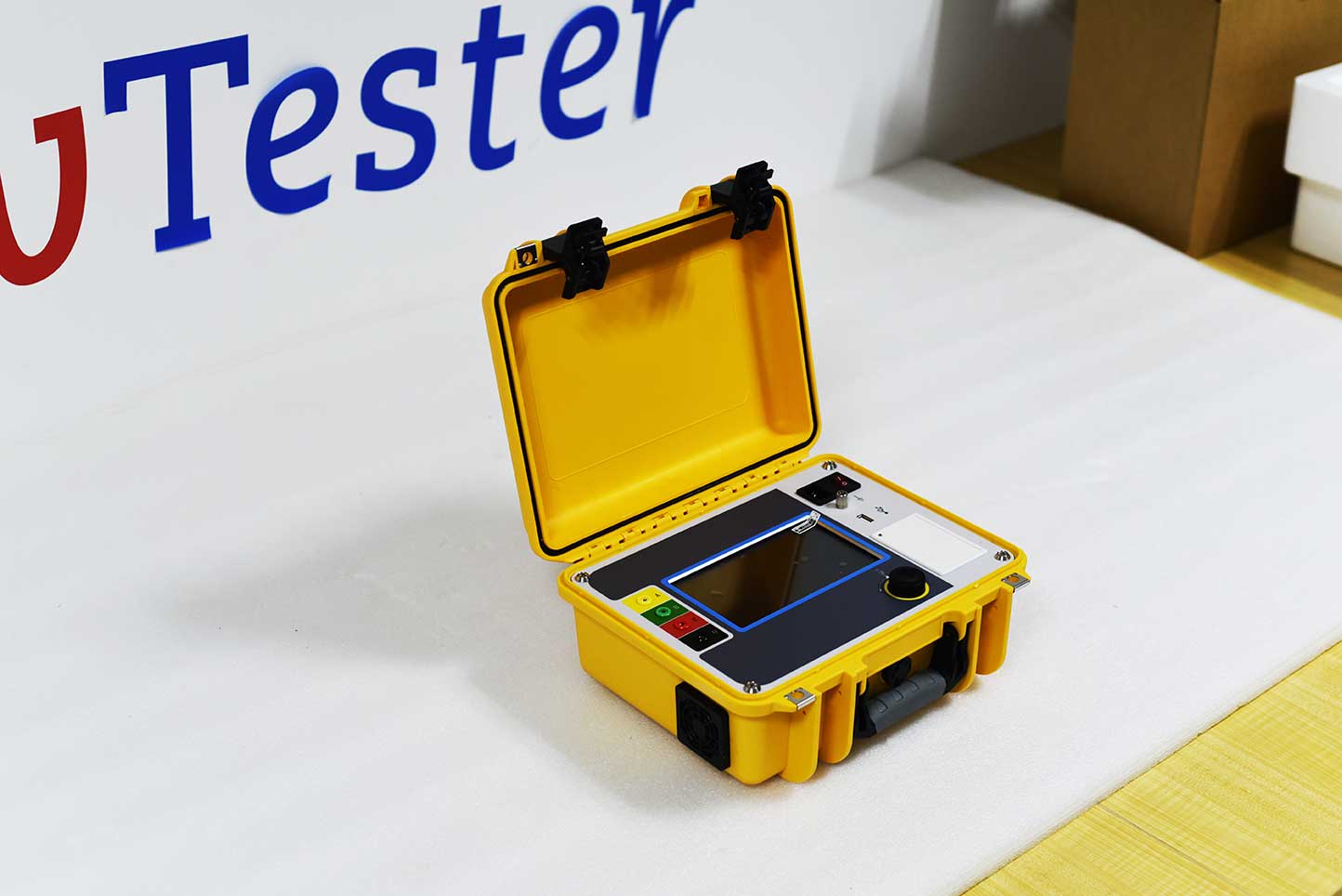

ZC-220 transformer on load tap changer tester is mainly used to measure the transition waveform, transition time, instantaneous transition resistance value, three-phase synchronization, etc. of transformer on load tap changer. The instrument has small volume, light weight and strong anti-interference ability, which greatly reduces the labor intensity of on-site staff. It is an ideal instrument for power generation and power supply units and transformer manufacturing industry to ensure safe production and improve product quality.
