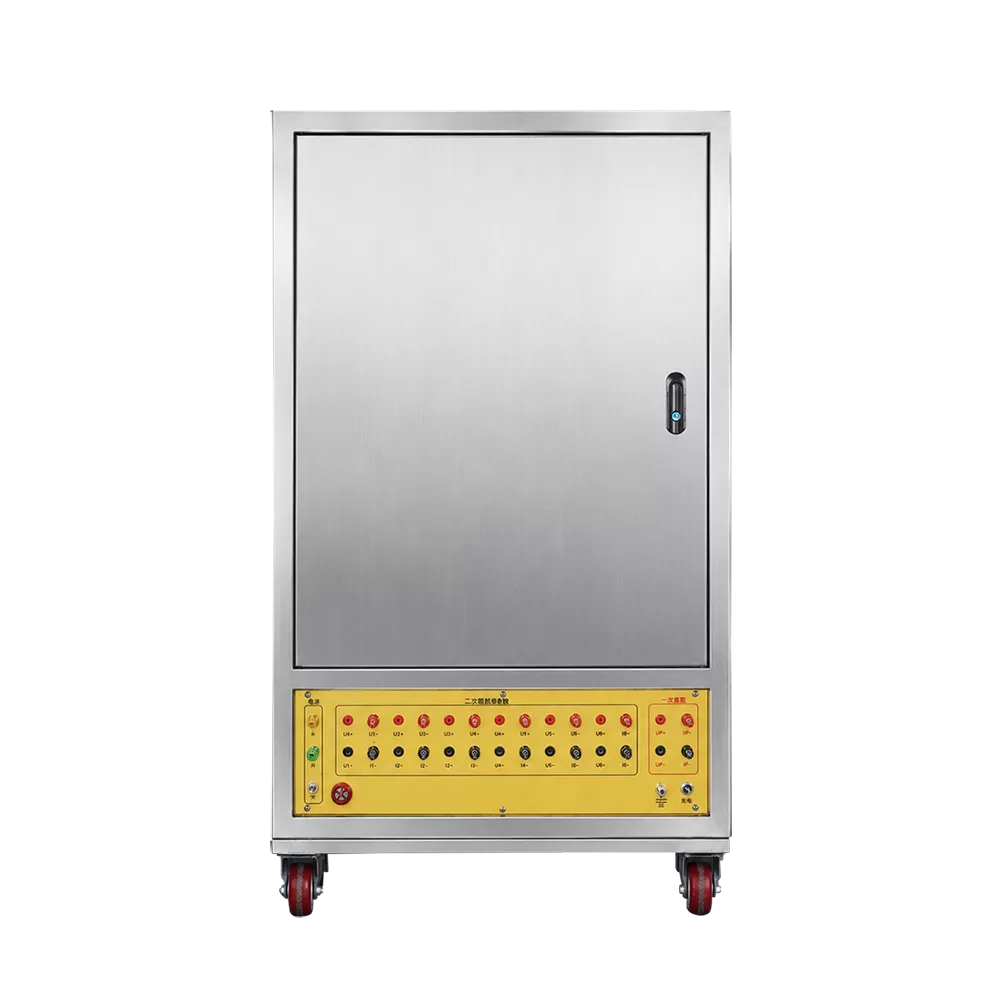

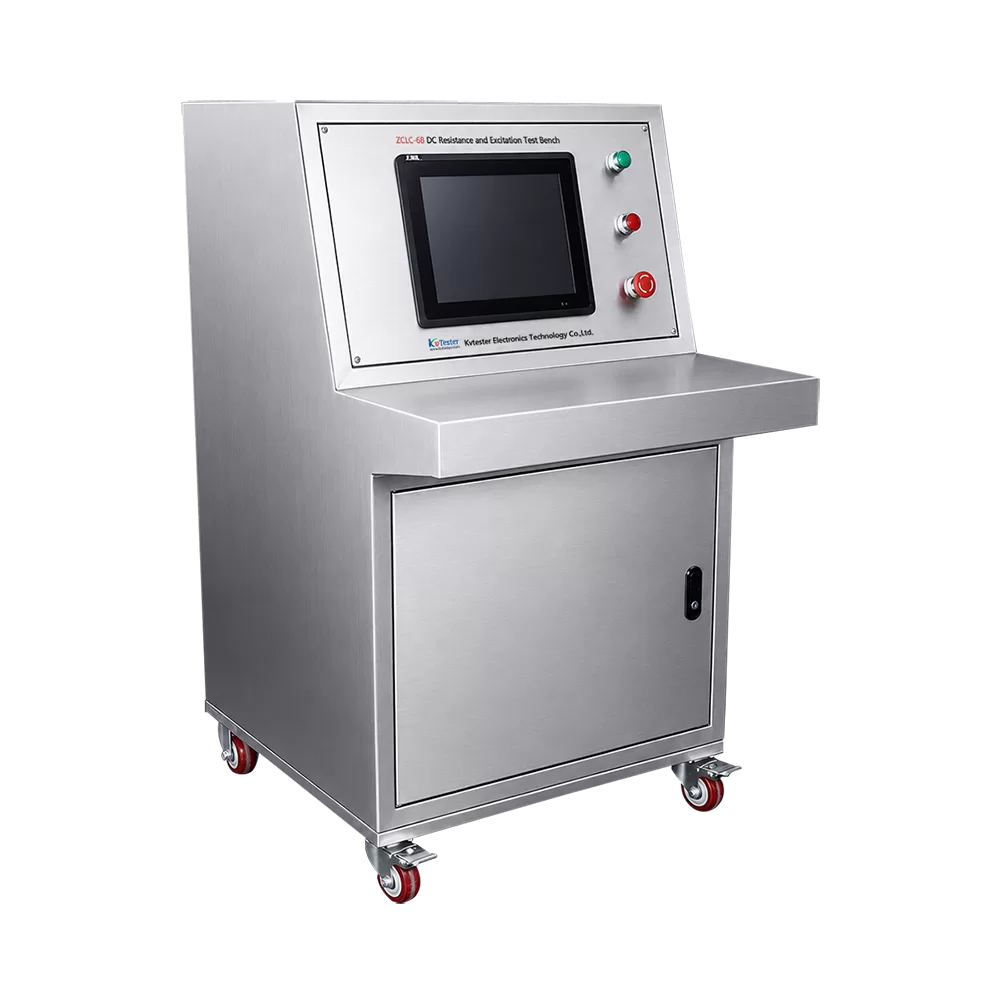

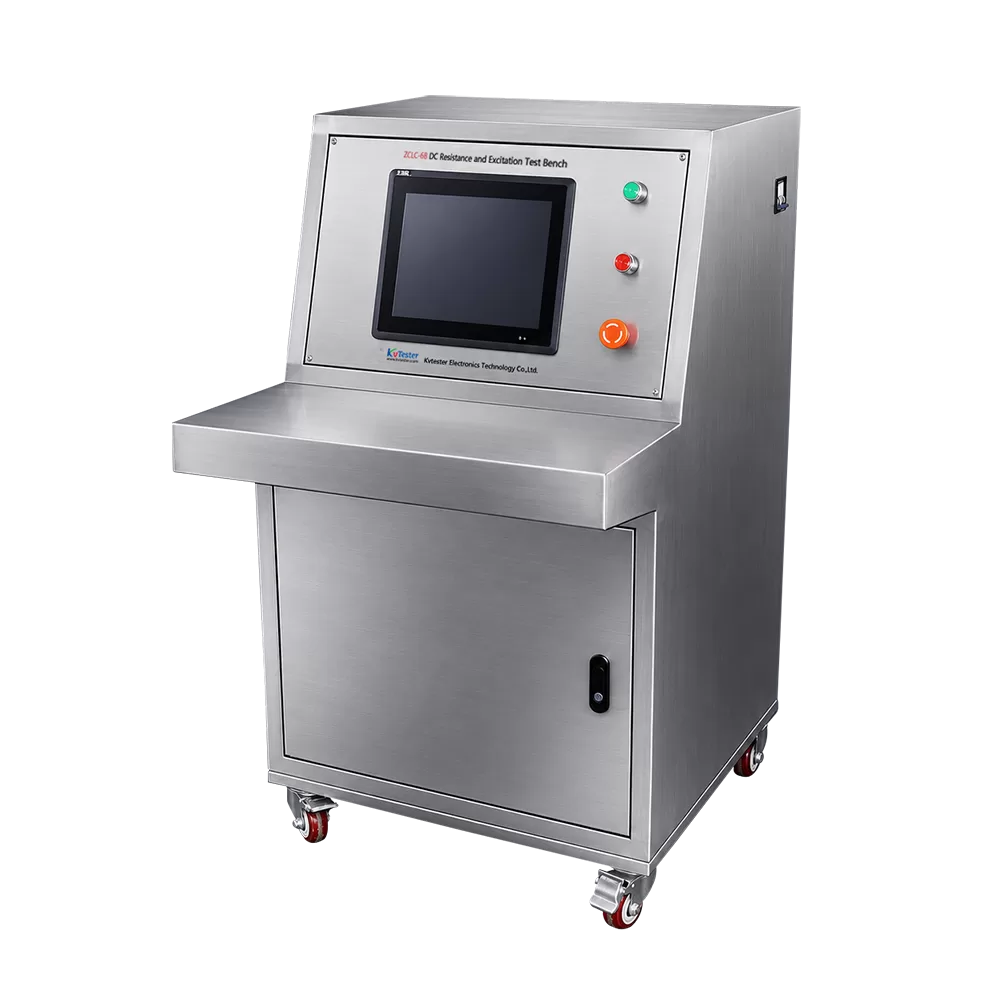

Features and Advantages
1.Full automatic acquisition , measurement ,display , storage , print all measured parameters and excitation characteristic data(voltage ,current ,equipment number , time ,etc.)
2.Wide range, can fully automatic and manual measurement of all transformer excitation data and characteristic curve.
3.Built-in large capacity range memory , storage test data, and the industry standard communication interface(RS232) uploaded to the PC machine and supporting software can realize data download ,automatic generation and editing the typical test report, facilitating technical management and archive.
4.Support 6 channel test , once time wire connection can be automatically completed 6 transformers test , greatly increasing the efficiently of testing.
5.Support to capture the 18 sampling point setting , and can accurately capture the corresponding measuring point.
Parameter
| Type | ZCLC-6 | |
| Function | Measurement of PT excitation characteristics and no-load characteristics | |
| Power supply | Input voltage | 185Vac～250Vac |
| Allowable input voltage | 85Vac～264Vac | |
| Frequency | 50/60Hz | |
| Allowable frequency | 45Hz～65Hz | |
| Input power | 40VA | |
| Connect | Standard AC socket 60320 | |
| AC Voltage | Measuring range | 0～300V |
| Resolution ratio | 0.001V | |
| Test accuracy | 0.2%±0.001V | |
| AC Current | Measuring range | 0～20A |
| Resolution ratio | 0.001A | |
| Test accuracy | 0.2%±0.001A | |
| Active Power | Measuring range | 0～6kW |
| Resolution ratio | 0.001kW | |
| Test accuracy | 0.5%±0.001kW | |
| Frequency | Measuring range | 40～75Hz |
| Resolution ratio | 0.001Hz | |
| Test accuracy | 0.2%±0.001Hz | |
| Environment condition | Operating temperature | -10℃～+50℃ |
| Storage temperature | -25℃～+70℃ | |
| Relative humidity | 5%～95%，No dew | |
| Physical characteristics | Size | 415×225×200mm3 |
| Weight | ≈5kg(Do not include attachments) | |
