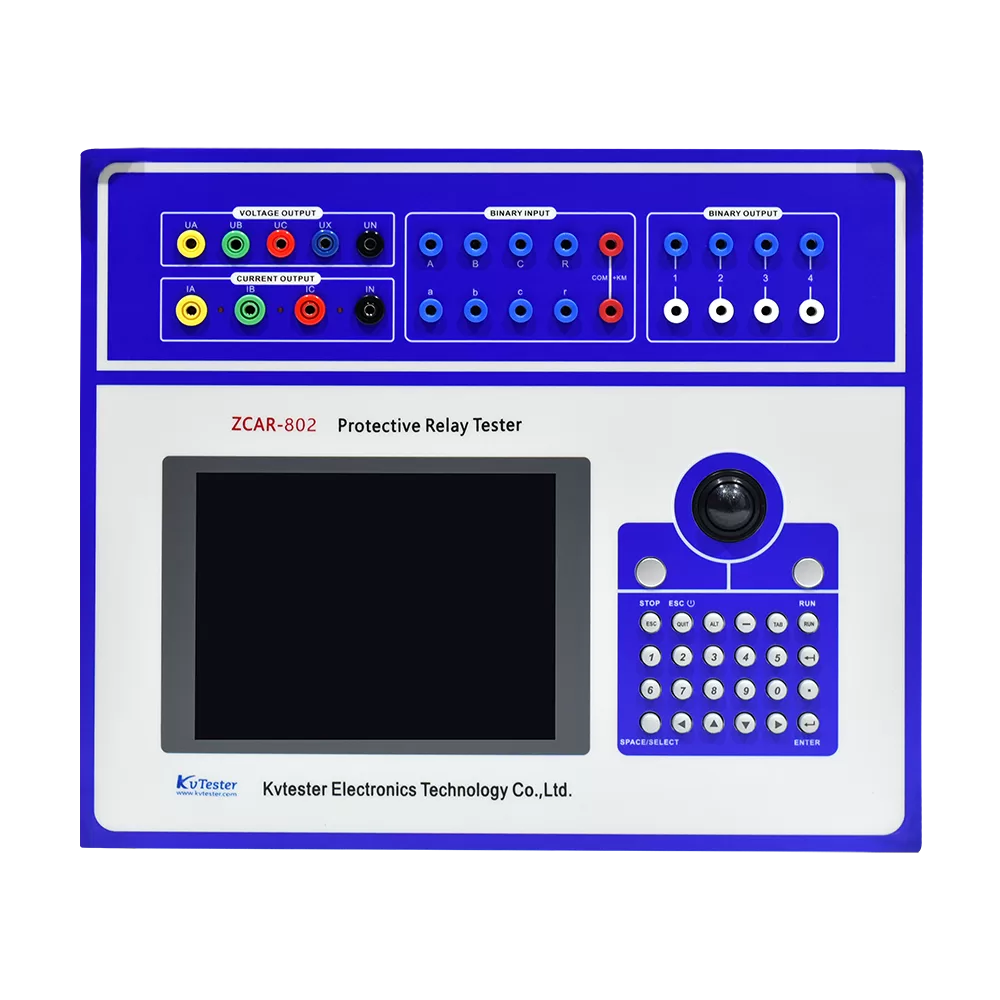

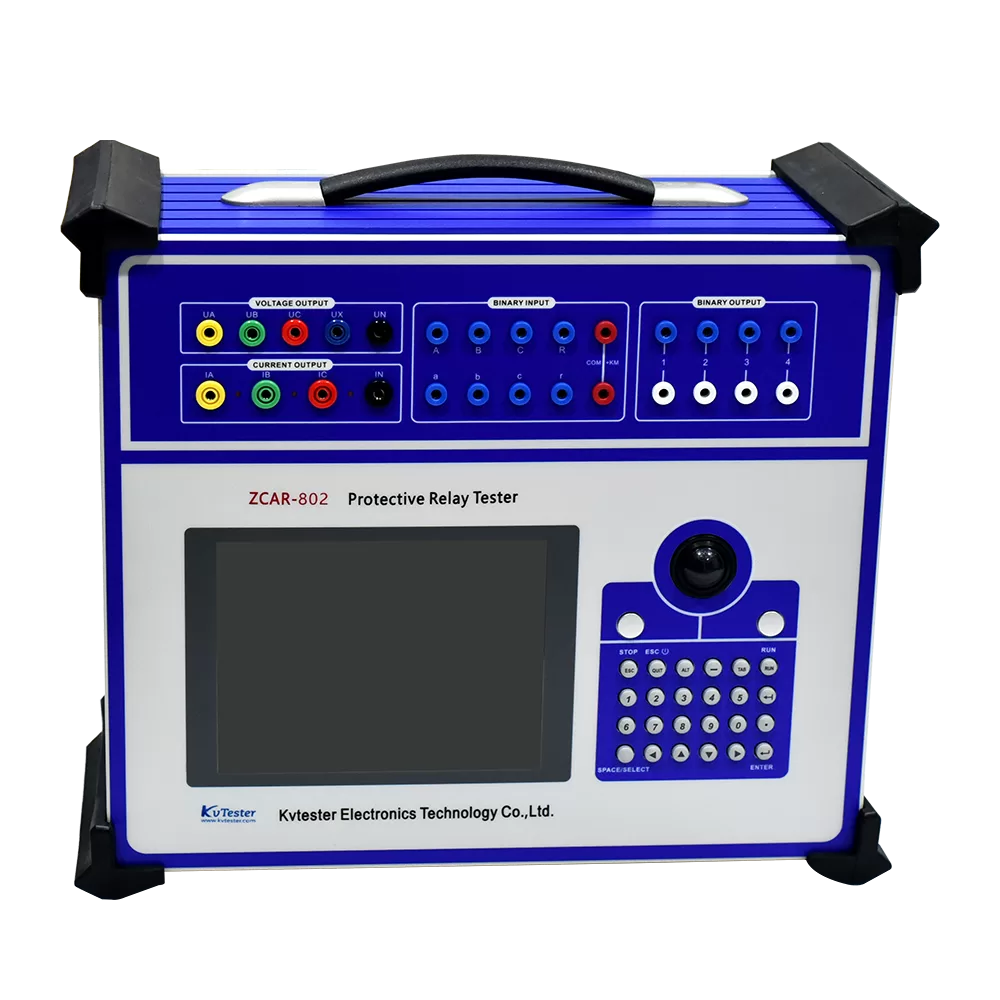

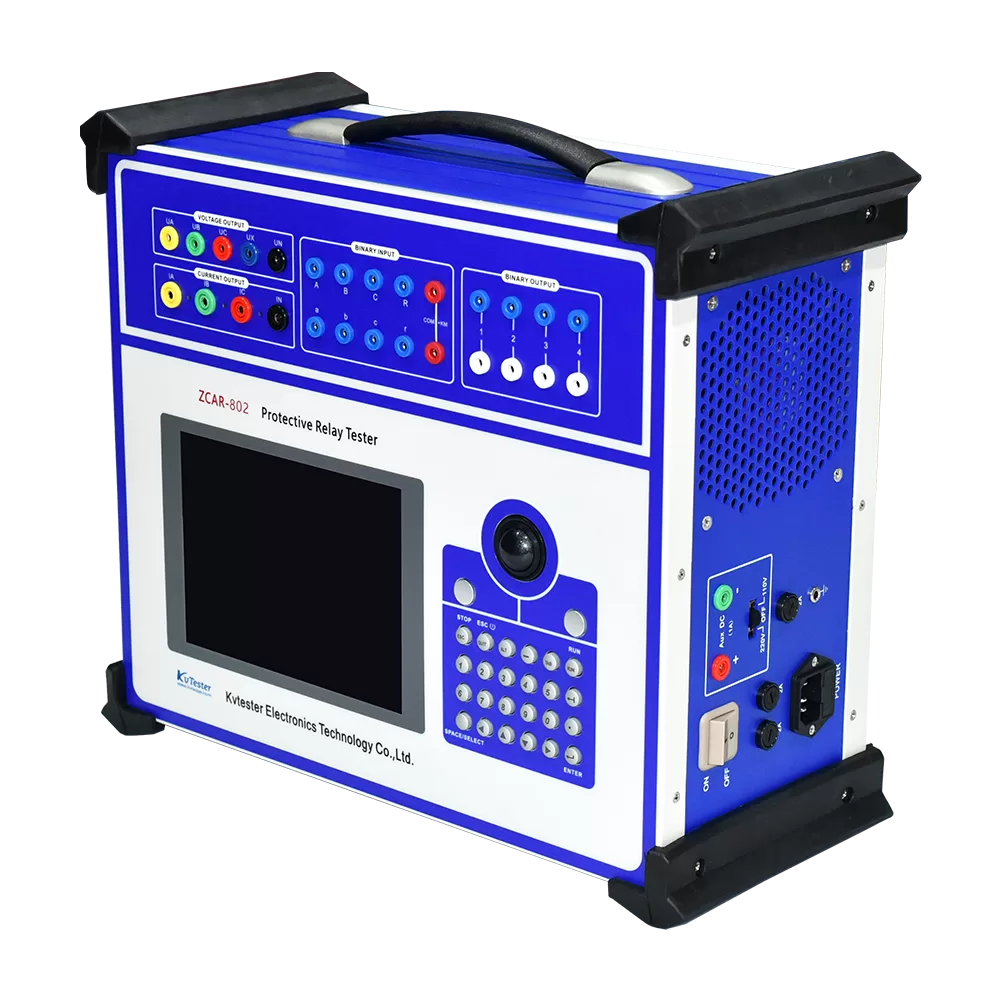

Microcomputer Protective Relay TesterZCAR-802

ZCAR-802 microcomputer relay protection tester is an important test tool to ensure the safety and reliability of power system operation.adopted modern latest new digital technology, high precision electronic parts, micro system with new circuits and new structure.It Can independently complete test of microcomputer protection, relay protection, excitation, measurement, fault recording and other professional fields tests, widely used in electric power, petrochemical, metallurgy, railway, aviation, military and other industries of scientific research, production and electrical test site.

Send inquiry

Parameter

AC current output
DC current output
AC voltage output
DC voltage output
10 path digital input and 8 path digital output

AC current output
Phase current output (effective value)	0~40A, Output Precision 0.2 degree
3 phase parallel current output (effective value)	0~120A
A Long-time Phase current	10A
Maximum output power of Phase current	450VA
Maximum output power of 3 parallel current	900VA
Maximum Permitted work time of 3 parallel current	10S
Frequency range ( fundamental)	0~1000Hz
Harmonic time	0~20

DC current output
Current output	0～±10A / phase, 0～±30A / 3 parallel
Output Precision	0.5 degree

AC voltage output
Phase voltage output (effective value)	0~120V Output Precision 0.2 degree
Line voltage output (effective value)	0~240V
Phase voltage / Line phase output power	80VA / 100VA
Frequency range (fundamental)	0~1000Hz
Harmonic time	0~20

DC voltage output
Phase voltage output range	0～±160V Output Precision 0.5 degree
Line voltage output range	0～±320V
Phase voltage / Line phase output power	70VA / 140VA

10 path digital input and 8 path digital output
Time measuring range	0.1ms ～ 9999s ，accuracy of measurement ＜0.1ms
Volume & weight	400×360×160mm ，15kg
