1.The output up to 6 phase voltage 6 phase current, can be arbitrary combination of conventional 4 phase voltage 3 phase current type, 6 phase voltage type, 6 phase current type, and 12 phase output mode;
2.High performance embedded industrial control computer and 8.4 “large screen high resolution color TFT LCD screen can provide rich and intuitive information, including the current working status of the equipment, the next work tips and various help information.
3. The output terminal adopts high fidelity and high reliability modular linear power amplifier with excellent performance instead of switching power amplifier.High and medium frequency interference will not be produced on the test site, and the waveform smoothing precision from large current to small current is guaranteed.
4.The output part is controlled by DSP, with fast operation, strong real-time digital signal processing ability, wide transmission band and high resolution D/A conversion control.High precision output waveform, low distortion and good linearity.A large number of advanced technology and precision components and materials are adopted, professional structural design makes the device is smart and light, full in function, easy to carry out;
5.Can complete a variety of large complex and high automation calibration work, It can easily test and scan various protection values, fault playback, store test data in real time, display vector images, print reports online, etc.

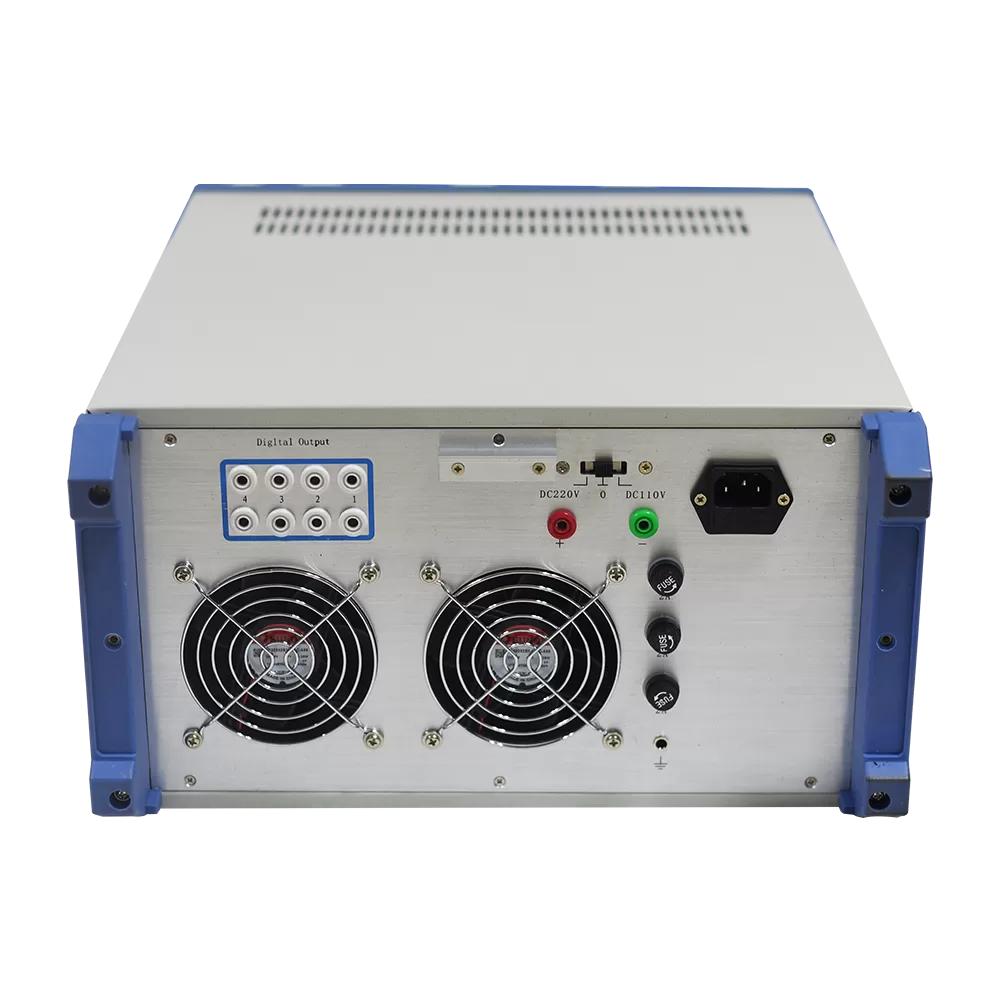

6.An independent 110V and 220V dedicated adjustable dc power supply, convenient for on-site inspection

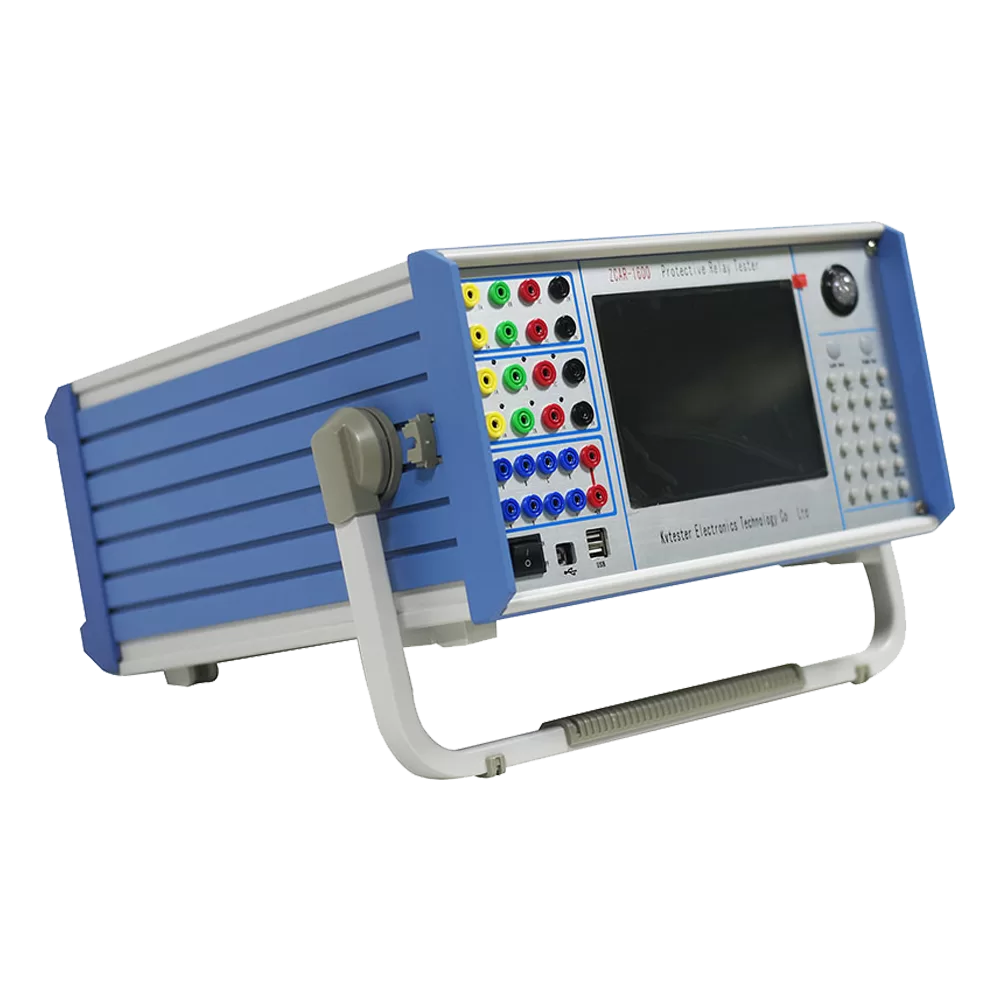

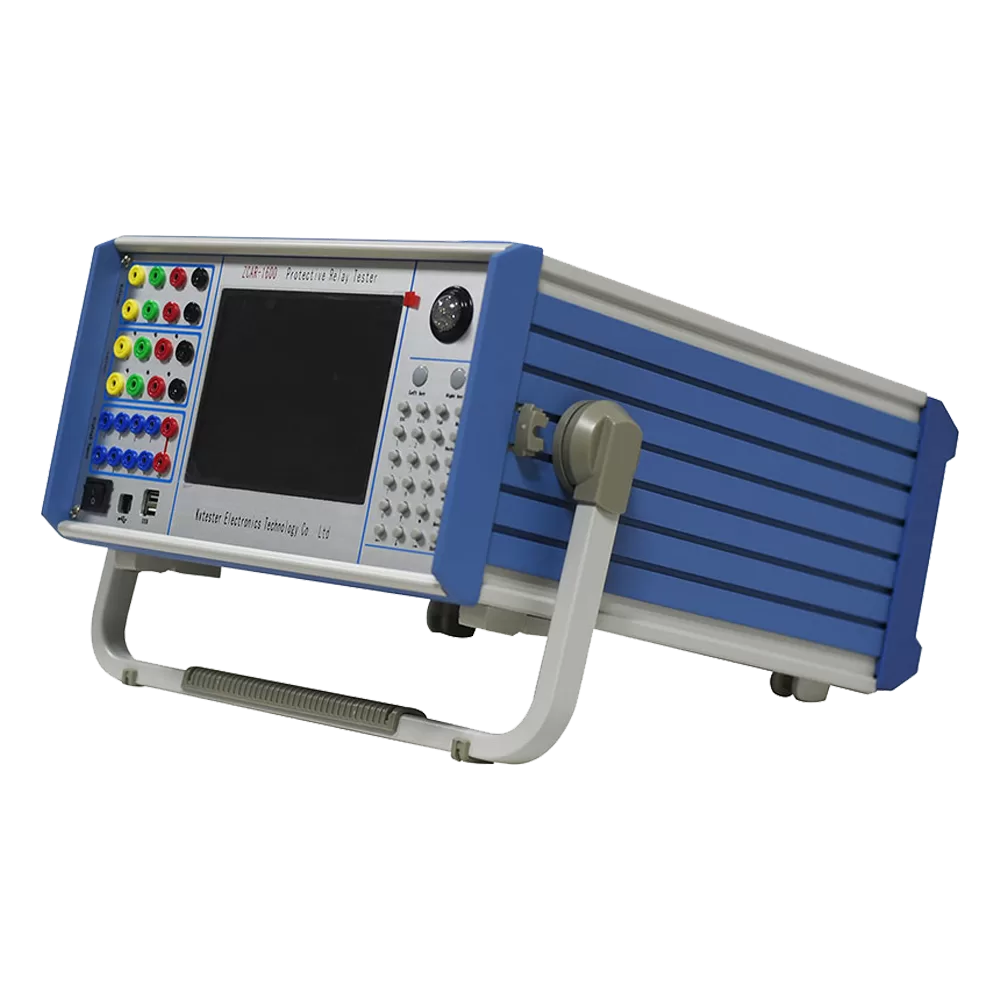

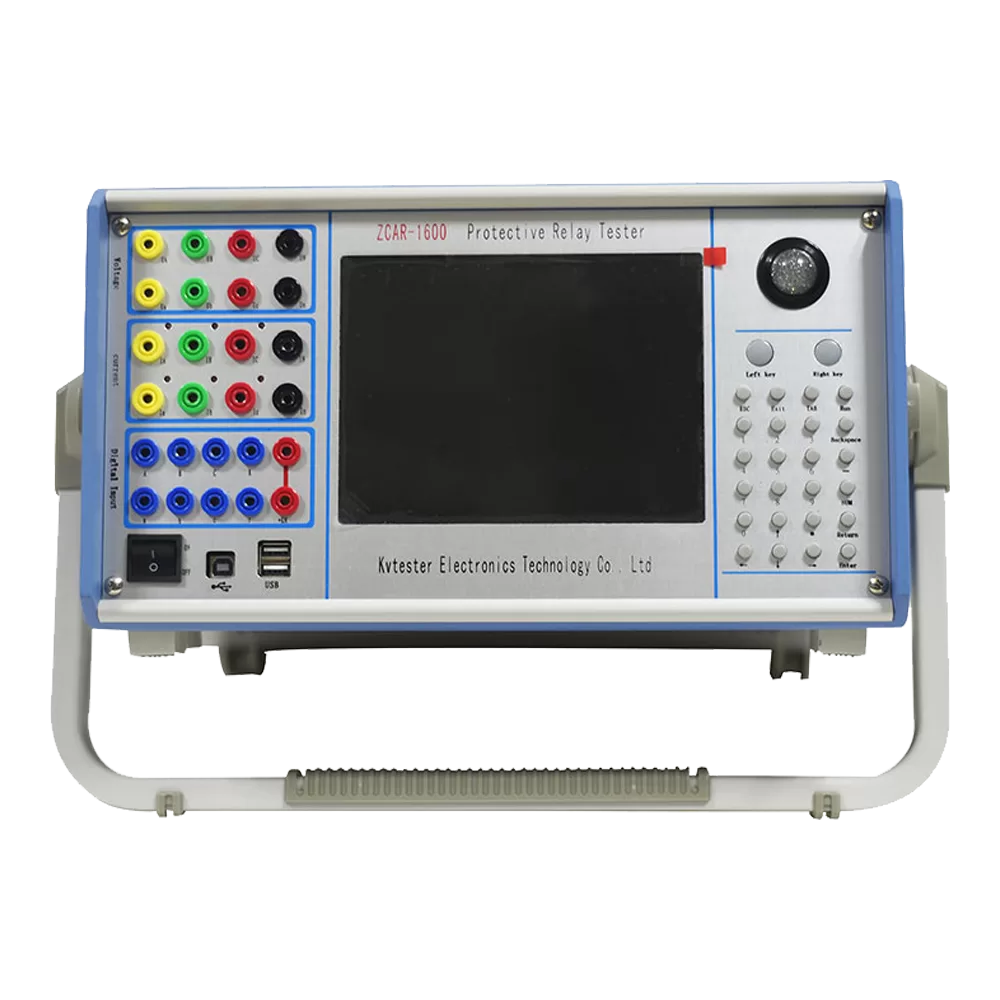

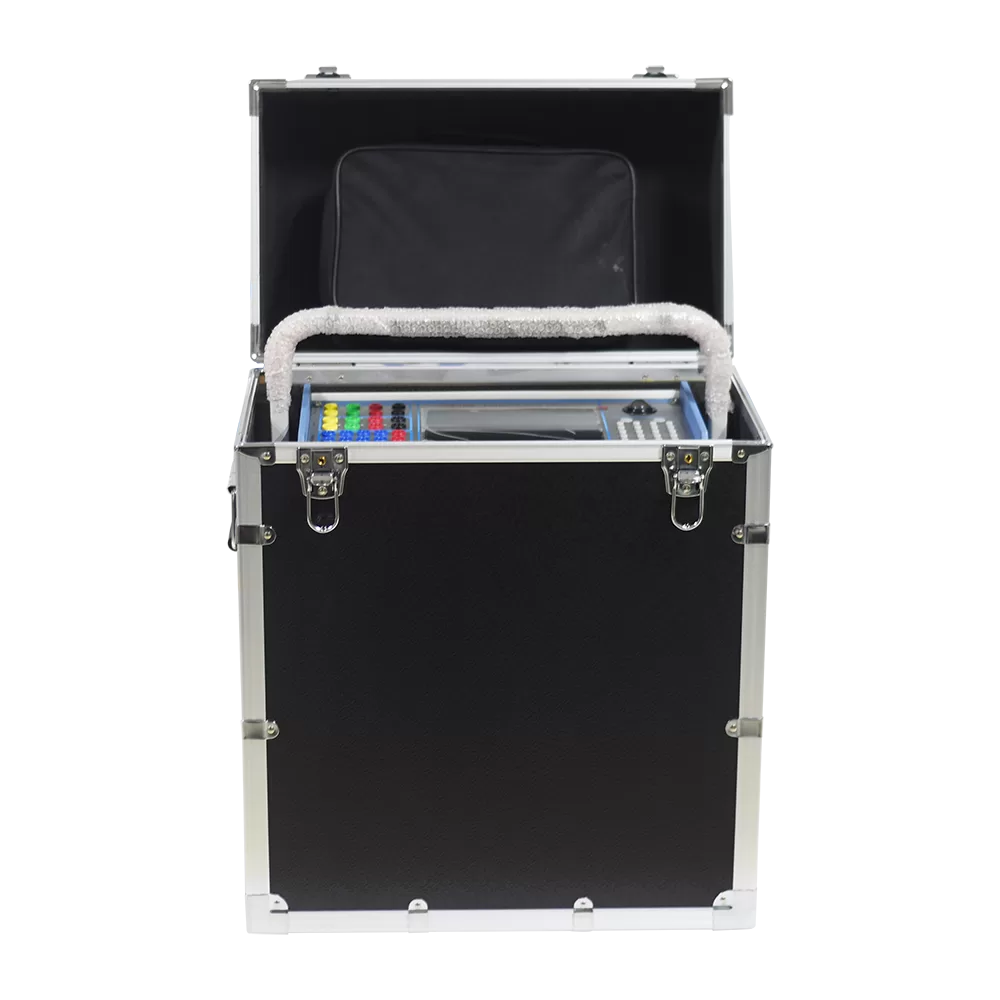

7.The new generation of ZCAR-1600 microcomputer relay protection tester is equipped with 10 channels of input and 8 channels of output, which is convenient for the Self Power Input test.The input contact is compatible with null contact and 0 ~ 250V potential contact , Input contacts are empty contacts Compatible with 0 ~ 250V potential contacts, intelligent automatic identification
8.Provide various automatic test software modules and GPS synchronization trigger test (optional)
9.Can complete all kinds of complex calibration work, can easily test and scan all kinds of protection fixed value, fault playback.It can store test data in real time, display vector pictures, print reports and so on
10.reasonable heat dissipation structure design, reliable hardware protection, soft start function ,fault self – diagnosis and output locking functions
