Features and Advantages
1.Advanced technology: By adopting digital frequency conversion technology and microcomputer control, the test procedures of boosting, voltage reduction, measurement, protection, etc. are fully automated. The instrument has the electronic calendar function, and the time can still be maintained after powering down.
2.Convenient operation: Simple wiring, and fully automatic operation.
3.Comprehensive protection: Multi-protection (over-voltage protection, over-current protection on high- and low-voltage side), rapid action (action time ≤ 20 ms), the instrument is safe and reliable.

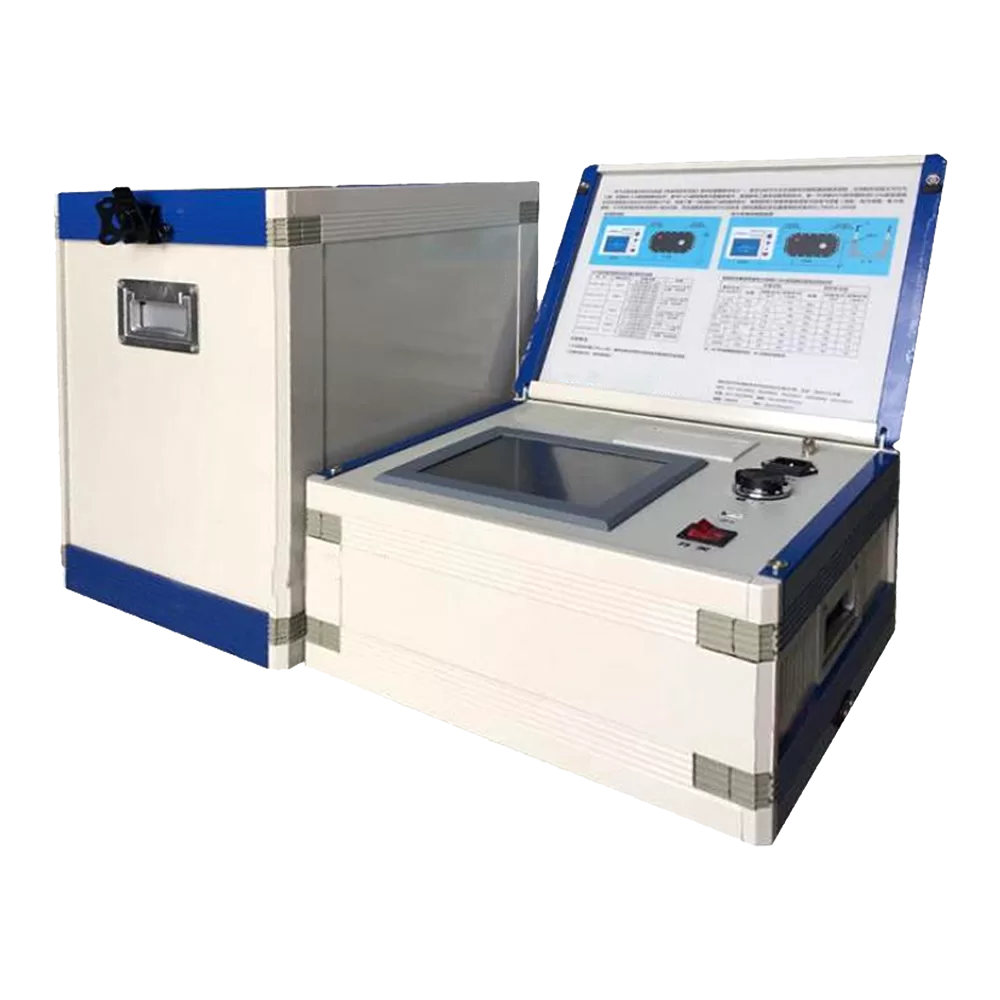

4.Safe and reliable: The controller and the high-voltage generator are in low-voltage connection and under photoelectric control, which are safe and reliable to use.
5.By adopting high- and low-voltage closed-loop negative feedback control circuit, the output has no capacitive rise effect.
6.Complete configuration: 8-inch industrial touch screen, manual storage, and manual printing.
7.The instrument has the data communication function. It can be connected to a computer through a USB port for uploading test data to the computer.
8.The instrument has the help documentation function, through which the directions for use, wiring and notes of the instrument can be known without viewing the instruction book.
9.The instrument has the system setting function, through which the current time can be modified.
10.Large test range: Multi-frequency selection of 0.1Hz, 0.05Hz and 0.02Hz, a large test ange.

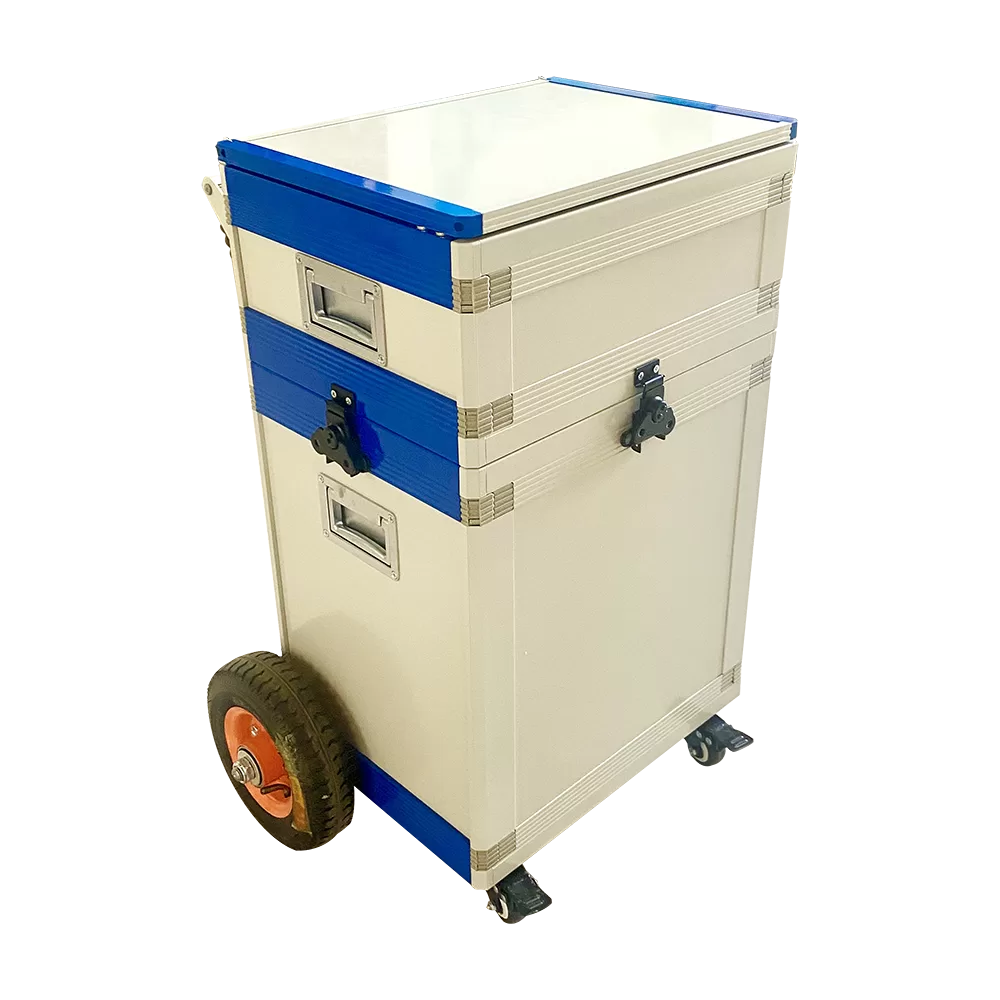

11.Small size and light weight: Very conducive to outdoor operations.
Parameter
| Main technical parameters of ultra-low frequency and high voltage generator | |||
| Peak Voltage | Measuring Range | Weight | Purpose |
| 30kV | ≤1.1μF @ 0.1Hz | Controller: 4kg Booster: 25kg | Cables, generators with voltage of 10kV and below |
| ≤2.2μF @ 0.05Hz | |||
| ≤5.5μF @ 0.02Hz | |||
| 50kV | ≤1.5μF @ 0.1Hz | Controller: 5kg Booster: 35kg | Cables, generators with voltage of 20kV and below |
| ≤3.0μF @ 0.05Hz | |||
| ≤7.5μF @ 0.02Hz | |||
| Power supply | 220V ± 10%, 50 ± 5% Hz | ||
| Note: If a portable generator is used for power supply, it is required that the output voltage and frequency of the generator be stable (generally requiring a power greater than 3kW, a frequency of 50Hz, and a voltage of 220V ± 5%). Otherwise, some auxiliary measures should be used to stabilize the generator output | |||
| Output voltage accuracy | Output high voltage peak instability | ≤ 1% | |
| Output voltage frequency instability | ≤ 3% | ||
| Output voltage waveform distortion rate | ≤ 5% | ||
| Operating environment | temperature -100C~+400C, humidity ≤ 85% RH | ||
