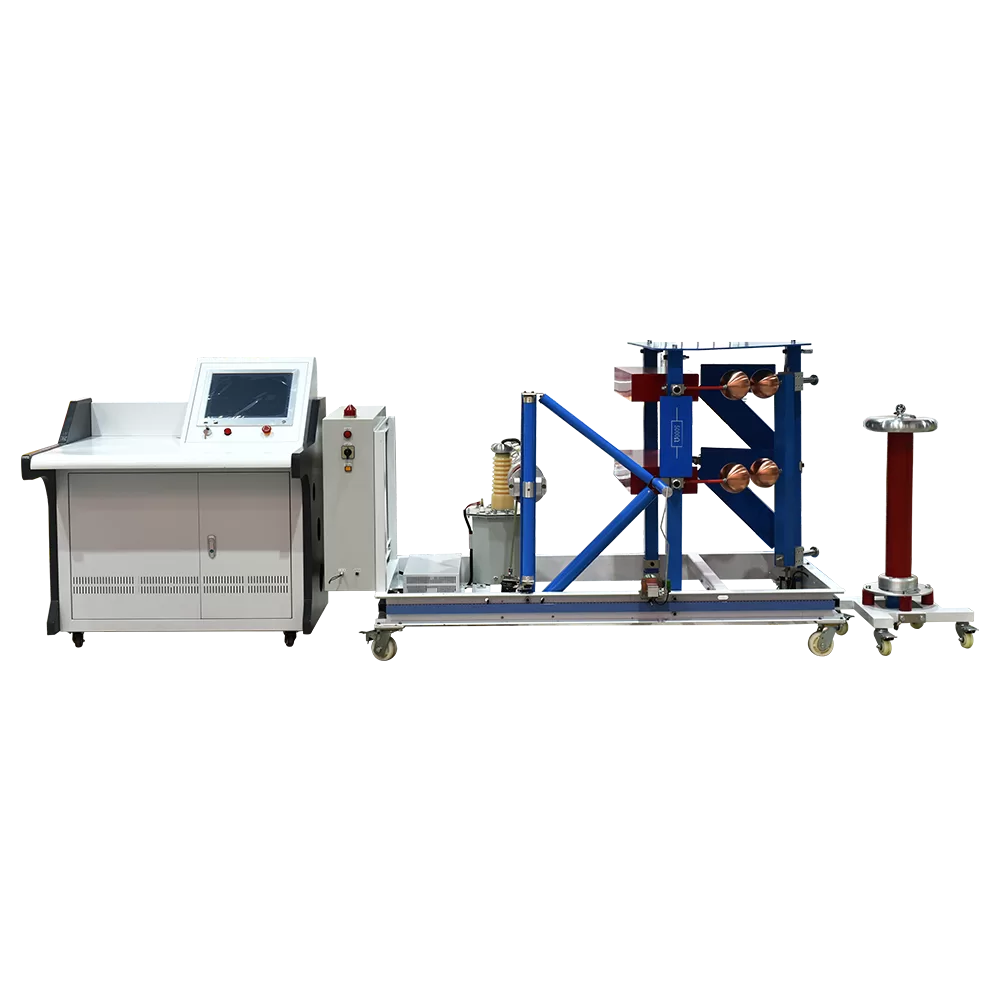

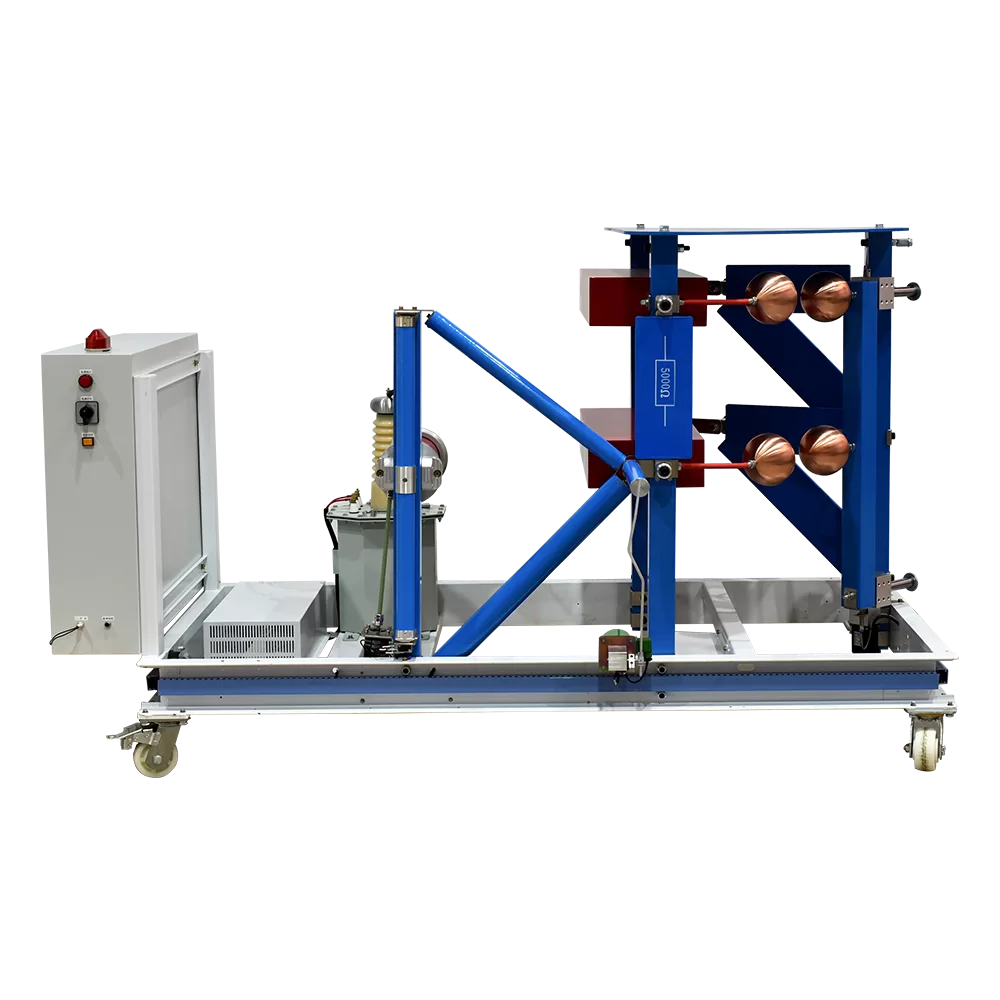

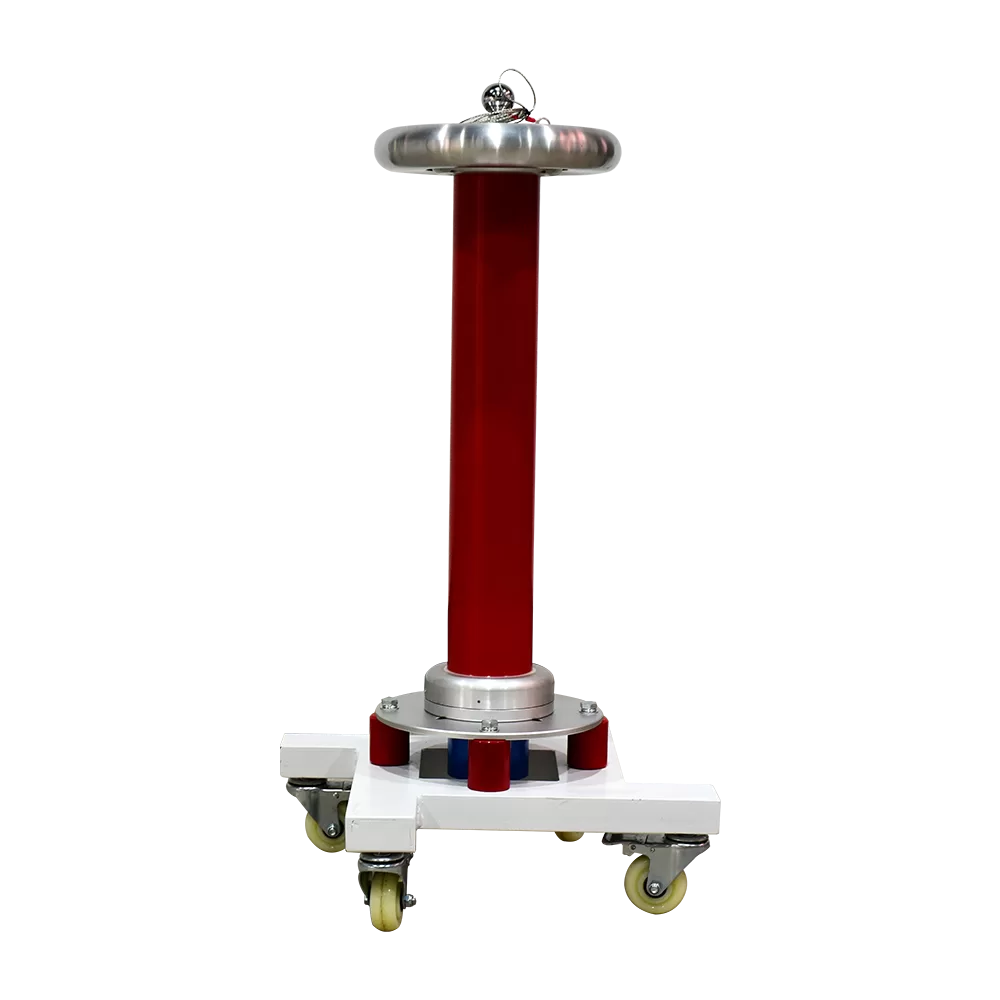

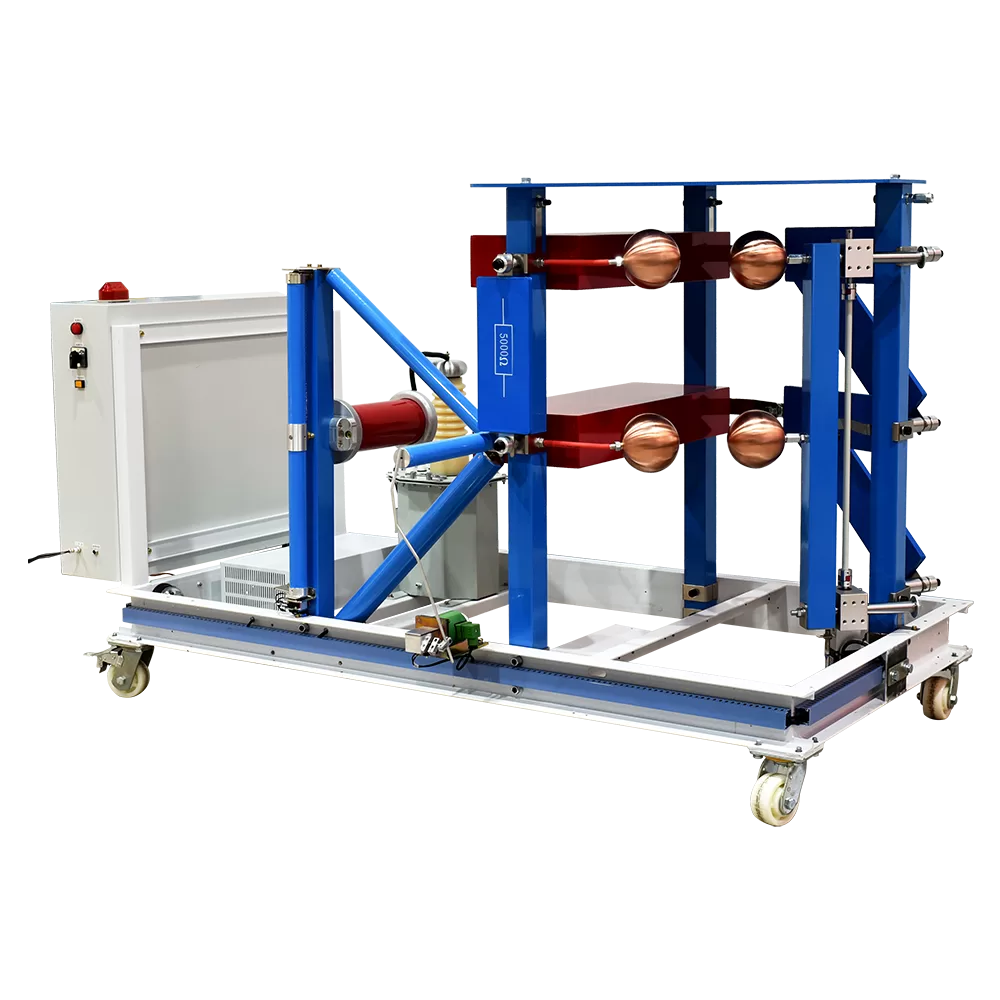

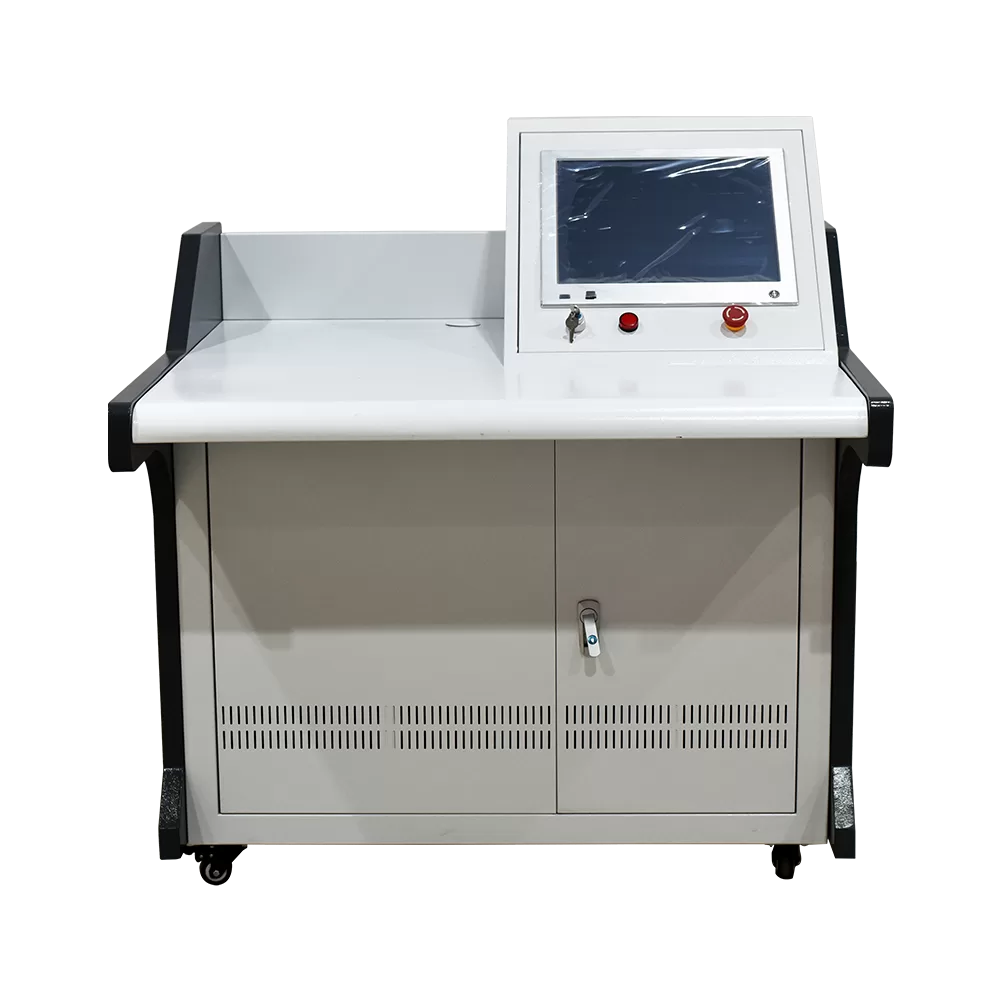

Lighting Impulse Test DeviceZC-521-800kV/80kJ

The impact digital acquisition and measurement system software has the following functions and features:
1.The software opens different windows based on different operations, making it easy to operate;
2.The simple automatic setting function of the oscilloscope provides convenience for ordinary users;
3.Can obtain and save various transient waveforms from high-voltage impact tests (and other similar tests), and can compress, expand, and move waveforms freely in the waveform display window;
4.It can measure the main parameters of various waveforms such as lightning full wave, lightning cutoff wave, steep wave, operation wave, transformer operation wave, residual voltage wave of lightning protection devices, impulse current square wave, impulse current index wave, and transformer damage waveform, such as peak voltage/current, wave head time, wave tail time, cutoff time, rise/fall time, 10% (or 90%) pulse width, anti peak coefficient, etc., and pass the assessment of IEC1083-2;
5.The waveform formation chart function can convert the waveform displayed in the current waveform display window into a JPG format graphic file;
6.Dual time base function;
7.Polarity automatic switching function;
8.The waveform annotation function can insert user annotations on the waveform data and graphics.
9.The test recording function can automatically generate test records while the user saves the waveform.
10.The printing function of the software can directly send the waveform displayed in the waveform window to the printer for printing.
