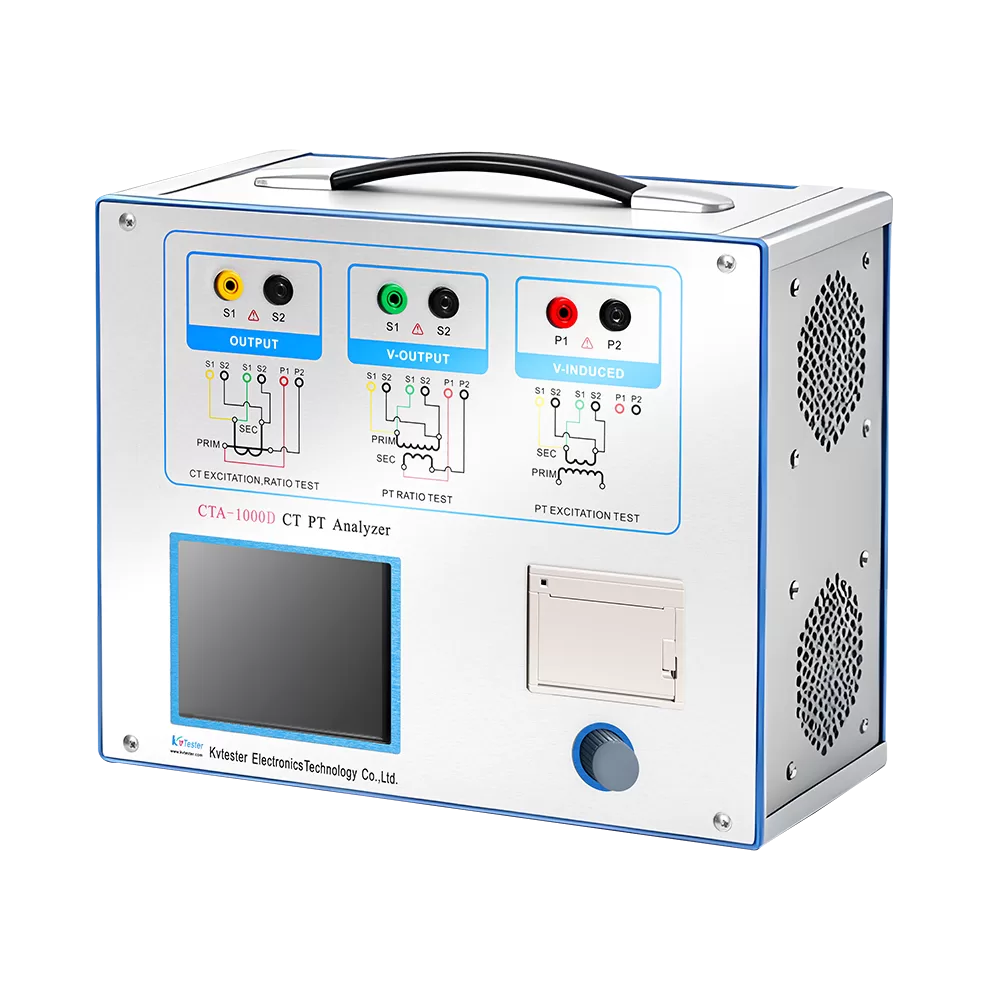

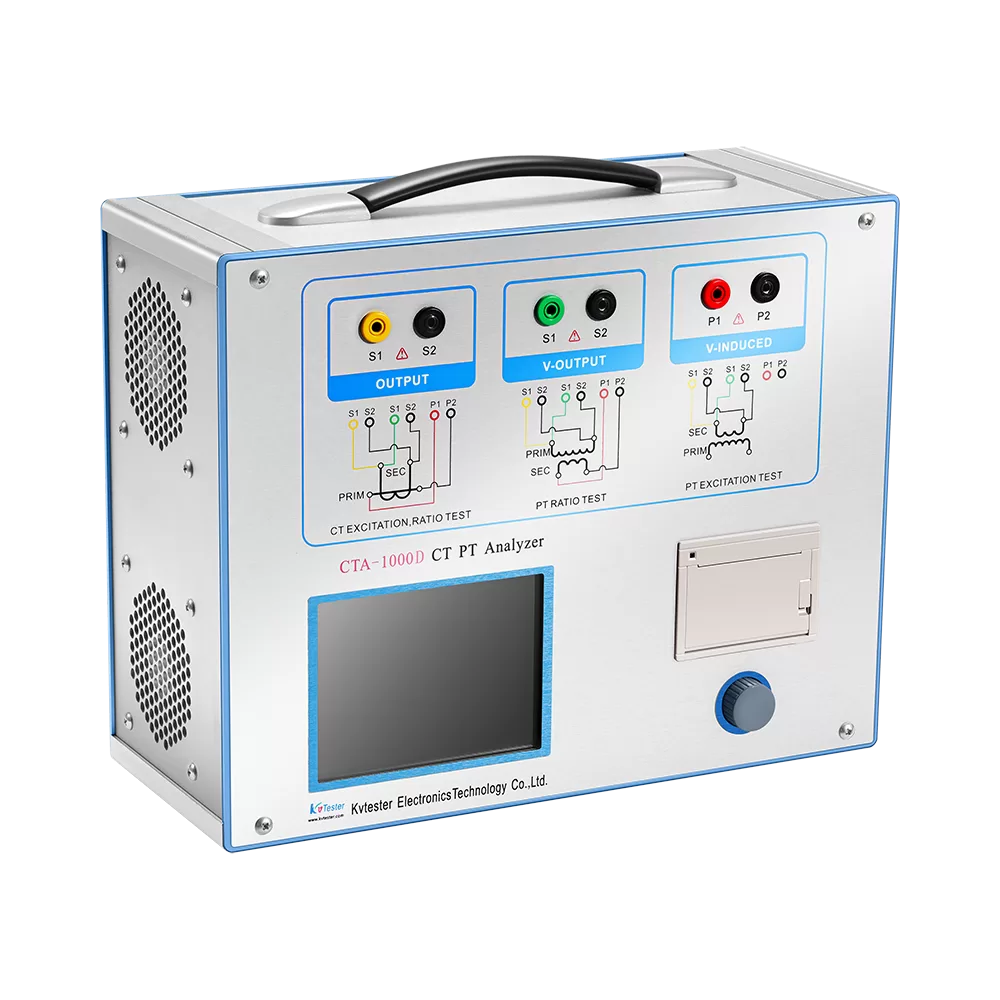

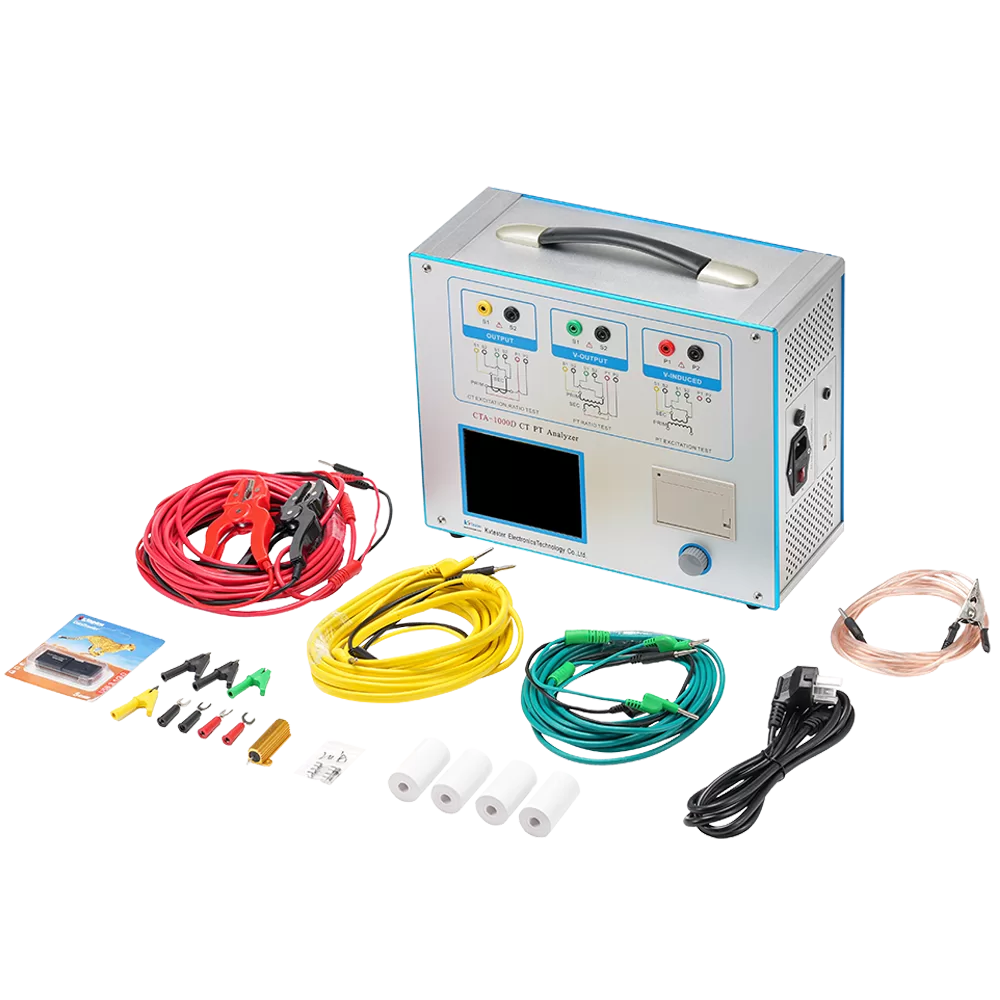

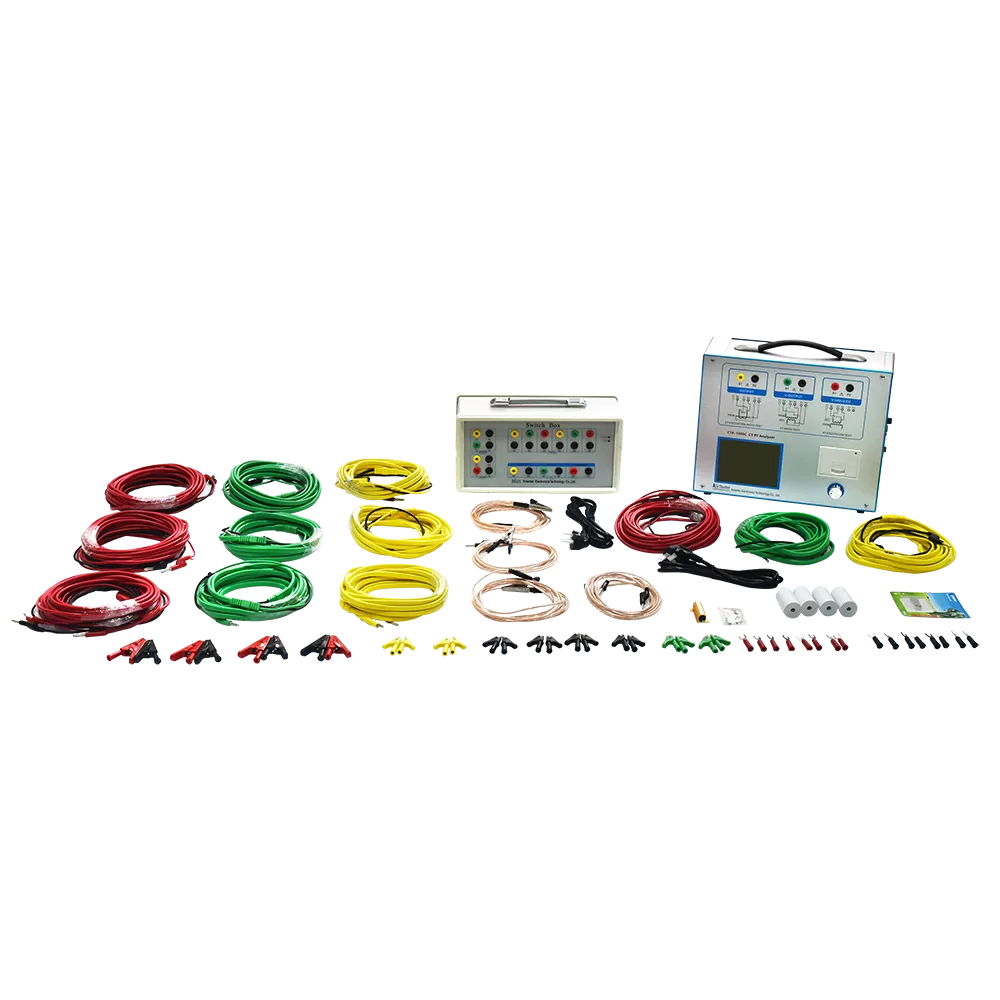

CT/PT AnalyzerCTA-1000D

CTA-1000 Series CT Analyzer automatically determines all relevant current transformer values and compares the results with the selected standard, include excitation data, saturation inflection point, remanence coefficient， accuracy limit overcurrent factor, ratio and error data. The device evaluates the current transformer as per the IEC or IEEE standard within seconds with the push of a button.
CT Analyzer facilitates fast and economical on-site testing and calibration of metering and protection current transformers. Manufacturers of current transformers, high voltage transformers and switchgear also use the CT Analyzer for tests during development and production.

Send inquiry

Features and Advantages

Product Features

1. Easy to use. The CT Analyzer allows all types of single and multi-ratio current transformers to be tested, and it evaluates the current transformer within seconds with the push of a button;

2. Highest measurement accuracy: 0.02% / 2 min when calibrating on site;

3. Automatic evaluation according to IEC and IEEE standards;

4. CT analyzer debugging time is short (automatic test duration <2 minutes);

5. Excellent workplace safety – Tests run at max. 180V;

6. Very small and lightweight (＜9kg/19.8lbs), easy to transport for on-site testing;

7. The CT analyzer has a professional pull box design that is easy to carry and resistant to vibration.

Wide range of measurements

Current Transformer (CT)		Voltage Transformer (PT)
CT ratio and phase-angle accuracy		PT excitation and saturation
CT accuracy for different burdens		Burden impedance
CT winding resistance		PT polarity
CT inductance (saturated and unsaturated)		Winding resistance Saturated and non-saturated inductance
CT excitation characteristics
ALF and FS (direct and indirect) Burden impedance
CT residual magnetism

Applications

The following values can be determined using the CT/PT Analyzer:
1. CT:
(1) Accuracy of the ratio and phase angle, taking into consideration the nominal burden and connected burden
(2) CT excitation and saturation
(3) Burden impedance
(4) Winding resistance Saturated and non-saturated inductance
(5) CT polarity
2. PT:
(1) PT excitation and saturation
(2) Burden impedance
(3) Winding resistance Saturated and non-saturated inductance
(4) PT polarity

Parameter

CT Analyzer

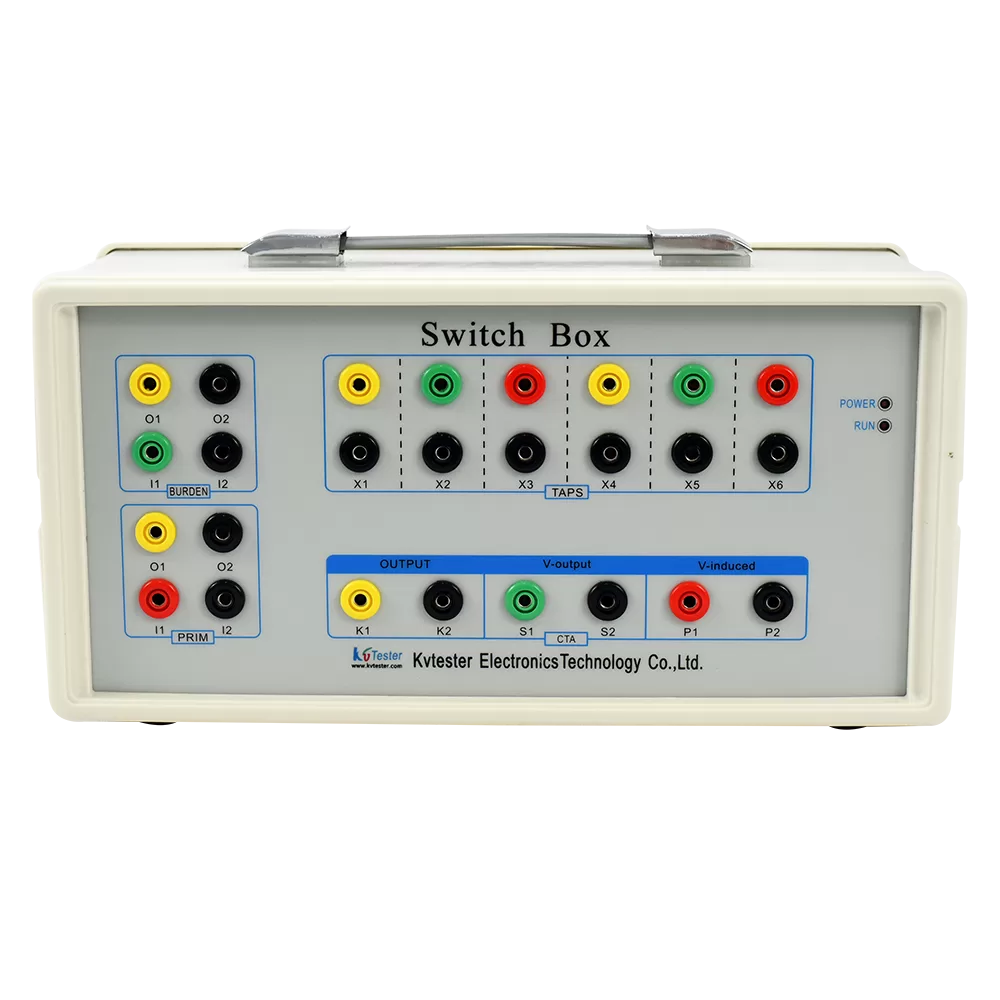

Switch Box

Accuracy
Ratio 1 … 2000	error 0.02 % (typical) / 0.05 % (guaranteed)
Ratio 2000 … 5000	error 0.03 % (typical) / 0.1 % (guaranteed)
Ratio 5000 … 10000	error 0.05 % (typical) / 0.2 % (guaranteed)
Output
Output voltage	0 … 120 V
Output current	0 … 5 Aeff (15 Apeak)
Output power	0 … 400 VAeff (1500 VApeak)
Phase displacement
Resolution	0.01 min
Accuracy	1 min (typical) / 3 min (guaranteed)
Winding resistance
Resolution	1 mΩ
Accuracy	0.05 % (typical) / 0.1 % + 1 mΩ (guaranteed)
Power supply
Input voltage	110 VAC/ 220 VAC
Permissible input voltage	85VAC…264VAC
Frequency	50 / 60 Hz
Permissible frequency	45 Hz … 65 Hz
Input power	1800 VA
Connection	Standard AC Socket IEC 60320
Mechanical data
Size (W × H × D)	370 × 320 × 170 mm
Weight	9 kg (without accessories)
Environmental conditions
Operating temperature	-10 °C … + 50 °C / 14 °F … 122 °F
Storage temperature	-25 °C … + 70 °C / -13 °F … 158 °F
Humidity	Relative humidity 5%…95% not condensing
Certificates from independent test institutes
Wuhan HV Research Test Report
