ZC-200 5000kVA / 33kV Product Overview
ZC-200 5000kVA / 33kV Transformer Comprehensive Test Bench
Designed for comprehensive factory and routine testing of power transformers and distribution transformers up to 5000kVA / 33kV. -
ZC-200 5000kVA / 22kV Product Overview
ZC-200 5000kVA / 22kV Transformer Comprehensive Test System
Integrated transformer test system for manufacturers and maintenance departments requiring automated transformer testing and reliable data acquisition. -
ZC-200 2500kVA-10kV-35kV Product Overview
ZC-200 2500kVA-10kV-35kV Transformer Test Control Desk
Automatic transformer test bench for medium-capacity distribution transformer production and quality inspection. -
ZC-200 630kVA / 10kV Product Overview
ZC-200 630kVA / 10kV Transformer Test System
Compact transformer test system for small and medium distribution transformer testing applications.
Why Choose ZC-200 Transformer Comprehensive Test Bench?
Kvtester Electronics Technology Co., Ltd. is a leading and high-tech enterprise specializing in the R&D,
manufacturing, and sales of power testing equipment and measurement instruments.
manufacturing, and sales of power testing equipment and measurement instruments.
-
01
Comprehensive Test Capability
Supports no-load test, load test, induced withstand voltage test, power frequency withstand voltage test and temperature rise test for power transformers and distribution transformers.
-
02
Digital Synchronous Sampling
Voltage, current, power and other test data are synchronously sampled by the microcontroller, reducing errors caused by separate meter readings and manual calculation.
-
03
Suitable for 5000kVA / 33kV Transformers
Designed for factory testing and routine testing of three-phase transformers with capacity up to 5000kVA and voltage class up to 33kV / 36.2kV.
-
04
Customizable Test Bench Configuration
The system can be configured according to transformer capacity, voltage level, test items, factory layout and customer testing standards.
Transformer Test Bench Working Principle and Test Flow
The ZC-200 transformer test bench integrates control, power supply, measurement and data acquisition functions to complete transformer routine tests safely and efficiently.
-
Connect Transformer and Test Circuit
Connect the tested power transformer or distribution transformer according to the selected test item, such as no-load test, load test or withstand voltage test.01 -
Select Test Item and Parameters
Set transformer capacity, voltage level, test voltage, current range and required test procedure through the control and measurement system.02 -
Run Test and Collect Data
The system outputs the required test voltage or current and synchronously samples voltage, current, power and power factor data.03 -
Generate Test Results
The measured data is calculated and displayed digitally, helping operators reduce manual calculation errors and improve test efficiency.04
ZC-200 Transformer
Test Bench Test Functions
-
Transformer no-load loss and no-load current test
-
Transformer load loss and short-circuit impedance test
-
Induced withstand voltage test
-
Power frequency withstand voltage test
-
Temperature rise test
-
Voltage, current and power measurement
-
Power factor measurement
-
Digital display and synchronized data acquisition
-
Factory routine test for power transformers
-
Distribution transformer production inspection
-
Custom transformer test system configuration
Application Scenarios
-
Transformer Manufacturing Factory
-
Transformer Repair Workshop
-

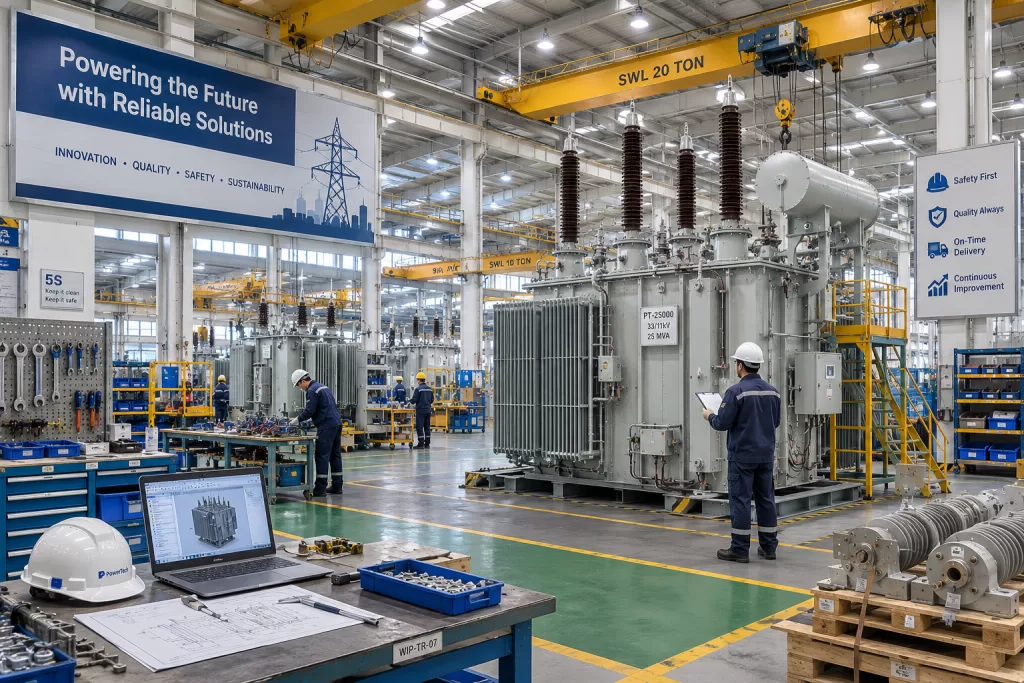

Power Equipment Manufacturer
-
Third-Party Testing Laboratory
-

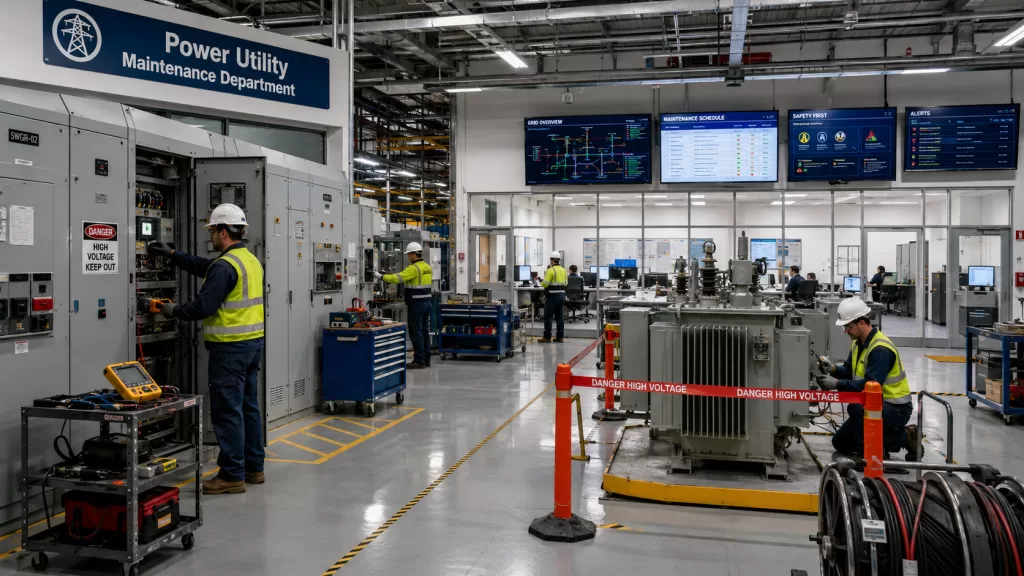

Power Utility Maintenance Department
-
Transformer R&D and Quality Control Center
ZC-200 Transformer Test Bench Specifications
Key technical parameters for engineers and purchasing teams evaluating transformer test bench equipment.
| Item | Technical Parameter |
| Product Model | ZC-200 Transformer Comprehensive Test Bench |
| Applicable Transformer | Power transformers and distribution transformers |
| Maximum Tested Transformer Capacity | 5000kVA |
| Applicable Voltage Class | 33kV / 36.2kV class and below |
| Voltage Measurement Range | 0–15kV |
| Voltage Measurement Accuracy | ±(0.2% reading + 0.1% range) |
| Current Measurement Range | 0–200A |
| Current Measurement Accuracy | ±(0.2% reading + 0.1% range) |
| Power Measurement | U × I |
| Power Measurement Accuracy | ±(0.2% reading + 0.1% range) |
| Power Factor Range | 0.01–1.00 |
| Power Factor Accuracy | ±3 digits |
| Power Supply | AC 380V ±10%, 50Hz ±2% |
| Induced Withstand Voltage Rated Output | 800V, 180Hz |
| Main Test Items | No-load test, load test, induced withstand voltage test, power frequency withstand voltage test, temperature rise test |
| Application | Factory testing, routine testing, transformer production and maintenance |
Inquiry Workflow
Simple process from transformer test requirements to technical proposal and quotation.
-
01Submit Transformer Test Requirements
Share your transformer capacity, voltage level, test items, power supply conditions, factory layout and applicable standards.
-
02Get Configuration Confirmation
KVTESTER engineers confirm the transformer test bench configuration, measuring range, control system, accessories and optional functions.
-
03Receive Quotation and Technical Proposal
Get detailed quotation, technical proposal, delivery time, installation guidance and after-sales support information.
Looking for a Transformer Test Bench for Factory Testing?
The ZC-200 transformer comprehensive test bench helps transformer manufacturers and testing organizations complete no-load, load, withstand voltage and temperature rise tests with accurate digital measurement and reliable operation. Contact KVTESTER to get a customized transformer test bench proposal for your capacity and voltage level.
