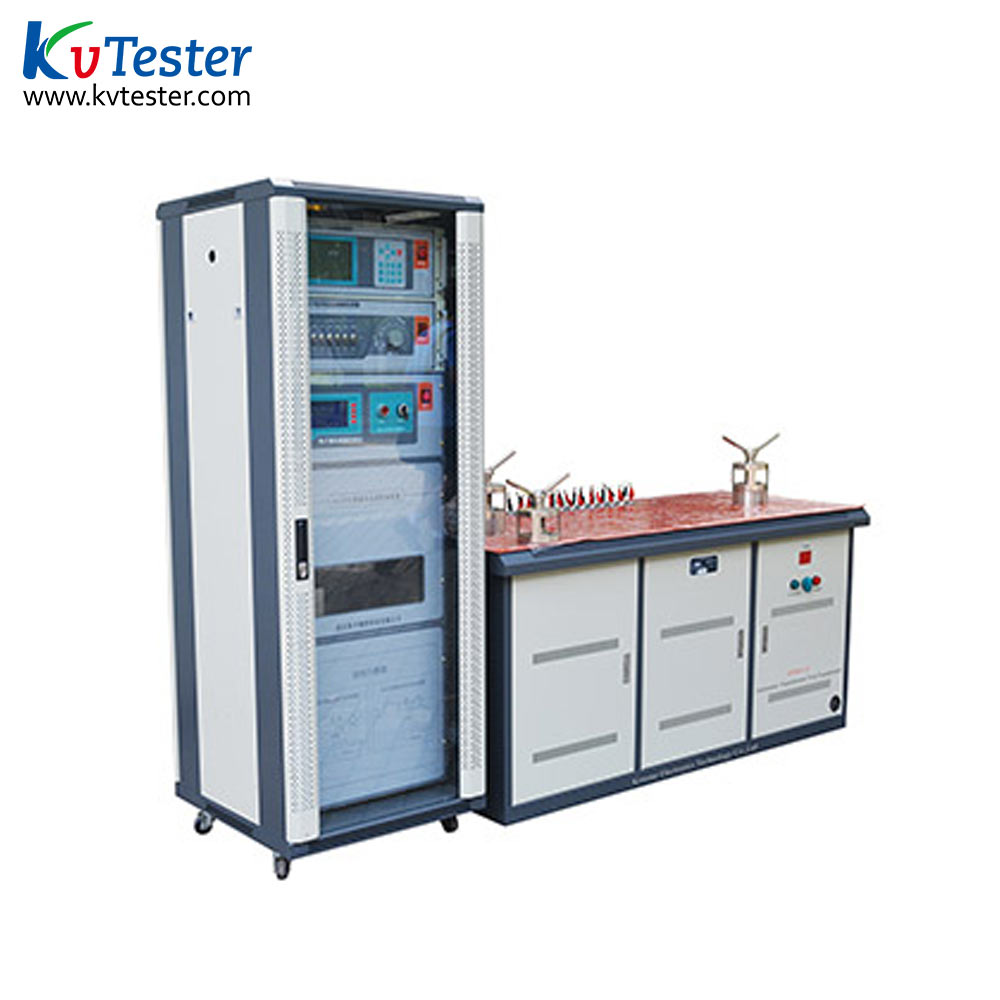

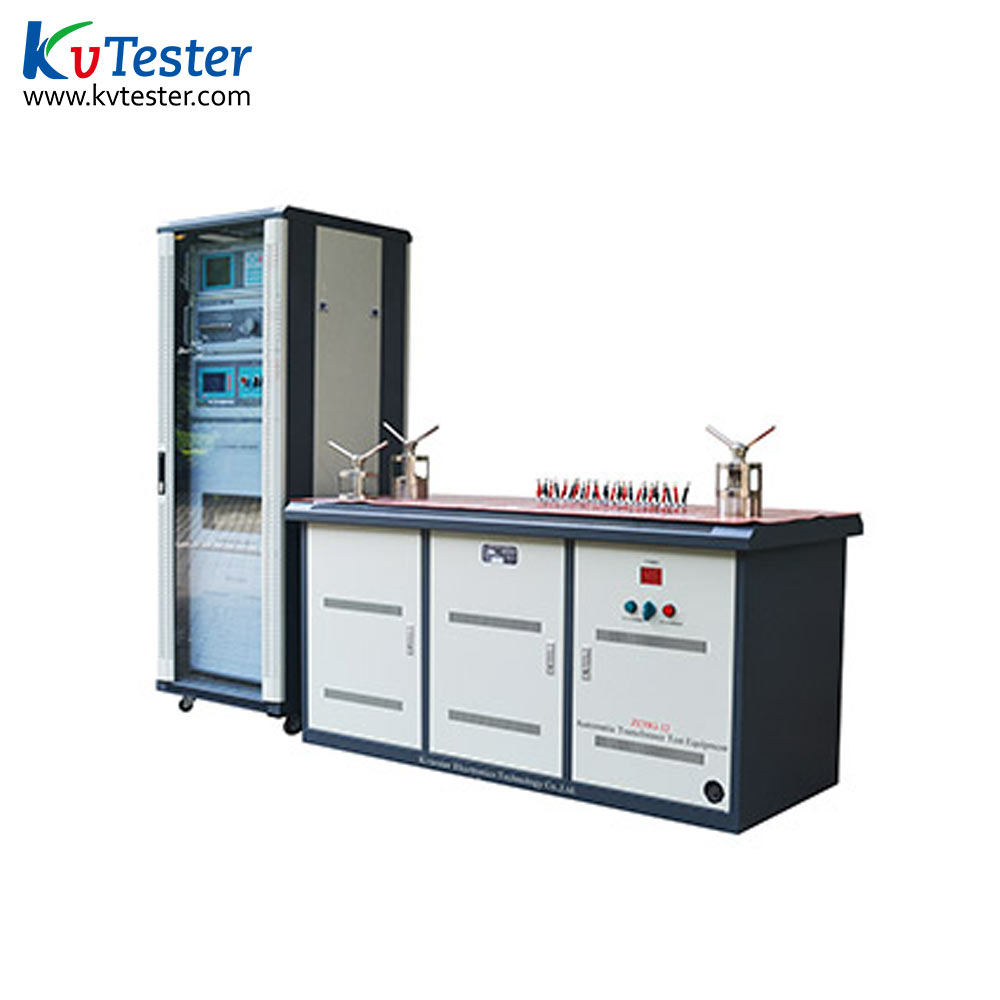

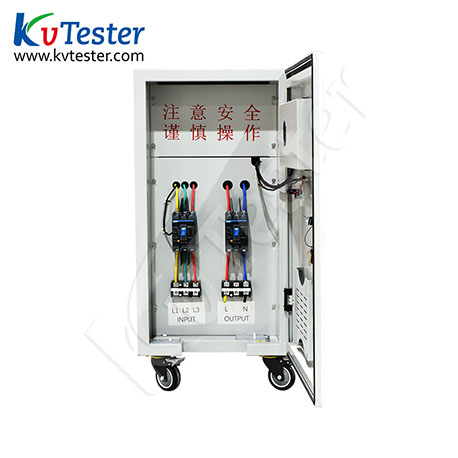

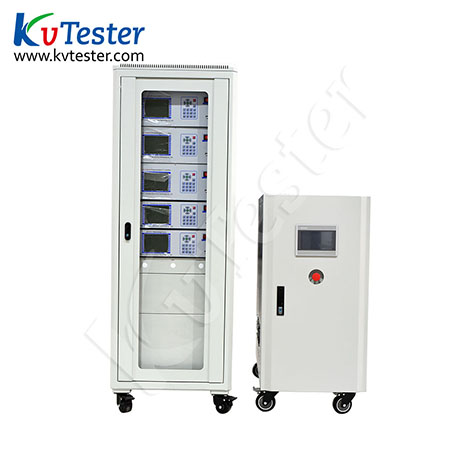

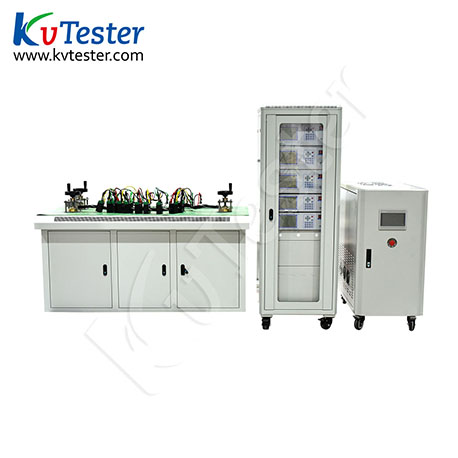

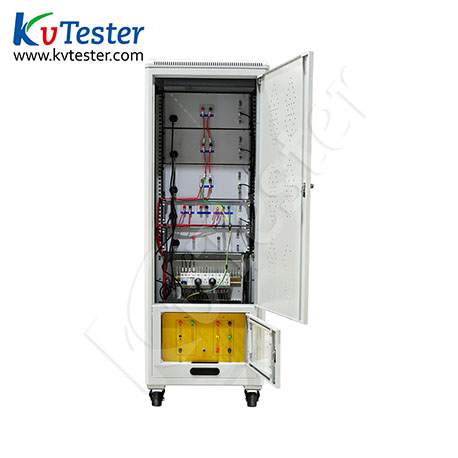

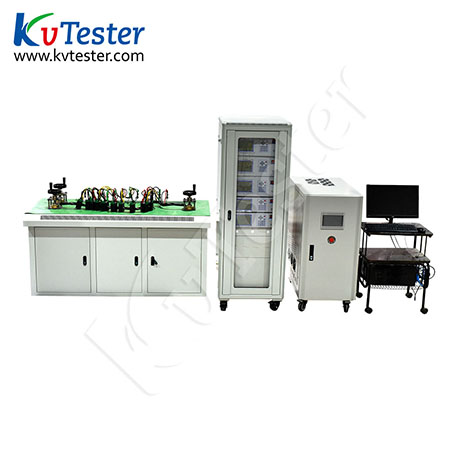

Automatic Transformer Test Equipment

type:ZCHG-12
Online Service
  • Product Introduction

This Automatic Transformer Test Equipment can finish accuracy test / error calibrating automatically for transformer . It based on principle of newest virtual Instruments design, users just need operate the virtual interface by using the mouse and keyboard, input the transformer type, measurement range, precision class, capacity, power factor, can finish the transformer test, analyze, calculate and manage the test results, and print all kinds of records and certificates according users requirements. This is the ideal equipment for transformer manufacturer and  meteringt test center .

  • Product Parameters
System Technical Parameters
Input VoltageAC 400V, 50Hz, Three phase four wire
Input CurrentAC 0-50A
Rated Capacity30kVA
Test FunctionsCT Accuracy Test, CT Demagnetization Function, CT Inter-turn Insulation Test, CT Polarity check
Test methodComputer controlled automatic test
CT Demagnetization FunctionProvided the open-circuit & closed-circuit demagnetization
Protection functionProvided overcurrent & overvoltage protection
CT Rated Primary Current5~5000A
CT Rated Secondary Current1A, 5A
Standard CT accuracy0.01S class
Standards ComplianceIEC61869-1, IEC61869-2

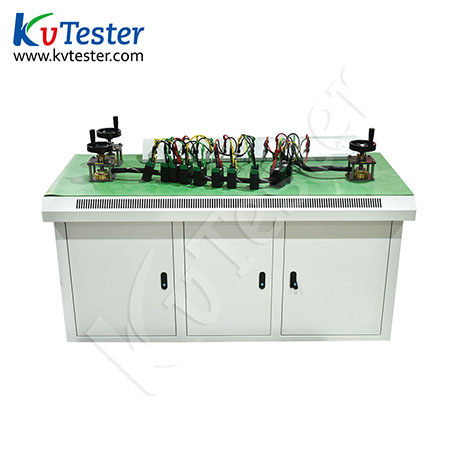

Test Bench Parameters
Input VoltageAC 400V, 50Hz, Three phase four wire
Input CurrentAC 0-50A
Rated Capacity30kVA
Output VoltageAC 0-420V
Output CurrentAC 0-75A
Output Voltage AdjustmentProvided the Coarse adjustment & Fine adjustment automatically
Voltage Adjustment ModelControlled by computer & tester automatically
Maximum number of CT objects12 CTs at one time
Protection functionProvided overcurrent & overvoltage protection
Embedded equipmentZC-103A Transformer Tester, ZC-113B CT Burden Computer etc.
Output Test ResultDisplay on tester and Word report on computer
The Bench StructureHorizontal structure
Color of the Bench7035 Gray


  • Product Features
    1. With the functions of measurement, controlling , display by using single clip.
    2. With PC interface, improve the office automation level, reduce the labor intensity.
    3. With LCD, provide friendly operation interface and rich measurement information.
    4. Can auto measure the transformer, auto switch the current, voltage load box.
    5. Can inform the users the error information in time.
    6. Reaching Standard Class 2
    7. The transformation ratio of the standard instrument transformer and calibrated instrument transformer doesn't have to be equal. We can test directly once the rated primary voltage or current of the calibrated transformer is not bigger than that of the standard transformer. And it's easy to operate.
