Salt Density Tester

type:ZC-810
Online Service
  • Product Introduction

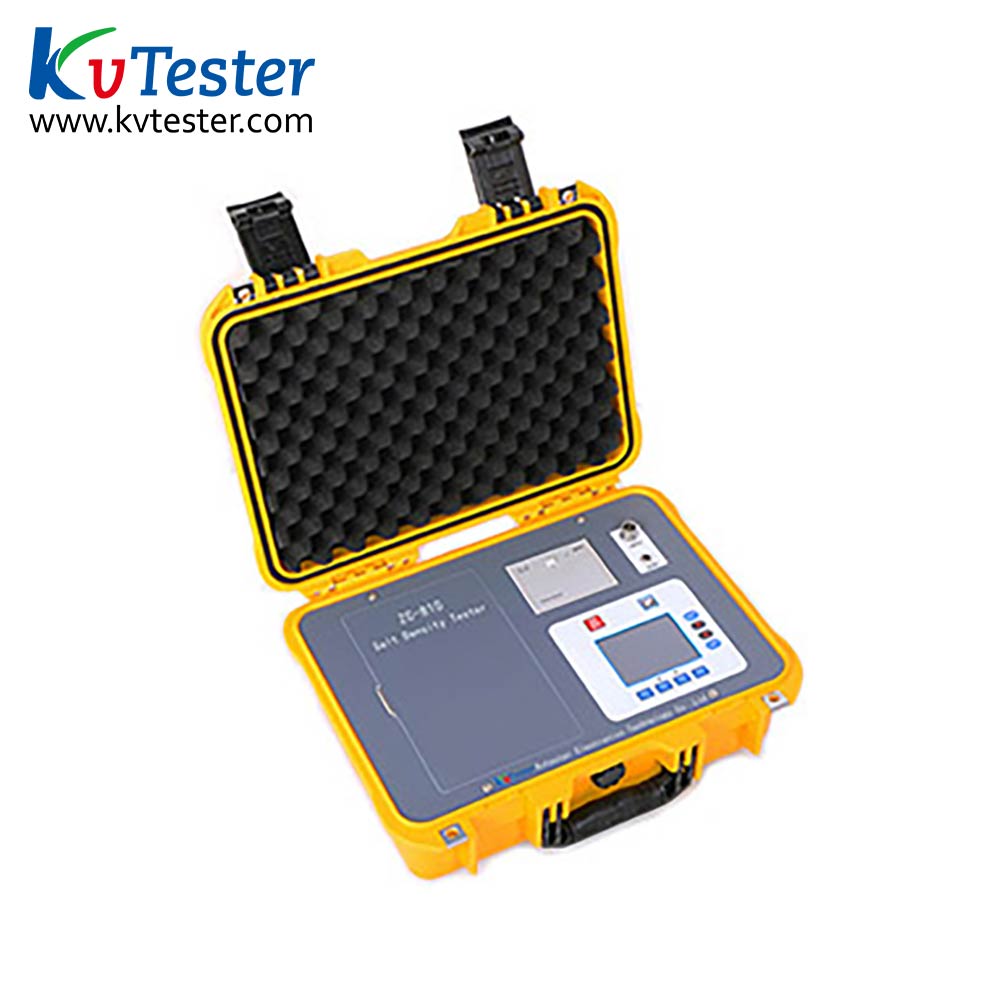

        This product special designed for salt density tests, system built-in insulator equivalence salt density formula, directly reading. Using rotating mouse, easy to operate, with micro-printer, convenient to store and compare test results. LCD display, all parameters and test results directly displayed. Built-in high capacity rechargeable lithium battery, convenient for field tests.

  • Product Parameters
Working power supply AC220V, 50Hz
Instrument power 50W
Instrument accuracy 0.2
Pressure calibration range 0~1MPa
Pressure verification resolution 0.001MPa
Temperature measurement range -20 °C ~ 80 °C
Temperature measurement resolution 0.1°C
Working humidity ≤90%RH


  • Product Features
    1. Automatic range switching function;
    2. Wide measurement range, salt density measurement range: 0.0001mg/cm2~ 9.9999mg/cm2
    3. Automatic temperature compensation, it can directly display of the standard electrical conductivity and the equivalent of 20℃ (ESDD).
    4. The use of electrical conductivity is greater than 10 s/cm of the cleaning solution, with automatic cleaning solution to remove their own conductivity and the original salt content, reducing the requirements of the cleaning fluid;
    5. The salt density (ESDD) of the non charged measurement is converted to the salt density (ESDD) by means of the charge correction factor;
    6. With storage, printing, data upload and other functions, and can store 400 sets of data;
    7. Built in high-capacity rechargeable lithium battery, suitable for field use.
