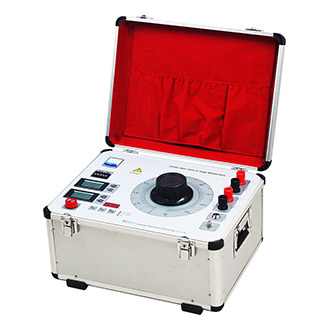

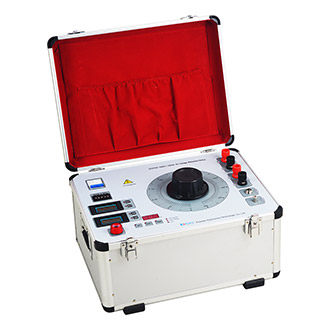

Hipot Operation Cabinet

type:ZC-500 (Not Available)
Online Service

TAGS:

  • Product Introduction

    The Hipot operating box has the advantages of convenient use and maintenance, superior performance, safe and reliable use, and beautiful appearance, strong and durable, easy to move, and so on. It is a power supply for enterprises, large factories, metallurgy, power plants, railways and other necessary equipment for the power maintenance department.

  • Product Parameters
Model Output Voltage(V) Adapter test capacity(kVA) Rated output High voltage voltmeter kV/V
Voltage(V) Current(A)
ZC-0.5 220 0.5 200 2.5 50/100
ZC-1.5 220 1.5 200 7.5 50/100
ZC-3 220 3 200 15 50/100
ZC-6 220 6 200 30 50/100
ZC-6 220 6 200 30 50/100
ZC-10 220 10 200 50 100 (140)/100
ZC-15 380 15 400 37.5 50/100、100/100、150/100
ZC-20 380 20 400 50 50/100、100/100、150/100
ZC-25 380 25 400 62.5 50/100、100/100、150/100
ZC-30 380 30 400 67.5 50/100、100/100、150/100
ZC-50 380 50 400 125 50/100、100/100、150/100
ZC-100 380 100 400 250 50/100、100/100、150/100
  • Product Features
    1. The monitor function: output current meter voltage zero indication or indication timing indicator.
    2. Protection function: over current protection time relay.
    3. With new time relay, the time range is more extensive.
    4. Using a new type of current relay, more accurate and more reliable, to ensure the safety of personal and equipment.
    5. Reasonable structure, small size, light weight.
