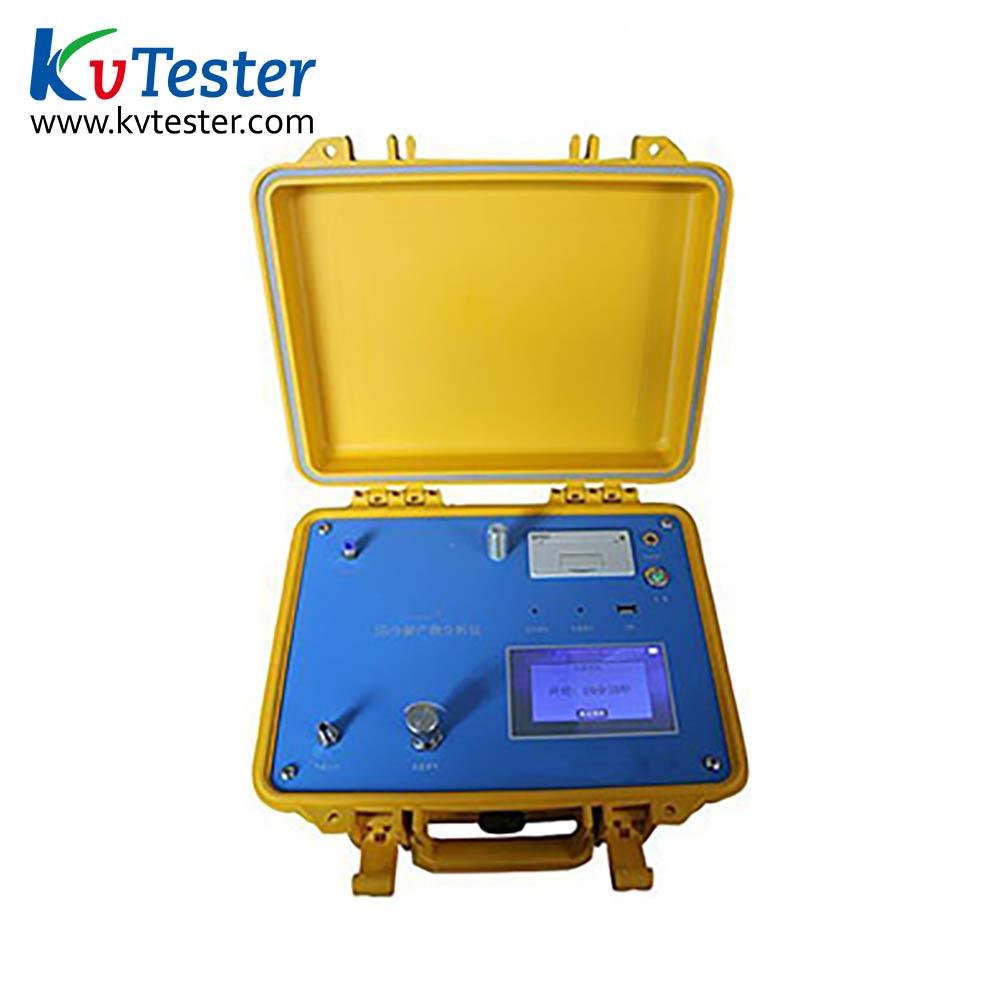

SF6 Gas Discharge Decomposition Of Analyser

type:ZC-317D
Online Service

TAGS:

  • Product Introduction

      SF6 Gas Decomposition Tester uses the world's most advanced UK Alpha high-performance, high resolution electrochemical sensors, embedded computer technology, is high-precision intelligent instrumentation.
      By detecting SF6 insulating material inside the device main cleavage product -SO2, the content of H2S, HF and CO , can quickly and accurately determine the early failure SF6 circuit breakers, transformers , GIS, busbars, bushings and transformers and other electrical equipment inside for electric power, railway , metallurgy and petrochemical industries.

  • Product Parameters
Decomposition products H2S 0 ~ 100 ppm (µL / L) ( standard ) ( not long-term than 200PPM)
 SO2 0 ~ 100 ppm (µL / L) ( standard ) ( not long-term than 200PPM)
CO  0 ~ 500 ppm (µL / L) ( optional ) ( not over a long 1000PPM)
Resolution  0.1 ppm (µL / L)
Accuracy  SO2, H2S 5 ~ 20 ± 1 ppm (µL / L) 20 ~ 100 ±3 ppm (µL / L)
CO 5 ~ 50 ±3 ppm (µL / L) 50 ~ 200 ±10 ppm (µL / L)
The limit of detection SO2 ≤0.1 ppm (µL / L)
H2S ≤0.1 ppm (µL / L)
CO ≤1 ppm (µL / L)
Repeatability  <± 2%
Measurement time  about 3 minutes
A sampling  built-in flow valve , electronic mass flow meter , 5 m sampling tube and pipe two meters out .
sampling flow 0.15 ~ 0.3 l / min
Working temperature -20 ℃ ~ + 50 ℃
sampling quick connectors, PTFE tube extension , built-in electronic flow meter
Operating temperature  -20 ℃ ~ 50 ℃
Power Source AC and DC ; once fully charged can work continuously for eight hours , AC : 220V / 50Hz
Display Large color touch screen LCD display with a resolution of 800 × 480;
Input High sensitivity touch screen
Output interface USB 2.0;
Storage with a storage capacity of thousands of pieces of data , with automatic storage function , can also be manually store the current test data
 Volume weight  320 × 270× 140 (mm)


  • Product Features
       1.Simultaneously measure and respectively display the typical decomposition products
       2.High precision, good stability, minimum tested quantity can be low as 0.1µl/L
       3.Fast testing speed, can finish within 1 minute
       4.Fault diagnosis and suggestion function, data management function, gas flow rate can be regulated and displayed
       5.Simple operation, intuitive interface, self-contained power supply, No need calibration within 1 year
       6.Eco-friendly, little gas consumption: 200~300ml for each time measuring
       7.Decomposition products: SO2, H2S ( CO, HF optional)
