Circuit Breaker (Switch) Tester

Vacuum Interrupter Detector

type:ZC-313
Online Service

TAGS:

  • ZC-313
    • Product Introduction

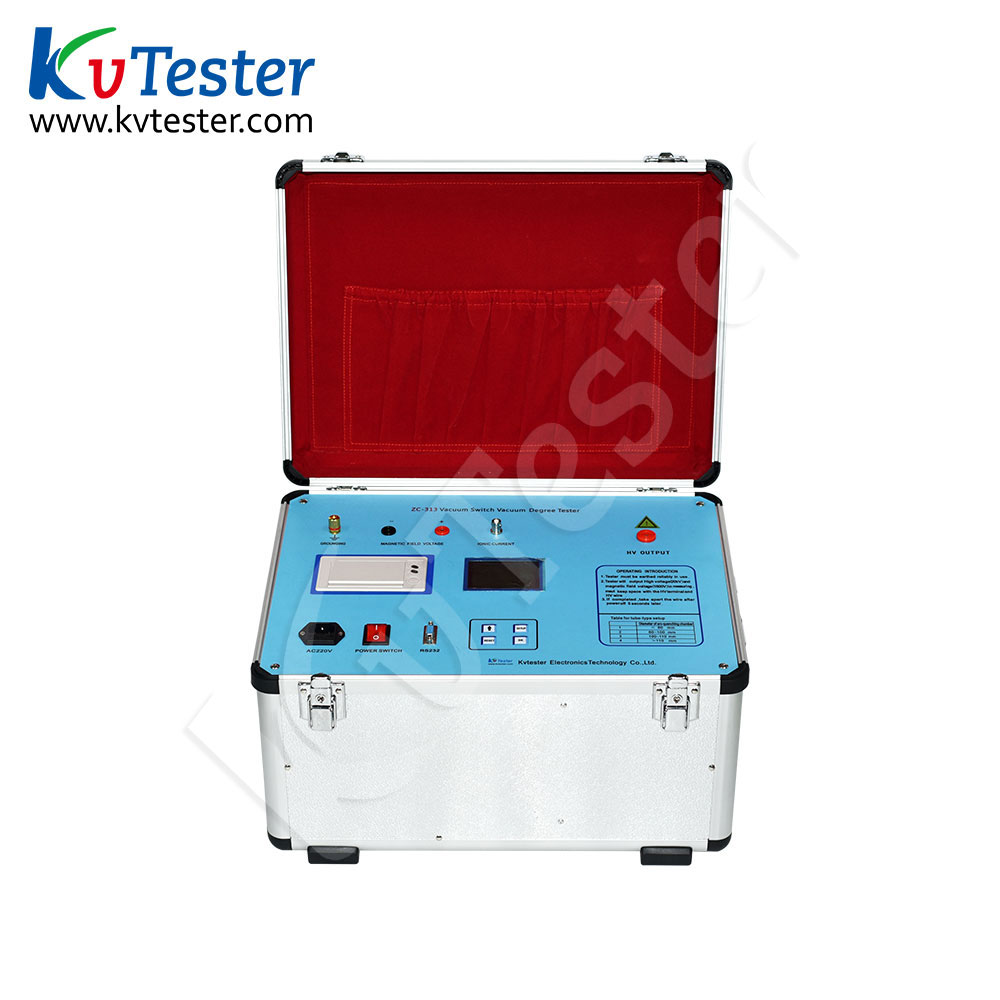

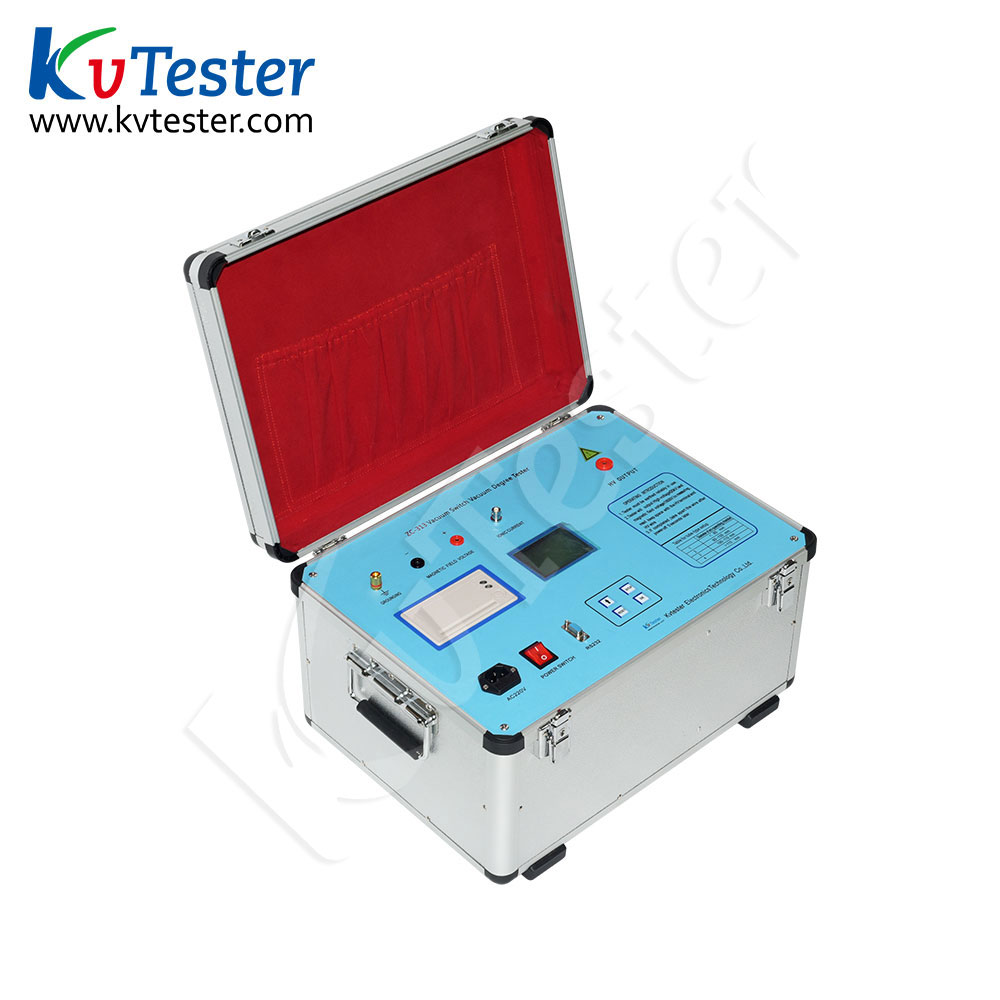

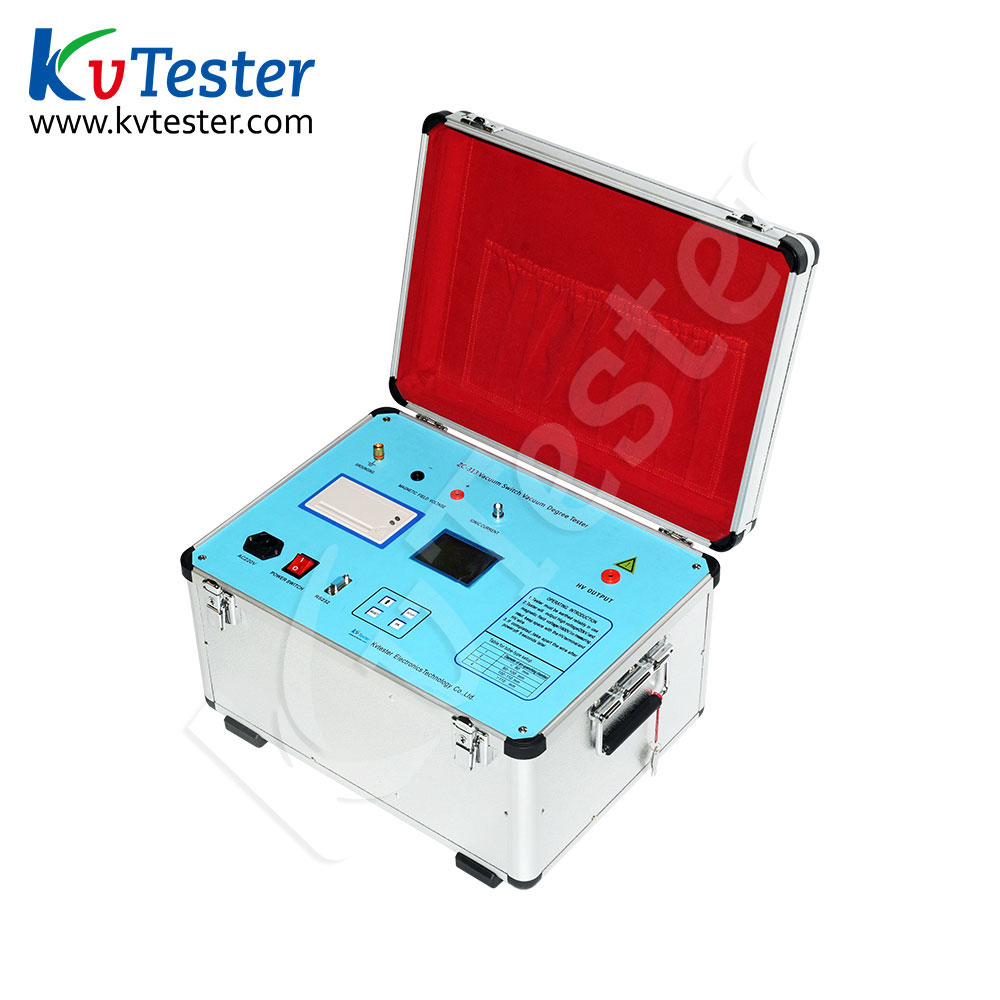

         ZC-313 Vacuum interrupter tester is the latest product improved on the basis of the original product based on the reflection of the site users. It has the characteristics of higher test precision, better stability and higher intelligent.
         Vacuum circuit breaker is a commonly used method to judge whether the vacuum degree of vacuum tube is deteriorated or not. It is a power frequency withstand voltage method. This method is only able to judge the quenching chamber with serious deterioration of vacuum degree. When the vacuum degree is deteriorated to 10-2----10-1 Pa, the breakdown voltage is not reduced, but the arc extinguishing chamber is not qualified.

    • Product Parameters
    Measuring range 10-5~10-1 Pa
    measurement accuracy 10-5~10-4 Pa,10%
    10-4~10-3 Pa,10%
    10-3~10-2 Pa,10%
    10-2~10-1 Pa,10%
    Magnetic field voltage 1700V
    Use environment -20℃~40℃
    Host weight 24kg
    Dimensions 410×320×370mm3
    Sampler Magnetron coil


    • Product Features
        1. No need to dismantle the vacuum switch in measurement;
        2. Two types of magnetic coil for different measuring method;
        3. Can test many types of vacuum switch;

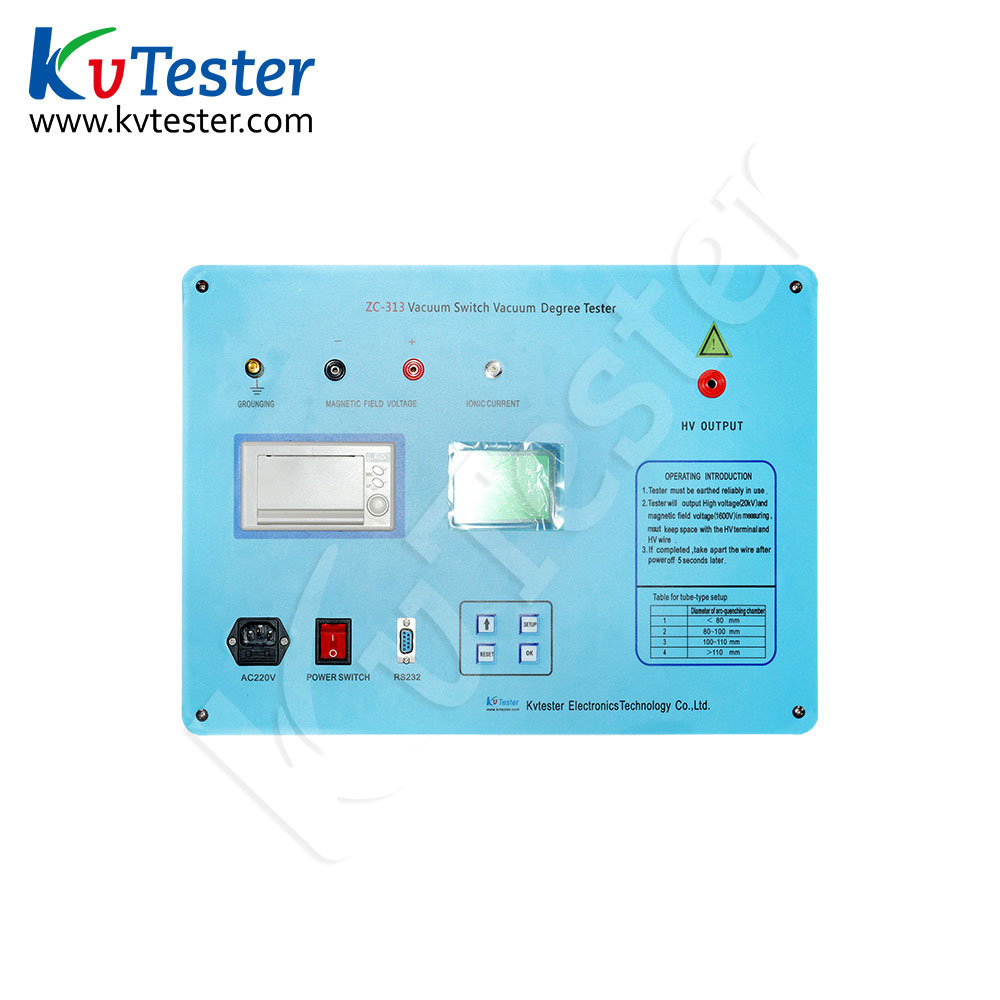

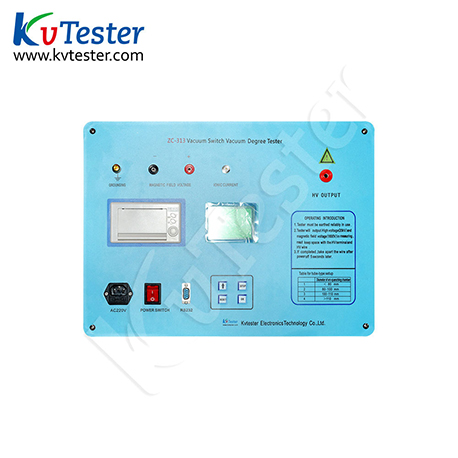

        4. Menu on LCD screen, easy to operate;
        5. Data storage, Viewed and Printed functions;
        6. RS-232 port to Computer;
        7. Light weight, Portable.
