Circuit Breaker (Switch) Tester

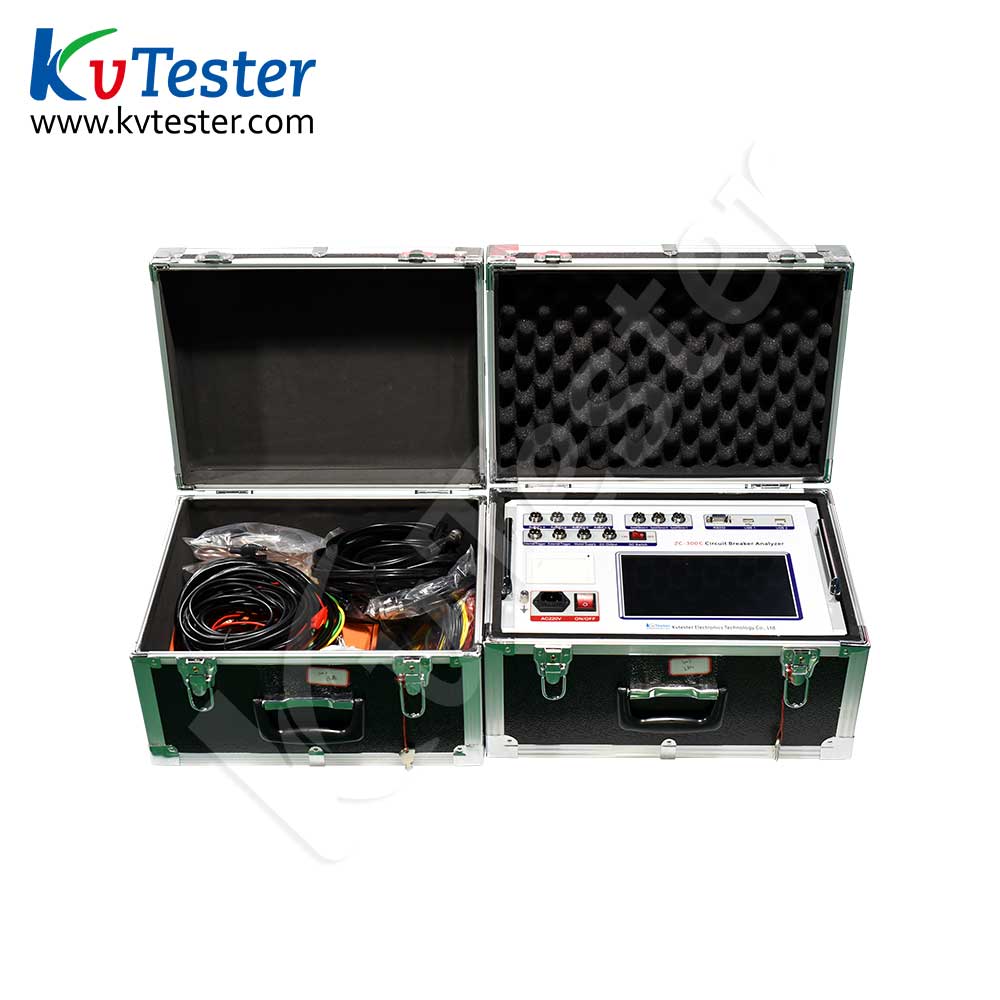

Circuit Breaker Tester

type:ZC-300C
Online Service
  • Product Introduction

     ZC-300C Circuit Breaker Tester instrument can be used to test and measure mechanical parameters of vacuum, sulfur hexafluoride, less oil, more oil power system′s high voltage switch and etc. It is the most convenient tool for high voltage switch′s repairment and test for its stable data of measurement, easy wiring and simple operation, which make it possible to carry out experiments in power stations with 500kV grade and below.

  • Product Parameters

1. Time measurement:

              12 channels inherent opening (closing) time

              Different periods in the opening (closing) phase

              The difference between opening (closing) phases in different periods

              Closing (opening) bounce time (bounce times)

              Different period test range: 0.10ms~99ms, resolution: 0.01ms;

              Internal trigger test range: 0.10ms~999ms, resolution: 0.01ms,

1000ms~9999ms, resolution: 0.1ms, 10000ms~200000ms resolution: 1ms.

              External trigger test range: 0.01ms~200s

            Accuracy rate within 1000ms: 0.05%±1 word

2. Speed measurement: just opening (just closing) speed

               Average speed in a specified time period (stroke period or angle period)

3. Speed measurement range: 1mm sensor 0.01~25.00m/s,

                0.1mm sensor 0.001~2.50m/s

                345° angle sensor 0.01~25.00m/s,

                Laser sensor 0.01~15.00m/s.

4. Stroke measurement: moving contact stroke (stroke) (optional for 3-way stroke measurement)

                Contact stroke (open distance)

                Overtravel

                Overshoot stroke or rebound stroke

5. Measuring range: linear sensor: 50mm, measuring range: 0-50mm, resolution: 0.1mm.

               Rotation sensor: 345о, measuring range: 0-1000mm, resolution: 0.08о. This sensor has an invalid area of  15 degrees, and the effective area of the sensor can be seen on the instrument when it is installed, and the value display is preferably about 160-200 degrees.

               Acceleration sensor measuring range: 0-300mm, resolution: 0.1mm.

6. Coil current: maximum current 20A, resolution: 0.01A.

7. Measuring range of coil resistance: 0~2000Ω, resolution: 0.01Ω.

8. Instrument power supply: AC220V ± 10%; 50Hz ± 10%.

9. DC power output: DC6~270V continuously adjustable, DC24V≤15A (short time), DC220V≤20A (short time).

10. External trigger voltage: AC/DC10-300V, current ≤120A

11. Isolating switch measurement range:

⑴ Voltage output: DC6~270V (adjustable);

 ⑵ Power output time: 0.01-20 seconds (can be set);

⑶, the maximum collection time of fracture signal is 200 seconds;

⑷, measurable fracture closing time, opening time, three-phase different period, bounce time and frequency

12. Host volume: 440×300×260mm

13. Use environment: -20℃~+50℃

14. Relative humidity: ≤90%

  • Product Features

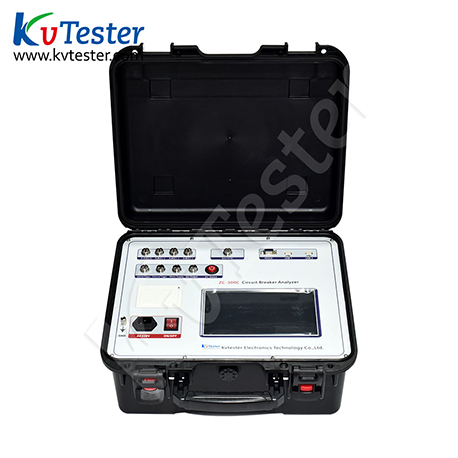

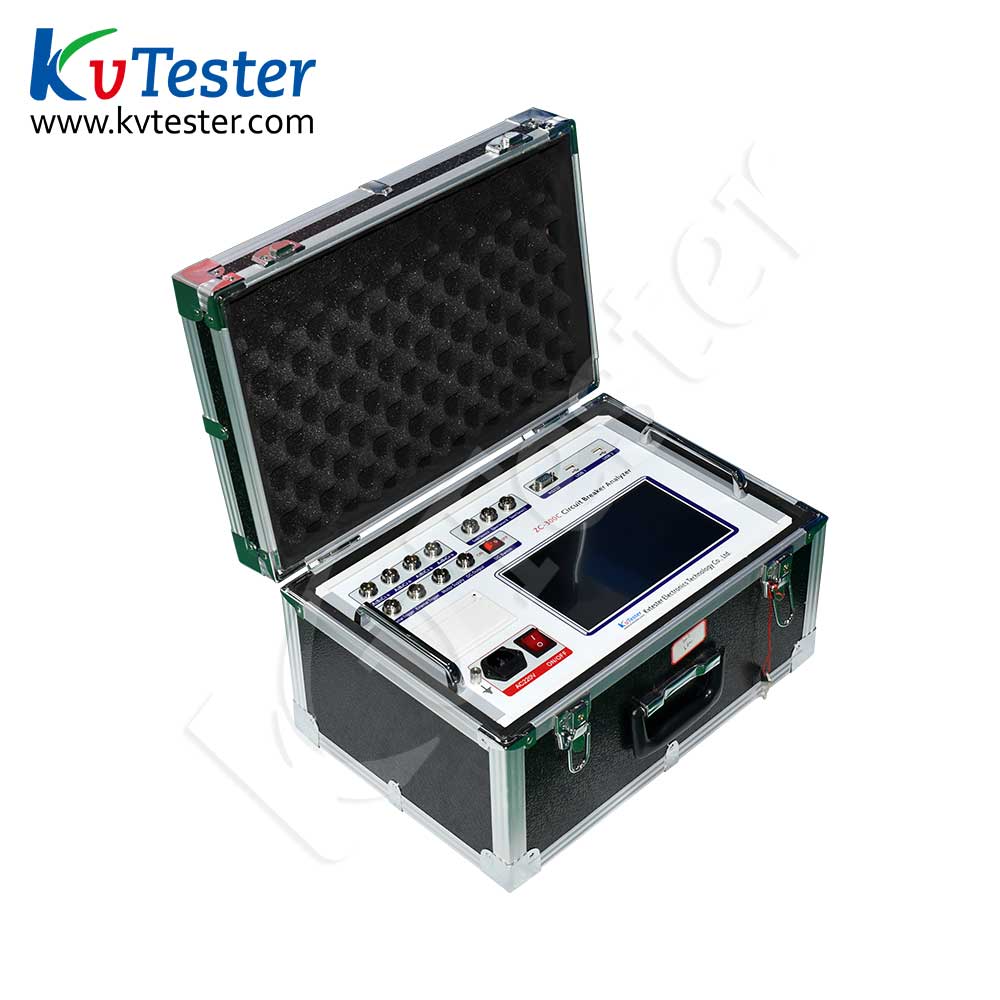

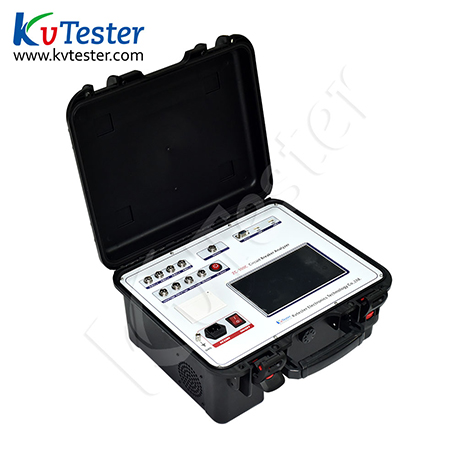

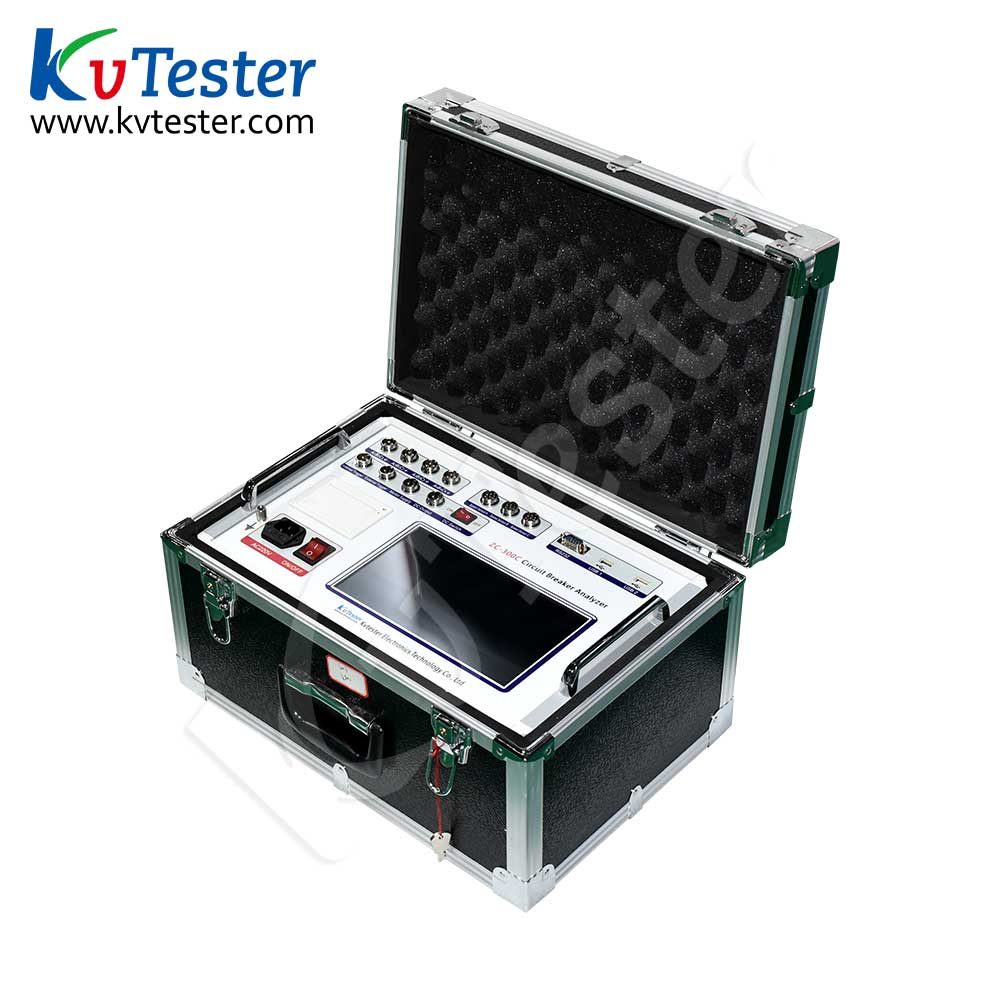

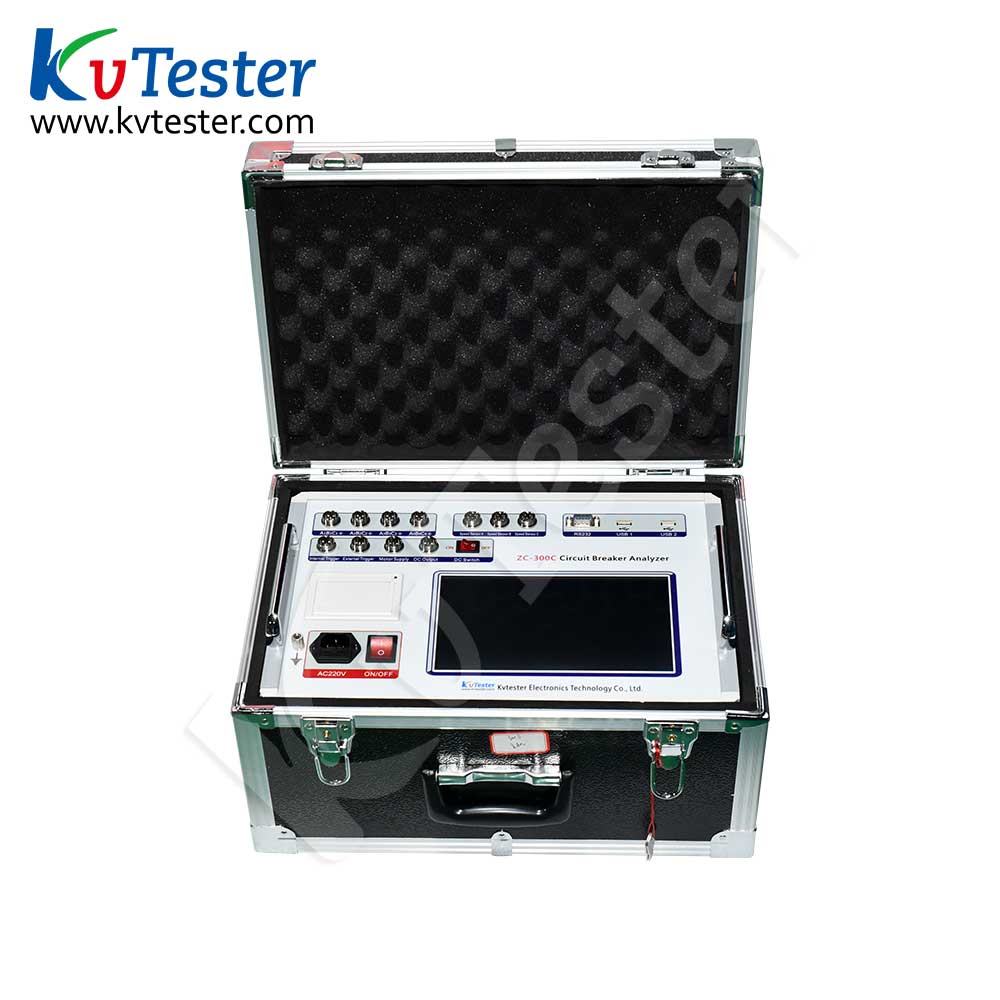

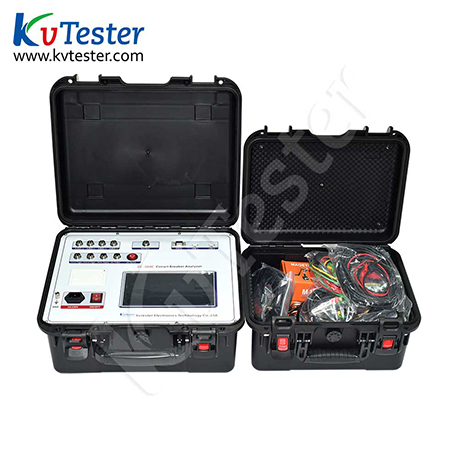

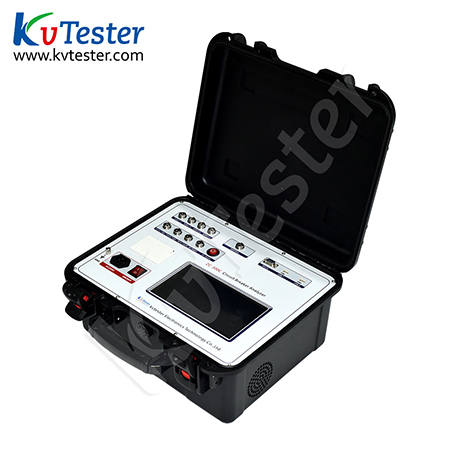

1、This instrument is an embedded industrial computer, the main board is based on CortexTM-A8, the main frequency is 1GHZ, the flash memory is 1GB, and the boot speed is only 16 seconds. Large 9-inch color screen, windows operating system, intuitive user-friendly operation interface, touch screen, support Chinese and English input, which is convenient for on-site operators.

2、high-speed thermal printer, convenient for on-site printing of test data.

3、The integrated operating power supply in the machine eliminates the need for on-site secondary power supply, which is convenient and quick to use. It can provide DC6~270V adjustable power supply, current 20A. The operating voltage value of the opening and closing coil can be set arbitrarily, and the low voltage operation test of the circuit breaker can be done.

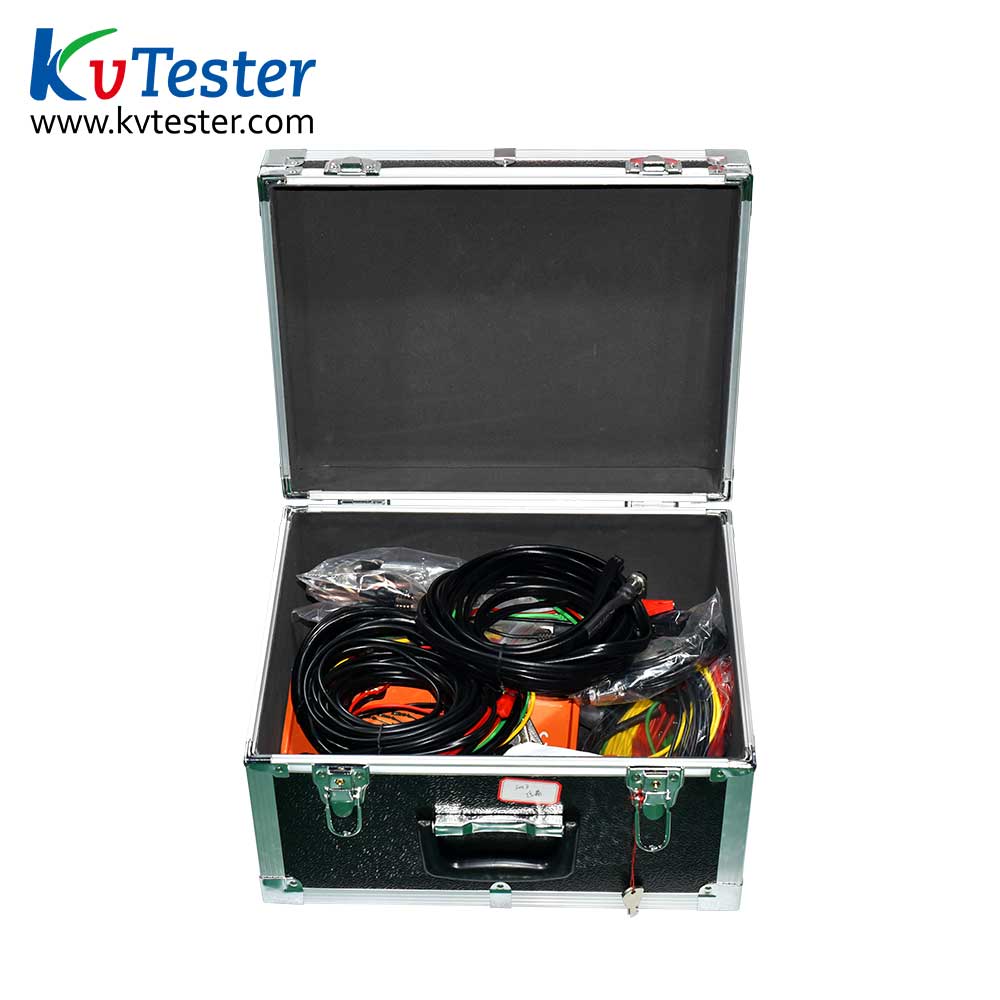

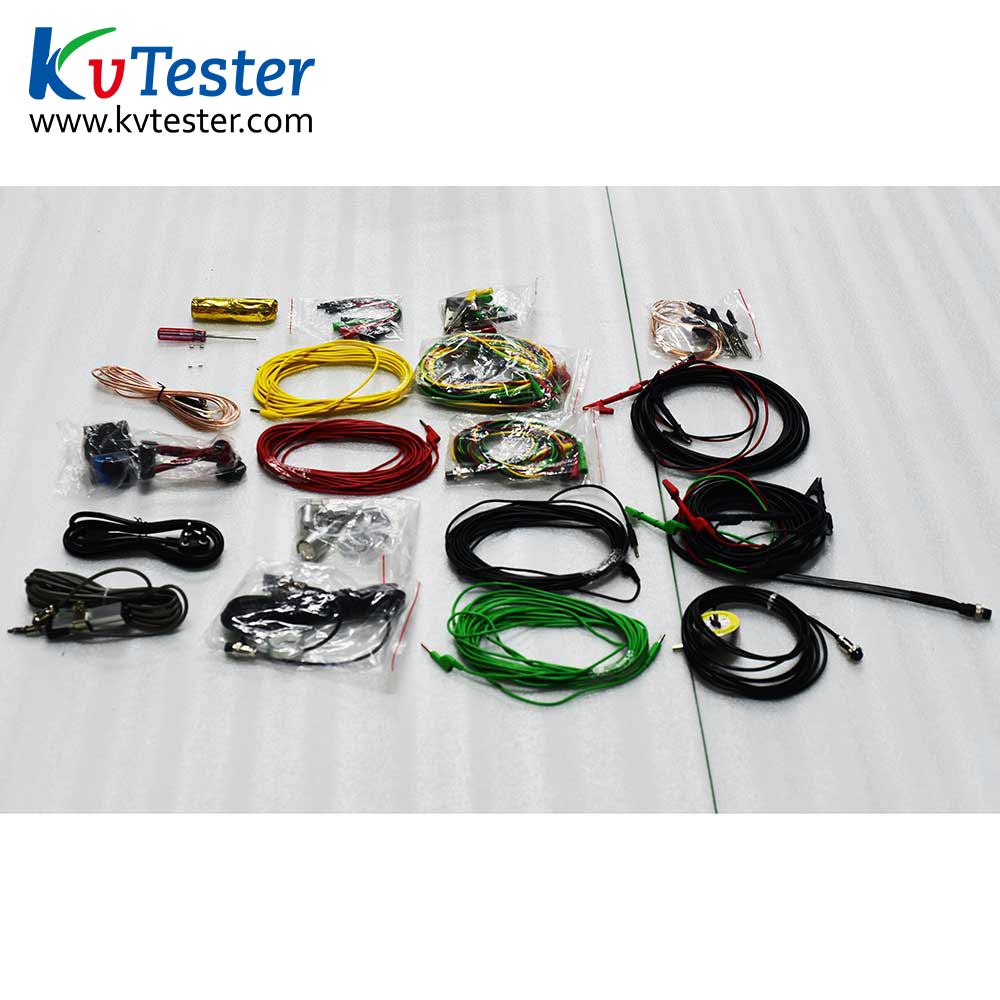

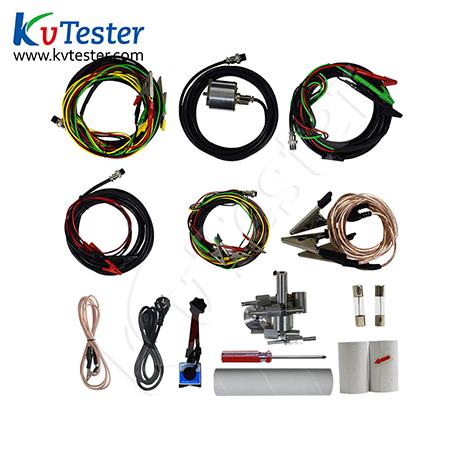

4、Equipped with linear sensor, rotation sensor, universal sensor, laser sensor (optional), bracket, special fixed multifunctional joint, installation is extremely convenient and simple.

5、Suitable for all types of SF6 switches, GIS combination electrical appliances, vacuum switches, and oil switches produced at home and abroad.

6、The switch action once, get all the data and graphics, the test data and graphics are displayed on the same screen, and the speed can be recalculated without retesting.

7、The host can store 30000 groups of current test data (expandable memory card), and the real-time clock in the machine is convenient for archiving.

8、Equipped with 2 USB ports, which can be connected to the mouse to operate the instrument, and the data can be directly saved to the U disk, uploaded to the computer for analysis and storage. RS232 interface online operation (optional), WIFI operation optional.

9、At the same time, it can measure 12 metal contact fractures, 6 main fractures and 6 auxiliary fractures, and 1 speed (optional for 3 speeds).

10、Contains the envelope curve, through the value tested by a switch, the standard envelope curve is generated for analysis and comparison, and the switch vibration frequency analysis can also be carried out.

11、The internal anti-interference circuit can satisfy the reliable use in 500KV substation.
