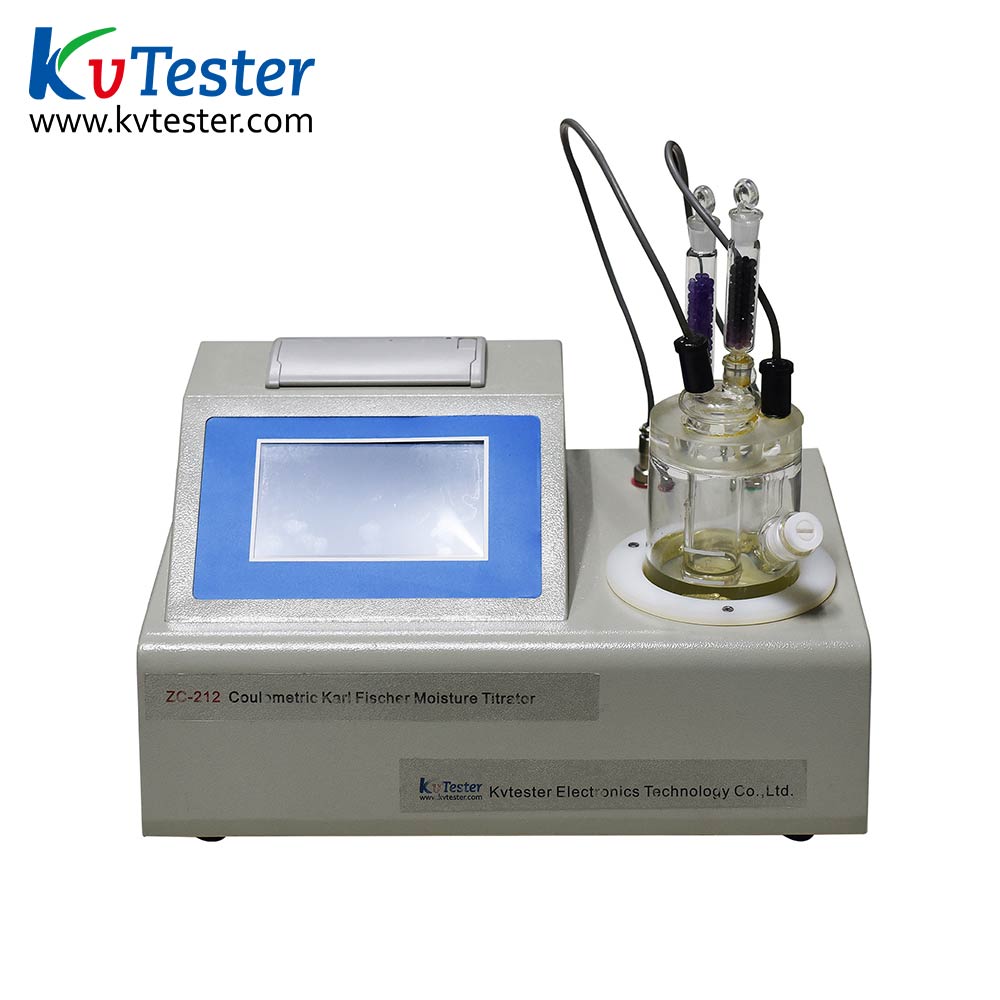

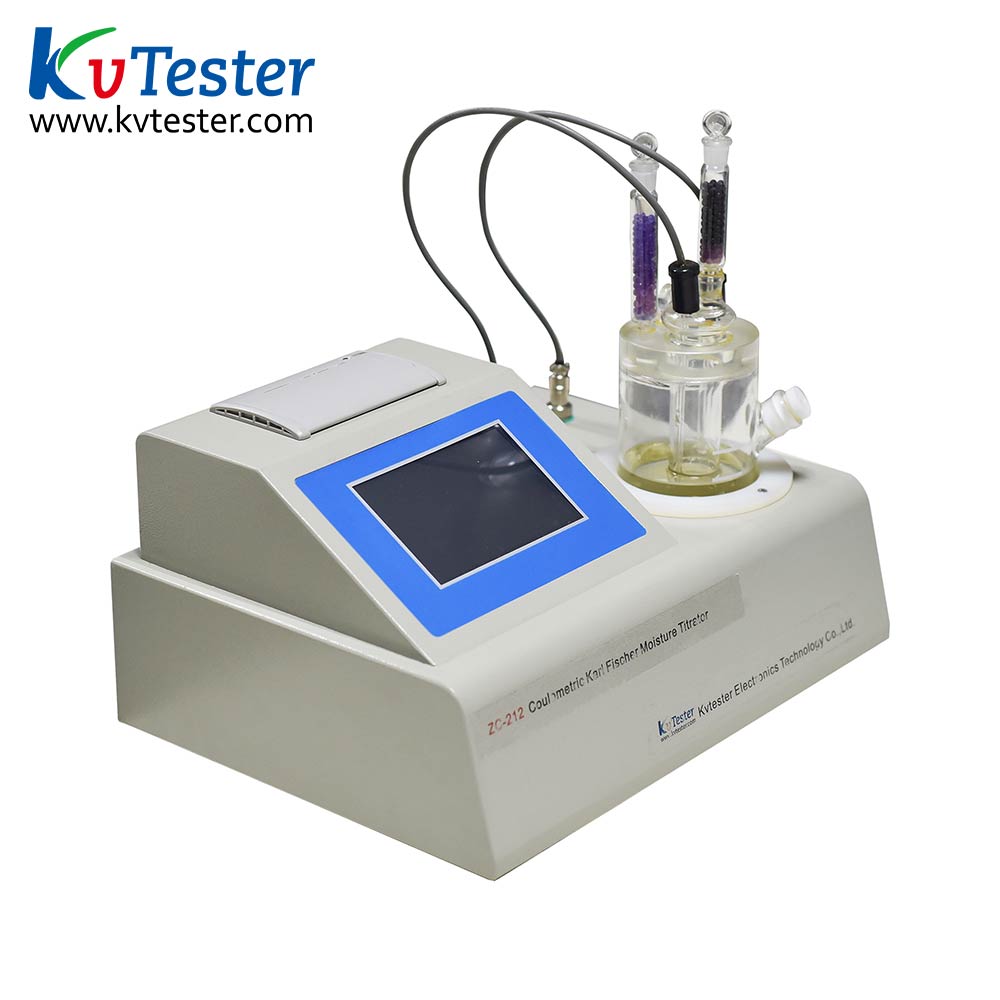

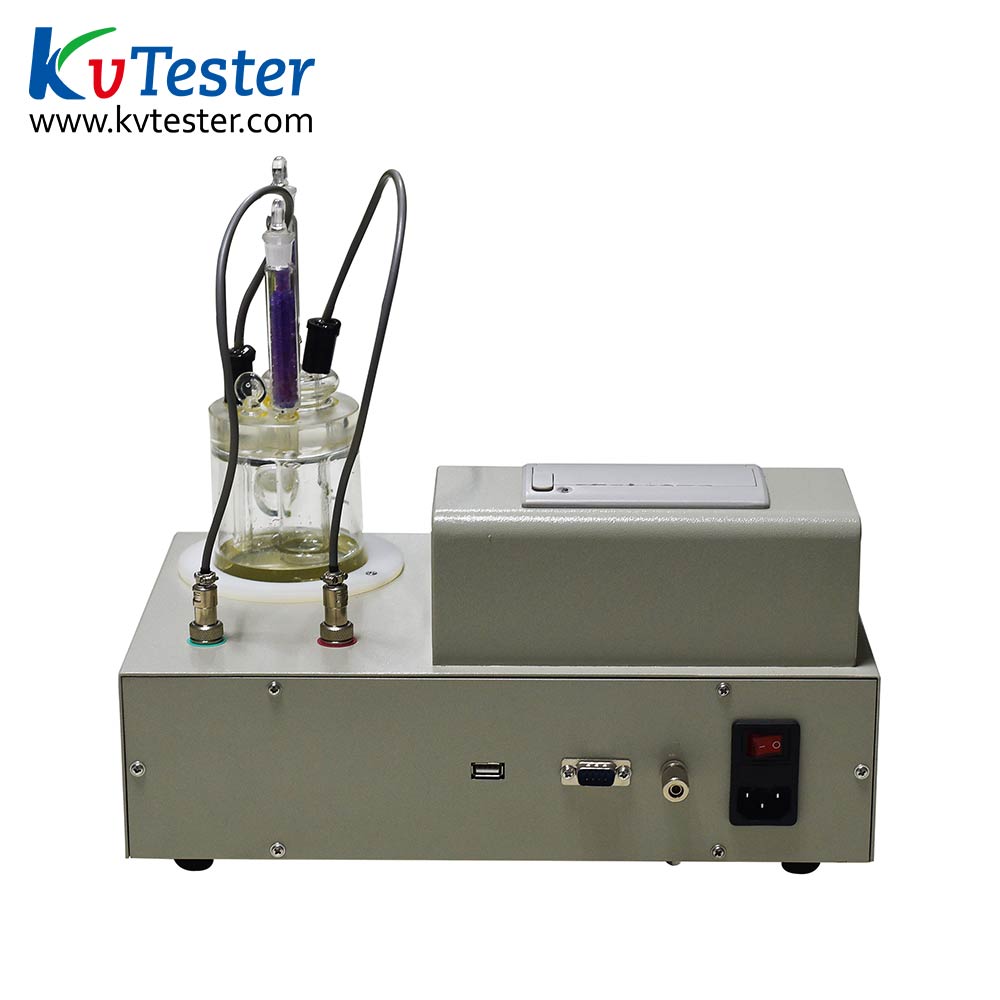

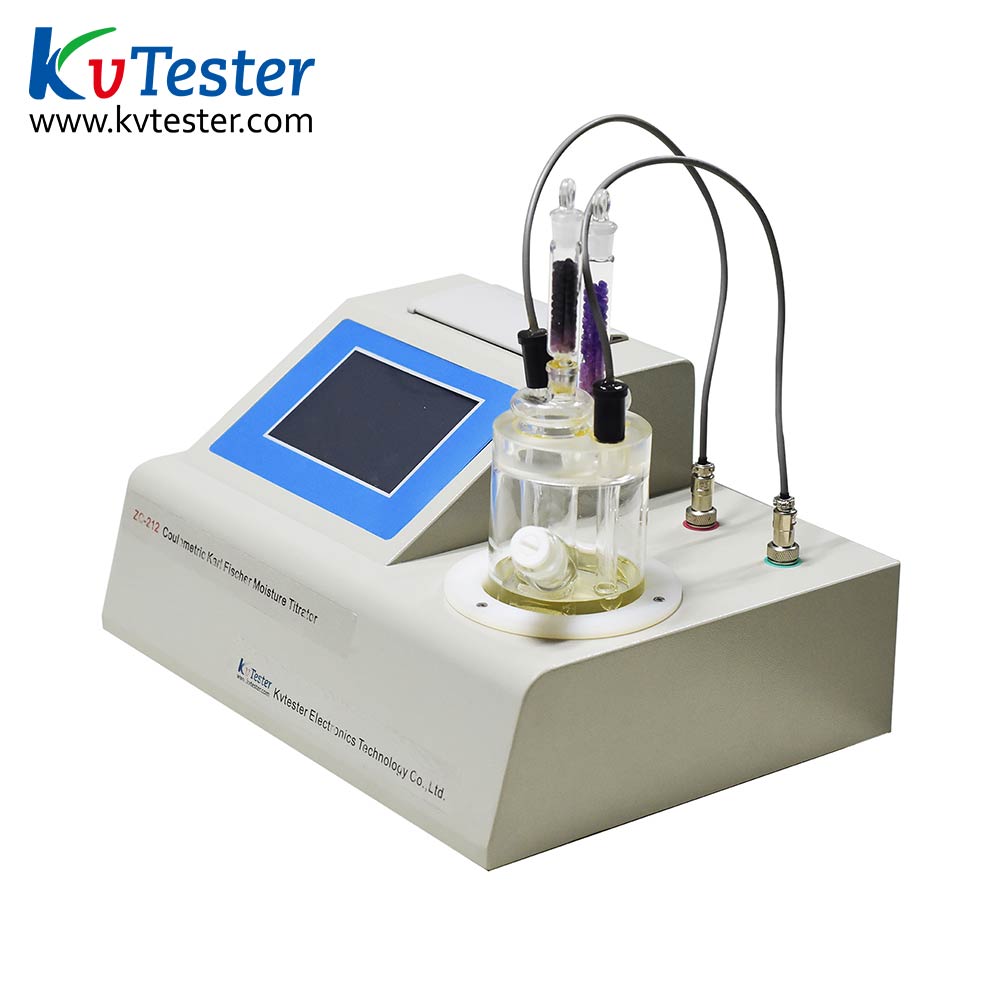

Micro moisture tester for insulating oil

type:ZC-212
Online Service
  • Product Introduction

Micro moisture meter is a new development of the determination of trace water analysis instrument, the instrument uses high resolution color touch LCD display, convenient man-machine conversation, intuitive and easy to operate.The instrument adopts the high performance ARM processor with large data storage capacity, running fast and stable performance and excellent anti - jamming performance, which has outstanding advantages of high detection speed and high precision. The instrument has the fault diagnosis function, the end of the test, display and print results.

  • Product Parameters
Drop formula

electric quantity titration (Coulomb analysis)

Range

100mg ~ 0ug (10ug ~ 100ug)
Threshoid0.1ug

Accuracy

100ug + 3UG, 500ug + 3% (no error, environmental humidity error)

Test sample type

solid, liquid, ga

Display formula

 64K color high definition touch monitor

Data storage

1000 test record

Dynamic curve

text display

Stir mixing speed

sliding touch panel speed control

Time period

ten years of normal operation of power down tim

Printer

micro thermal printer, paper width 56m

Power source

 220V 10V + AC, 50Hz + 2.5H

Work rate

50VA

Using ambient temperature

5~ 35

Humidityless than 85%

Size

260mm X 220mm X 330mm (length x width x height).


  • Product Features

   1.The modified transformer oil tester has a large-screen liquid crystal display, an interactive interface, and various parameters with menu prompts;
   2.The modified transformer oil tester test date with various parameters, clock and other tips;
   3.differential detection, the system automatically corrects the deviation;
   4.mixing, testing, computer automatically print data;
   5.micrograms of water and ppm units, automatically converted;
   6.the introduction of imported XECOM US data processing chip, fast and accurate data processing;
   7.Instrument has potential is measured dynamic curve indicating function, makes the test more intuitive; instruments and data storage capacity up to store 500 data records; instrument has delay measuring function, is very effective in the testing of lower moisture content of specimen; instrument adopts the sliding touch control the stirring speed control; water content calculation formula contains calculated according to the volume and weight of the key parameters of various algorithms; testing process, such as the need to modify the formula for calculating the related parameters, can be modified in a timely manner and does not affect the measurement of moisture content, moisture content is in accordance with the revised parameters calculated to facilitate the users.
