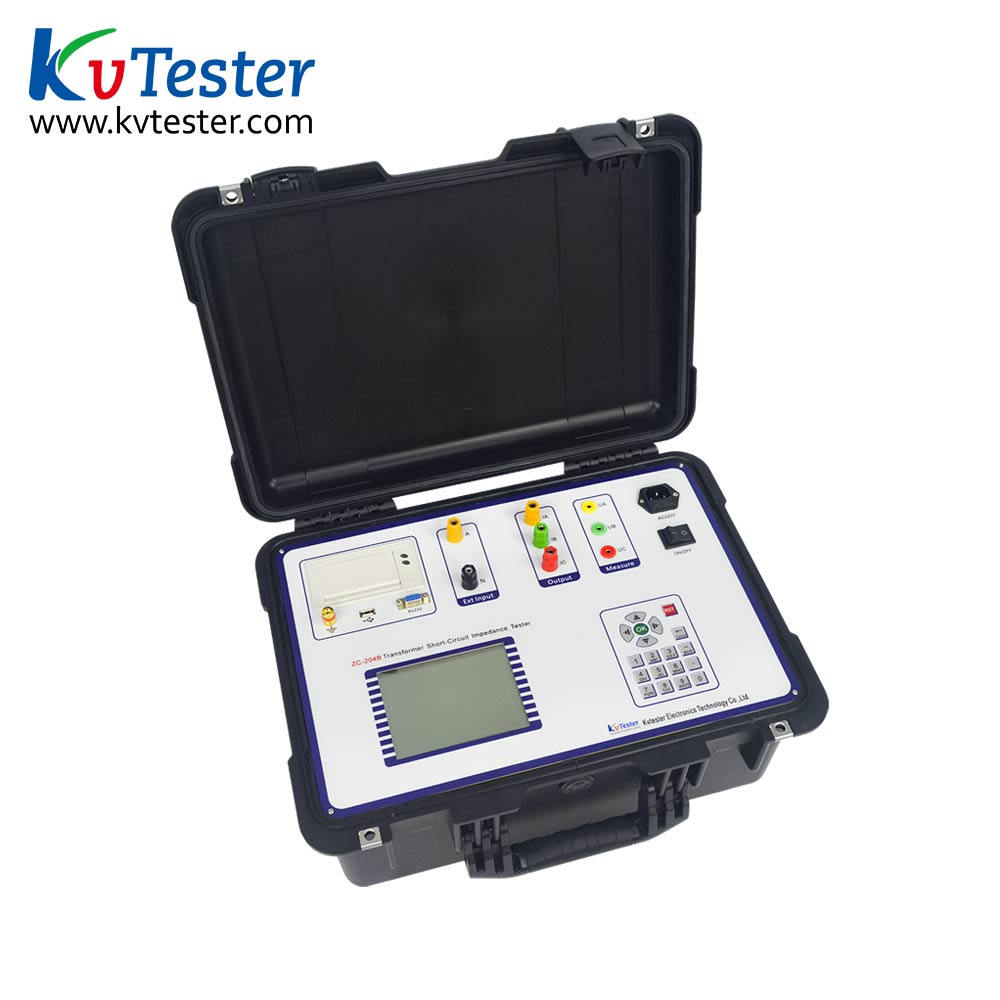

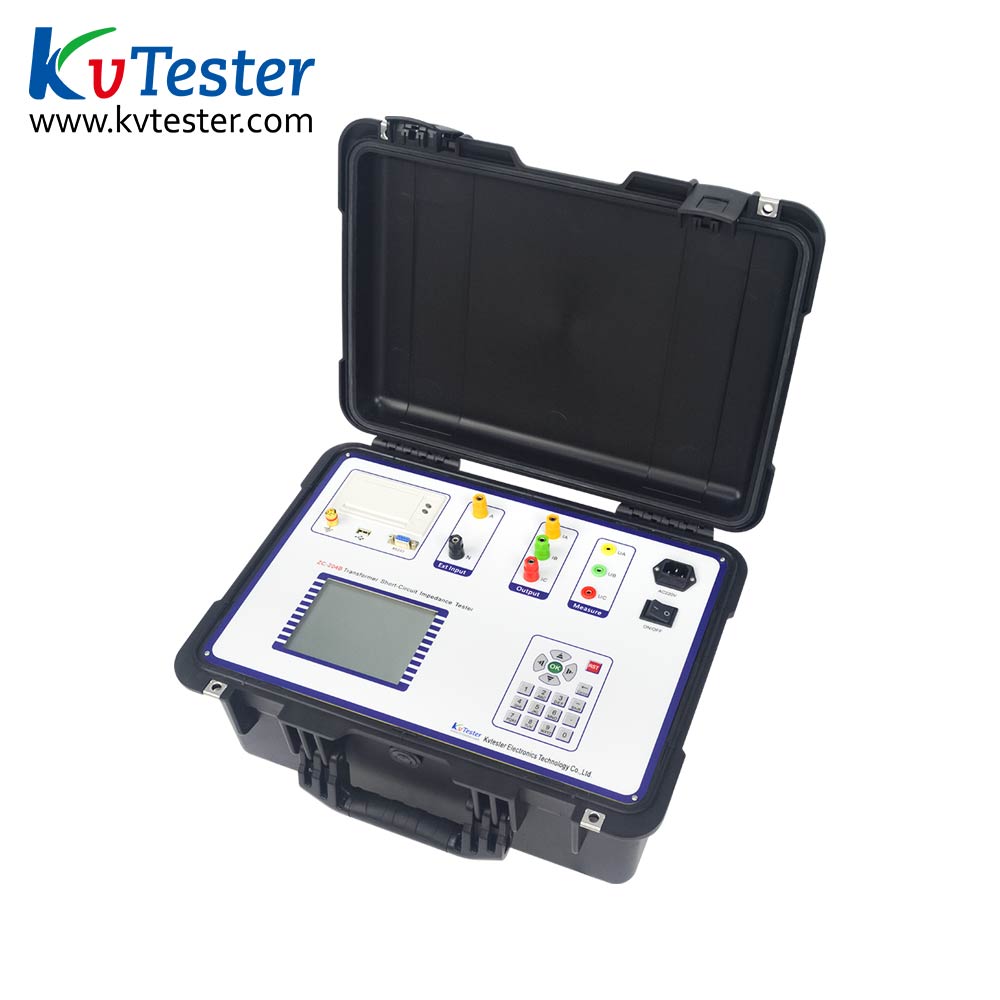

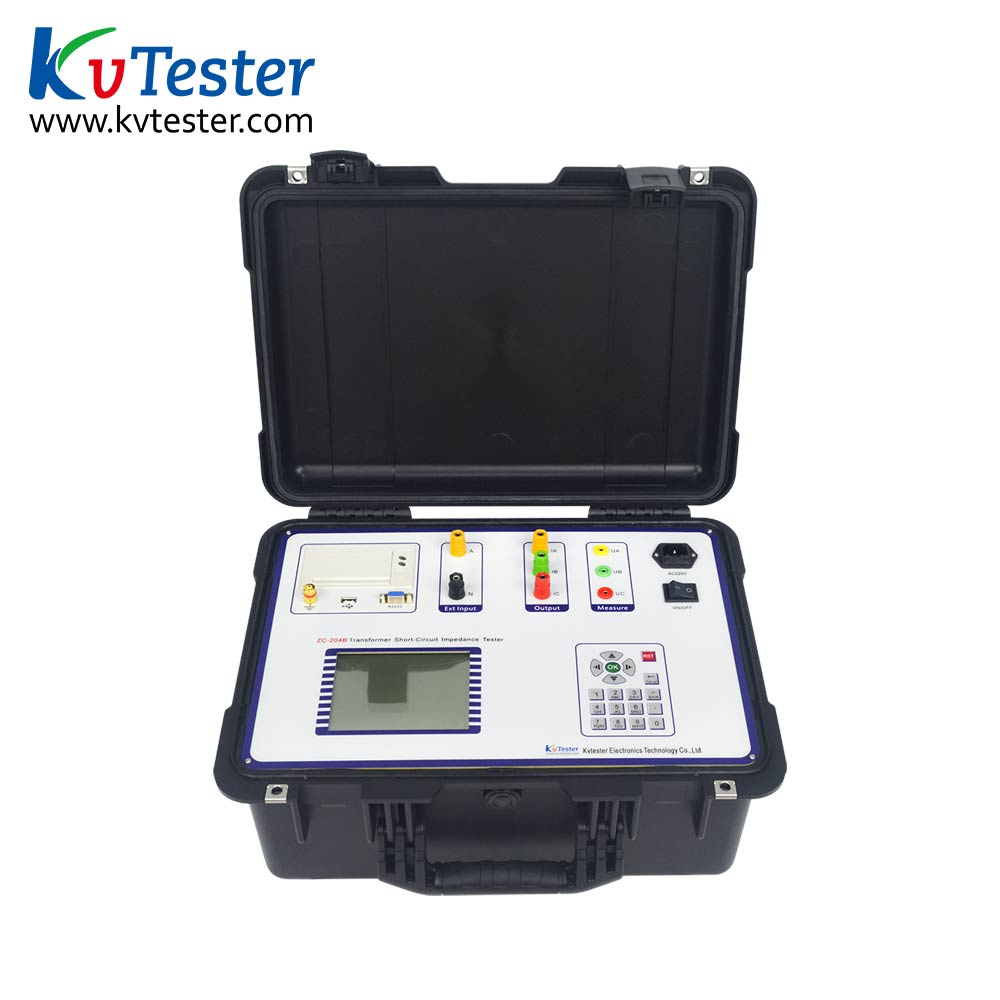

ZC-204B Transformer short-circuit impedance tester has the internal adjustable power output and do not need the outside pressure regulator, only need to provide 220V power supply can be tested, especially suitable for the field of 110kV level and above the main transformer for low voltage short circuit impedance measurement.
Low voltage short circuit impedance measurement of 35kV and above main transformer
|Working power||input voltage||185Vac～250Vac|
Allowable input voltage
|Joint||Standard AC socket 60320|
|Accuracy||COSφ＞0.1:0.5 level；COSφ≤0.1:1.0 level|
|Humidity||relative humidity：5%～95%，No dew|
|Weight||≈5kg (Excluding attachments)|
1. The tester with adjustable power output, both single-phase and three-phase transformer, can be used to complete all windings of the measurement only need connect the wire once time, testing and wiring simply; inside of the instrument uses a phase-locked loop technology, synchronous sampling AC signal, measurement data is accurate.
2. Test and algorithm is to meet the<< DL/T1093-2008 power transformer winding deformation detection and judgment >>, and automatically calculate the short-circuit impedance, reactance and inductance value of each phase.
3. Test data can be imported into the computer to facilitate further analysis or storage; support external power supply, expand the test power.
4. Through the anti large screen liquid crystal, in the sun can be clearly displayed; all Chinese menu and operation tips, simple and intuitive operation.
