Type: PTA-2000C

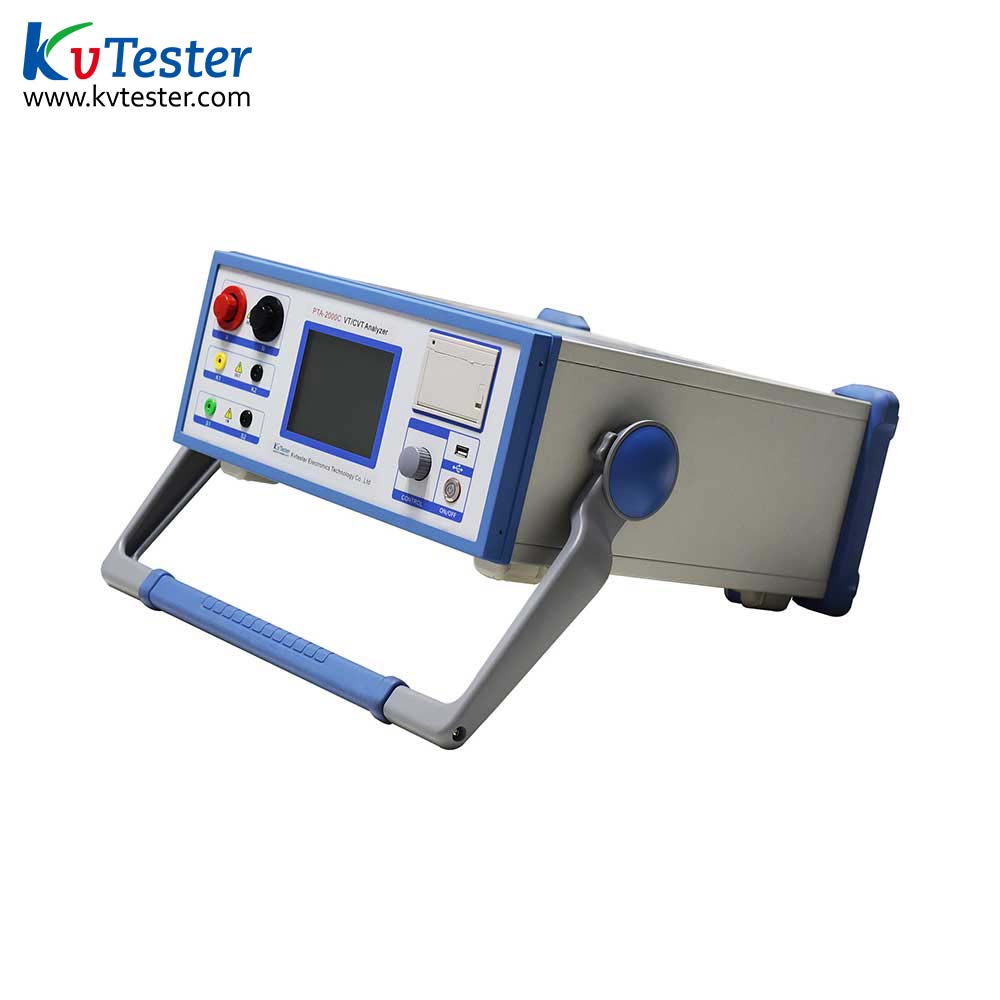

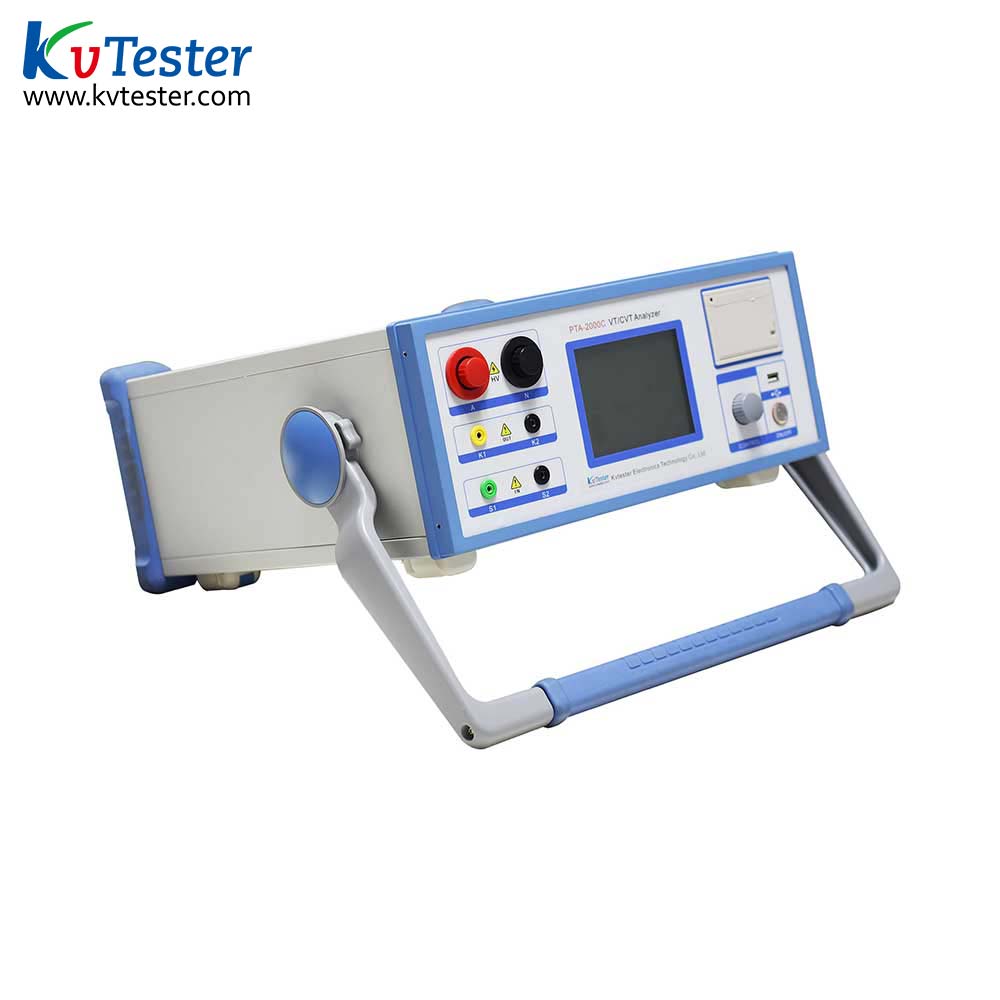

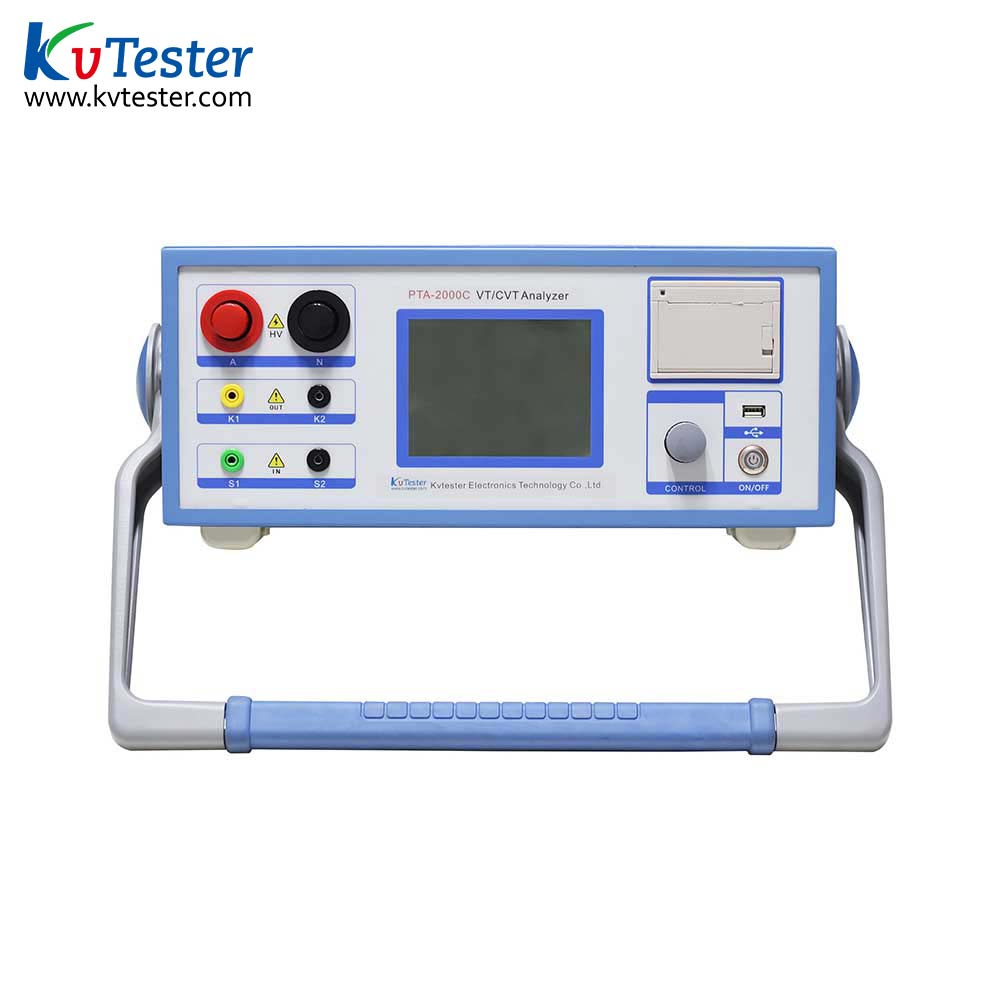

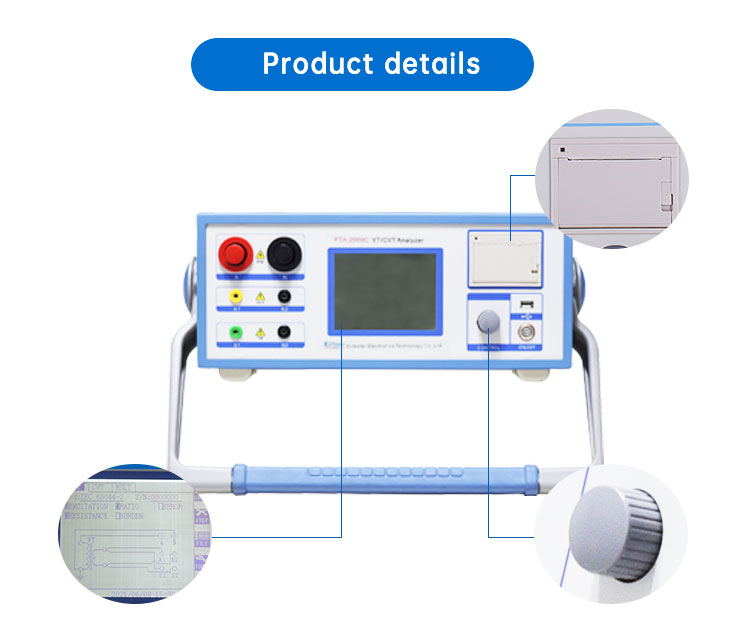

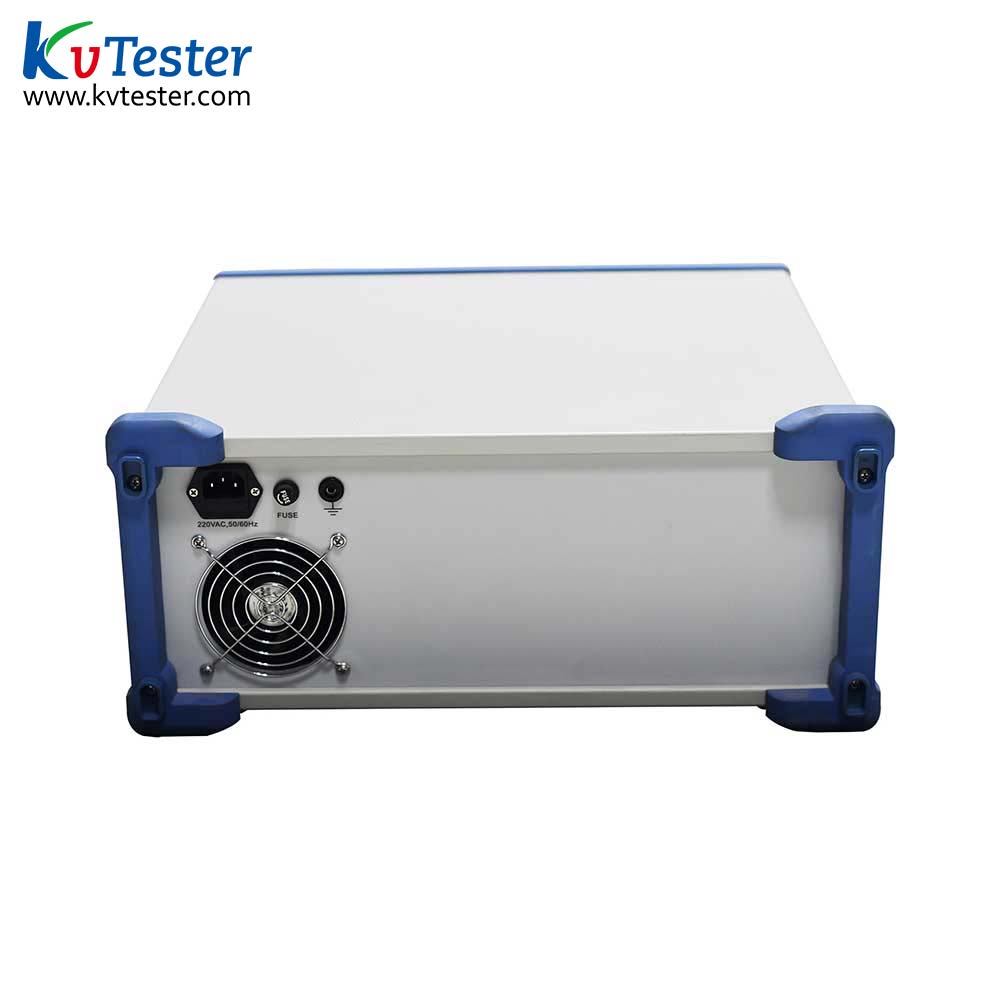

    The PTA-2000C VT/CVT Analyzer is based on the traditional voltage transformer, calibrator voltage regulator, booster, the series resonant, widely listen to the views of users, after a lot of market and in-depth theoretical research of a new generation of innovative PT test instrument. Device adopts high performance DSP+FPGA and ARM industrial computer, advanced manufacturing technology, to ensure stable and reliable product performance, complete functions, high degree of automation, high testing efficiency, in the domestic leading level, is used for professional testing instrument transformer in electric power industry.
Contact Supplier
  • Product Features
  • Parameter
  • Guide

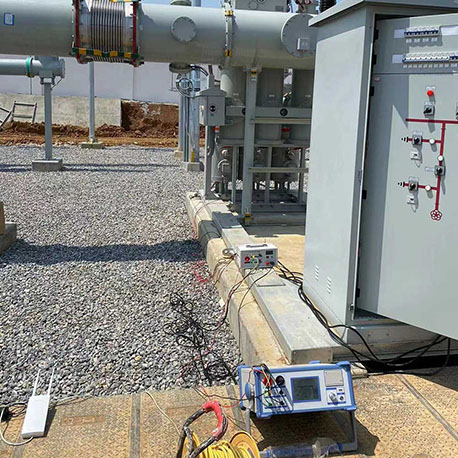

  • Scene
  • Related video
  • Packing

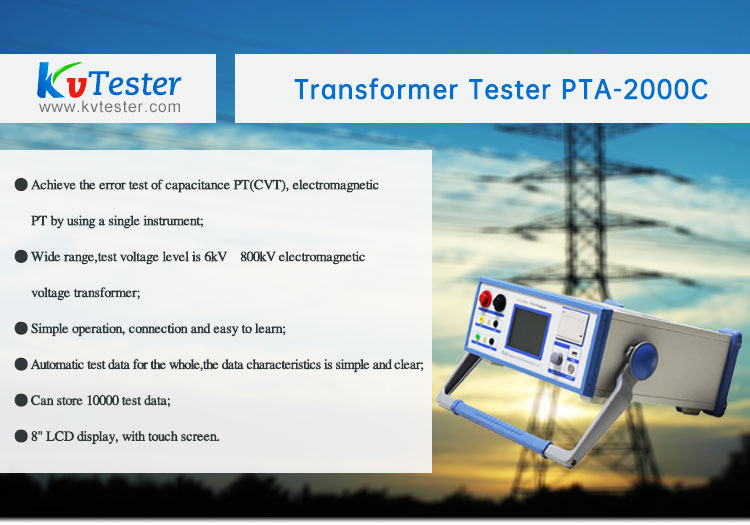

Product Features
    1. You can achieve the error test of capacitive PT (CVT), electromagnetic PT by using a single instrument , without resonance booster, standard voltage transformer, load box, tester and other equipment, greatly reducing the workload of the on-site check error.
    2. The test range is wide, can test the voltage level is 6kV~800kV electromagnetic voltage transformer.
    3. Using internal standard voltage transformer 0.01, low voltage transformer error measuring difference test; excitation characteristic curve can be obtained by using the frequency interval test technology, combined with the error of the measured value of low voltage transformer error range by extrapolation of the whole work. The test level of the instrument can reach level 0.05. During the test, the maximum output voltage is not more than 3kV, to ensure the safety of field testing.
    4. Bilingual comparison.
    5. The test wiring is simple, the operation is simple and easy to learn, only the operation of the transformer can be completed easily according to the operation of the guide prompt, and the testing efficiency is greatly improved.
    6. With the intelligent judgment of external wiring, wiring error, tip ratio, polarity errors etc..
    7. Automatic test data for the whole, and determine whether the ultra poor, poor data using the color display, the data characteristics of the transformer is simple and clear.
    8. Large memory can store the test data of up to 10000.
    9. Aluminum chassis, with good anti - interference, and to ensure the safety of the operator in the field of high pressure test and equipment safety.
    10. The use of high resolution, large size 8 inch true color LCD display, outdoor light with a clear display, with touch screen auxiliary operation, simple and quick.
Parameter
Specification model PTA-2000C
Test use Capacitive voltage transformer, electromagnetic voltage transformer characteristic test.
Working power Input voltage 185Vac~250Vac
Allowable input voltage 85Vac~264Vac
Frequency 50/60Hz
Allowable frequency 45Hz~65Hz
input power 800VA
Joint Standard AC jack 60320
PT ratio
Accuracy
Ratio 1 to 350 0.03% (typical)
Ratio 350 to 1100 0.05% (typical)
Ratio >1100 0.07% (typical)
Phase measurement Resolution 0.01min
Accuracy ±2min
Secondary winding
Resistance measurement
Range 0Ω~500Ω
Resolution 1mΩ
Accuracy 0.5% ± 2mΩ (guaranteed value)
AC load
measuring
Range 0VA~1000VA
Resolution 0.01VA
Accuracy 0.5%±0.05VA
Output Low voltage output 0~120V 5Arms, current: 12A (peak) power: 600VA
High voltage output 0~3000V
Environmental conditions Operating temperature -10℃~+50℃
Operating temperature -25℃~+70℃
Storage temperature 5% to 95%, no condensation

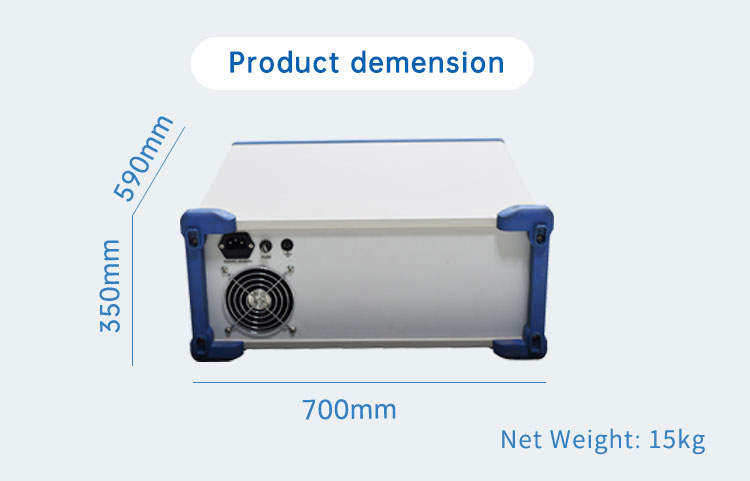

Physical characteristics Size  365×290×155mm3
Weight ≈18kg (excluding accessories)
