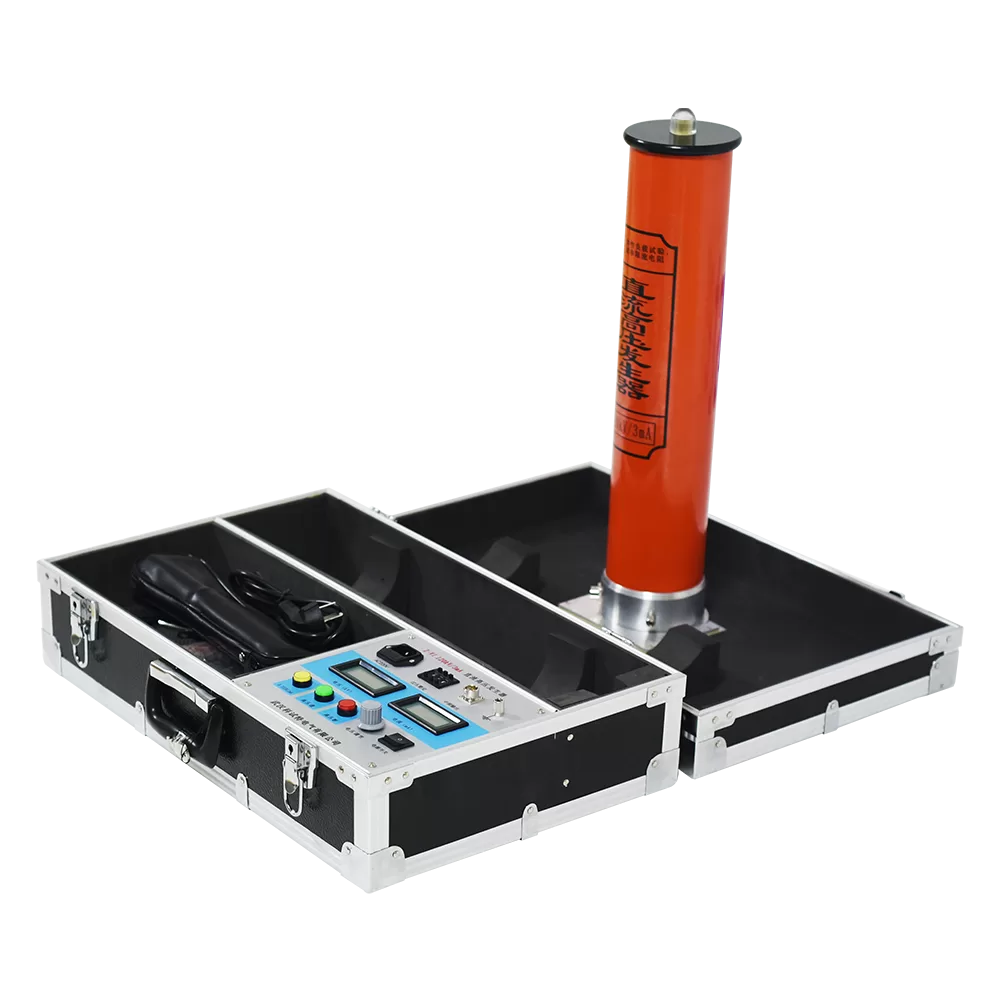

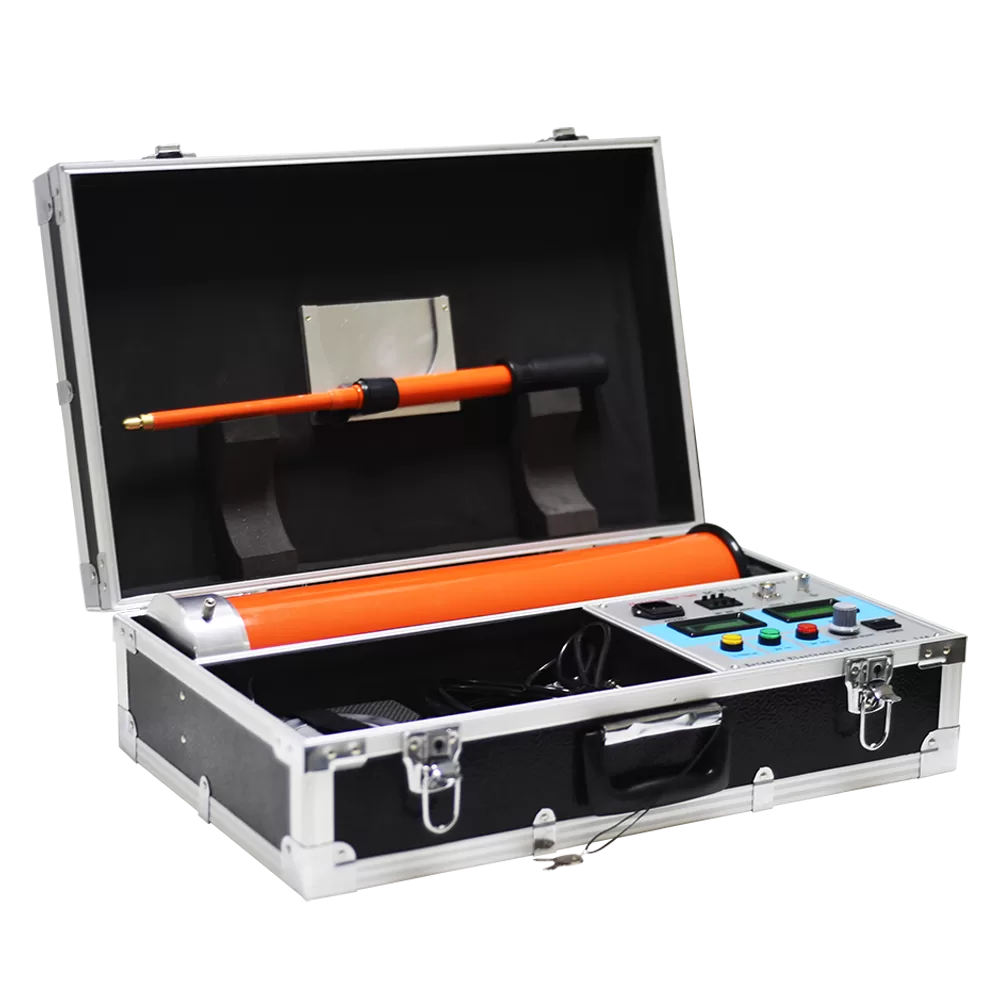

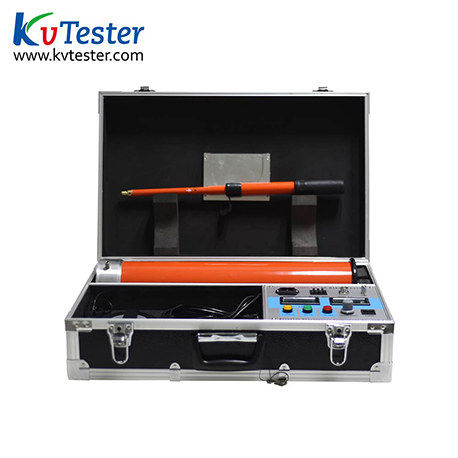

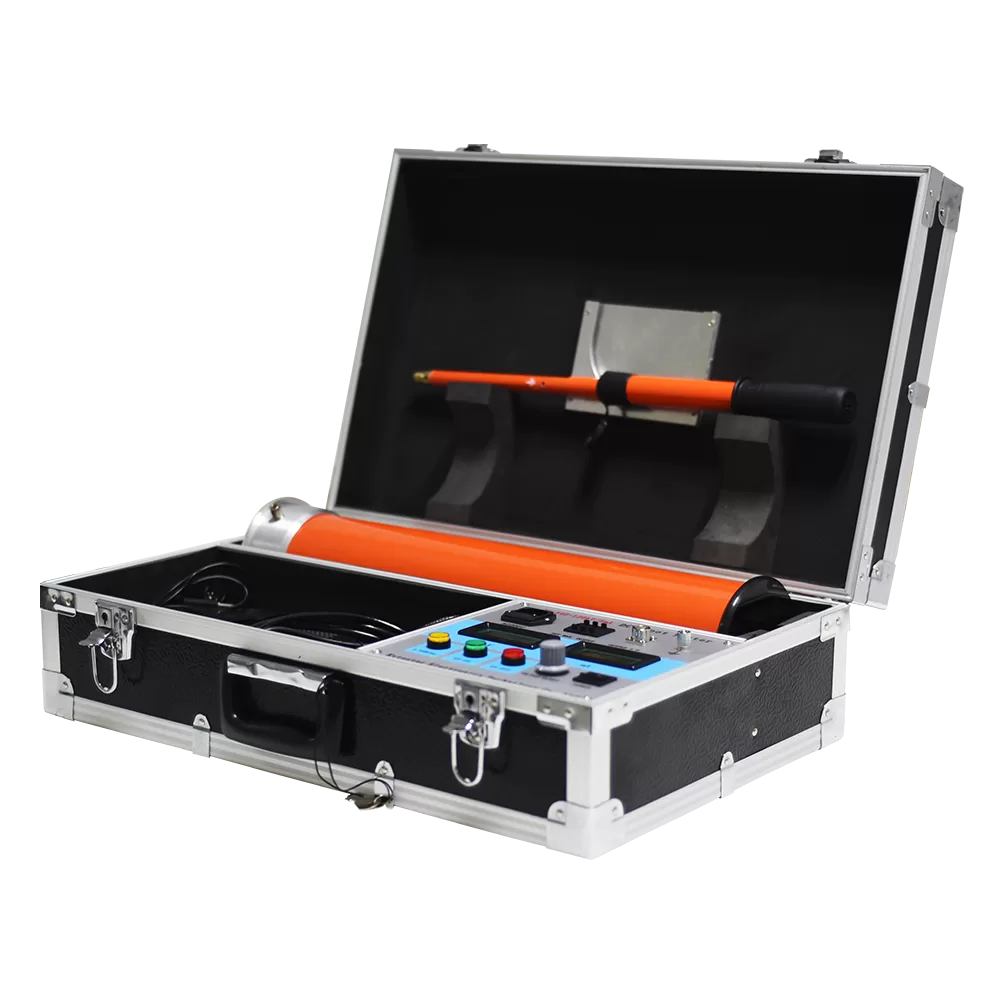

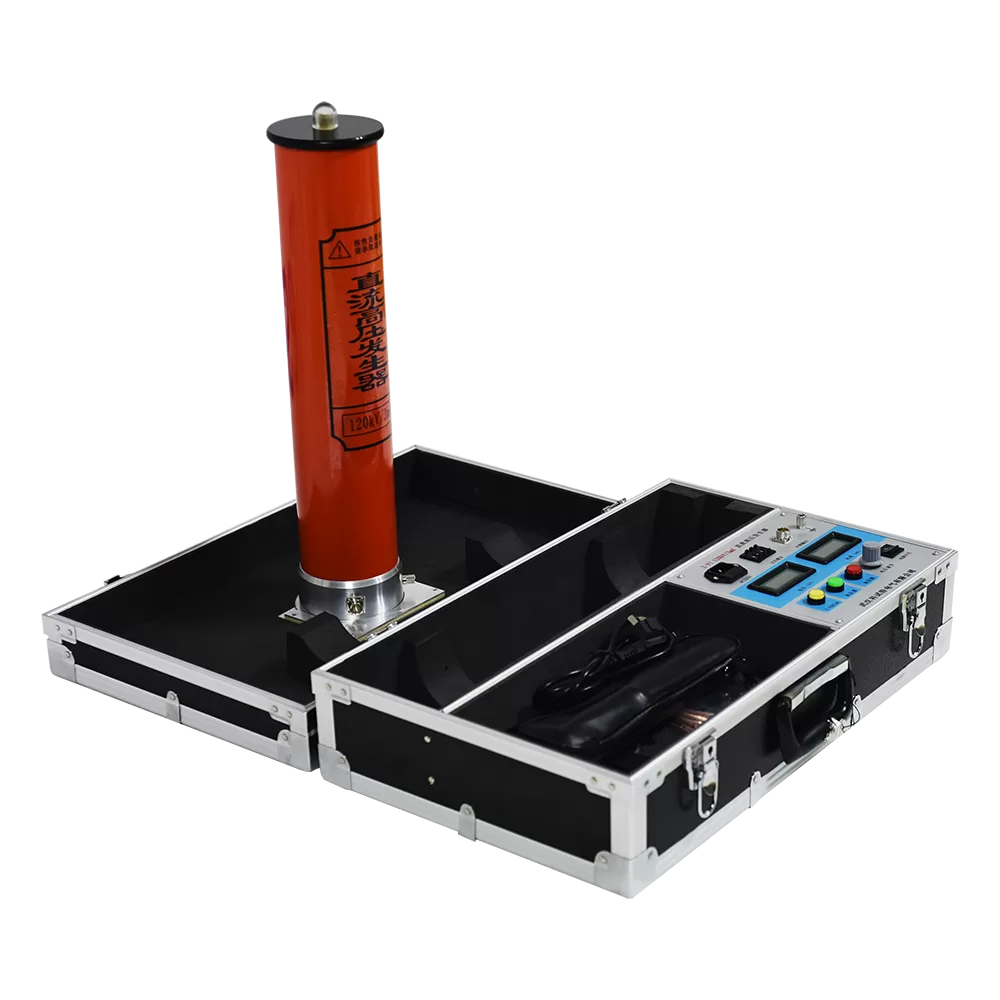

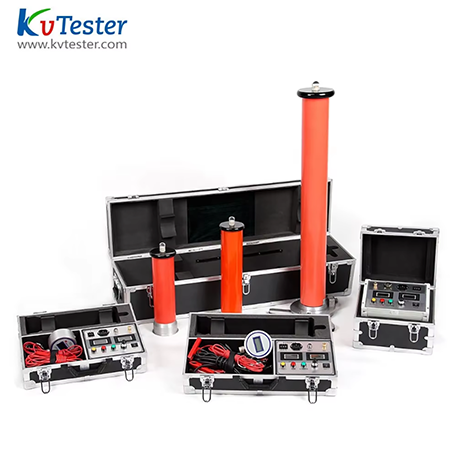

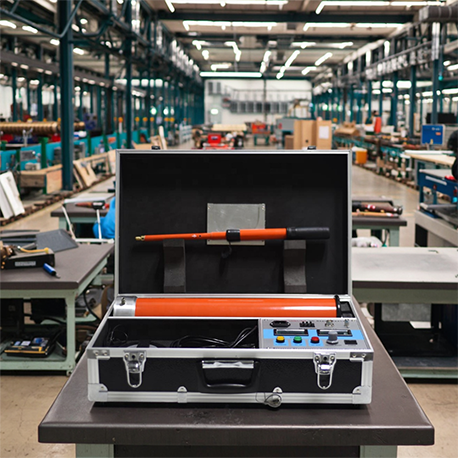

DC high voltage generator

type:ZC-540A

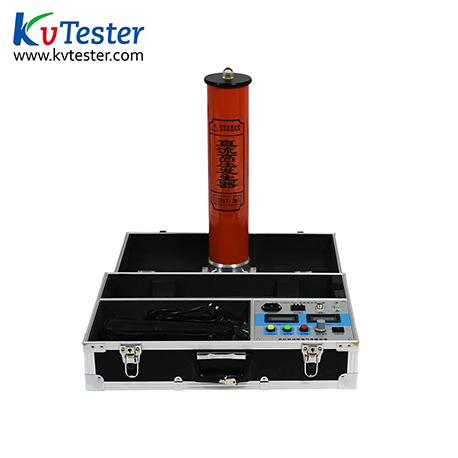

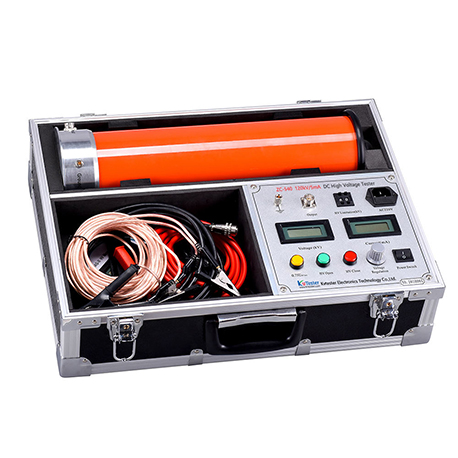

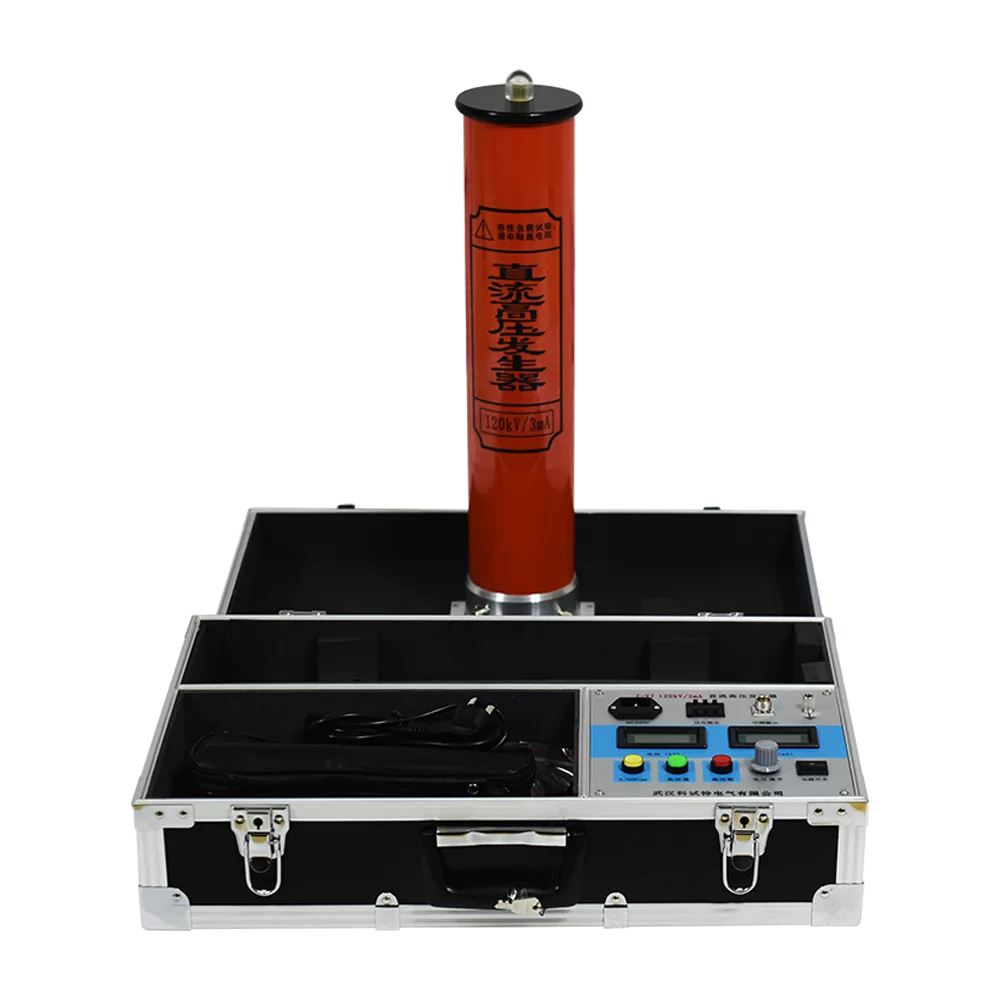

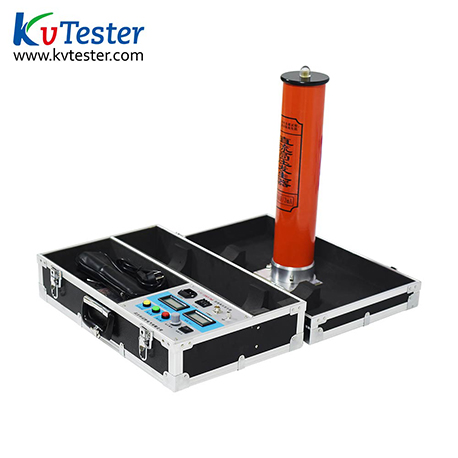

ZC-540A DC high-voltage generator is mainly suitable for conducting DC withstand voltage tests on high-voltage electrical equipment such as zinc oxide lightning arresters, magnetic blowing lightning arresters, power cables, generators, transformers, switches, etc. in the power sector, power departments of factories and mining enterprises, scientific research institutions, railways, chemical industries, power plants, etc. The instrument adopts an intermediate frequency voltage doubling circuit and PWM intermediate frequency pulse width modulation technology, which greatly improves voltage stability. According to electromagnetic compatibility theory, special shielding, isolation, and grounding measures are adopted to discharge the DC high-voltage generator at rated voltage without damaging the instrument.

Online Service

TAGS:

  • Product Introduction

ZC-540A DC high-voltage generator is mainly suitable for conducting DC withstand voltage tests on high-voltage electrical equipment such as zinc oxide lightning arresters, magnetic blowing lightning arresters, power cables, generators, transformers, switches, etc. in the power sector, power departments of factories and mining enterprises, scientific research institutions, railways, chemical industries, power plants, etc. The instrument adopts an intermediate frequency voltage doubling circuit and PWM intermediate frequency pulse width modulation technology, which greatly improves voltage stability. According to electromagnetic compatibility theory, special shielding, isolation, and grounding measures are adopted to discharge the DC high-voltage generator at rated voltage without damaging the instrument.

  • Product Parameters



60/260/360/5120/2120/3120/5
Rated voltagekV606060120120120
Rated current (mA235235
Rated powerW120180300240360600
Weight kg910
Volume mm³465*390*190565*390*190
Height of cylindermm

440

535
Output voltage accuracy ±(1.0%R±2d)
Output current accuracy±(1.0%R±2d)
Ripple coefficient≤0.5%
Work modeIntermittent use, rated load for 30 minutes
Over load capacity

No-load voltage can exceed the rated voltage of 10% to 10 minutes.

Maximum charge current of 1.25 times the rated current.
Power AC220V±10% 50HZ
Working environmentTemperature :  -10-40
Relative humidityThe room temperature is 25 degrees centigrade is not greater than 85% (without dew)
Altitude< 1500 m




  • Product Features

1.Output voltage stability: the use of the latest PWM pulse width modulation technology and voltage current double closed-loop feedback technology, improve the power supply adjustment rate and load adjustment rate, so that the high voltage stability, low ripple. Full range smooth voltage regulator, output voltage high accuracy. The host voltage meter directly displays the voltage value of the load, without additional voltage divider, the wiring operation is simple. Voltage resolution 0.1kV, current resolution 1uA.

2.Comprehensive protection: full range of protection function, with zero position protection, over current protection, over voltage protection, breakdown protection, protection circuit use nanosecond special sensors, the action is fast and reliable, and effectively protect the safety of people and equipment.

3.0.75U function: the intelligent high precision 0.75U function button, press this button, voltage current automatically up to the 0.75U state, which is conducive to the oxidation of zinc oxide arrester test.

4.Zero boost voltage: the boost potentiometer zero, the use of imported multi - loop potentiometer, the process of stable, high - accuracy.

5.Over voltage setting: digital dial switch is used in the setting of over voltage, and the operation is simple, has higher accuracy.

6.Integrated design: use of integrated design, the host and the cylinder placed in a box. Select high frequency high voltage rectifier diode, so small volume, improves the efficiency of the whole machine, easy to carry.

7.Reliable performance: the key components are high performance imported components, the appearance of the cylinder coated with special insulation materials, electrical performance is good, moisture resistance, no leakage.

8.Simple operation: the function of the instrument interface buttons, reasonable layout, clear instructions, easy to learn and use.
