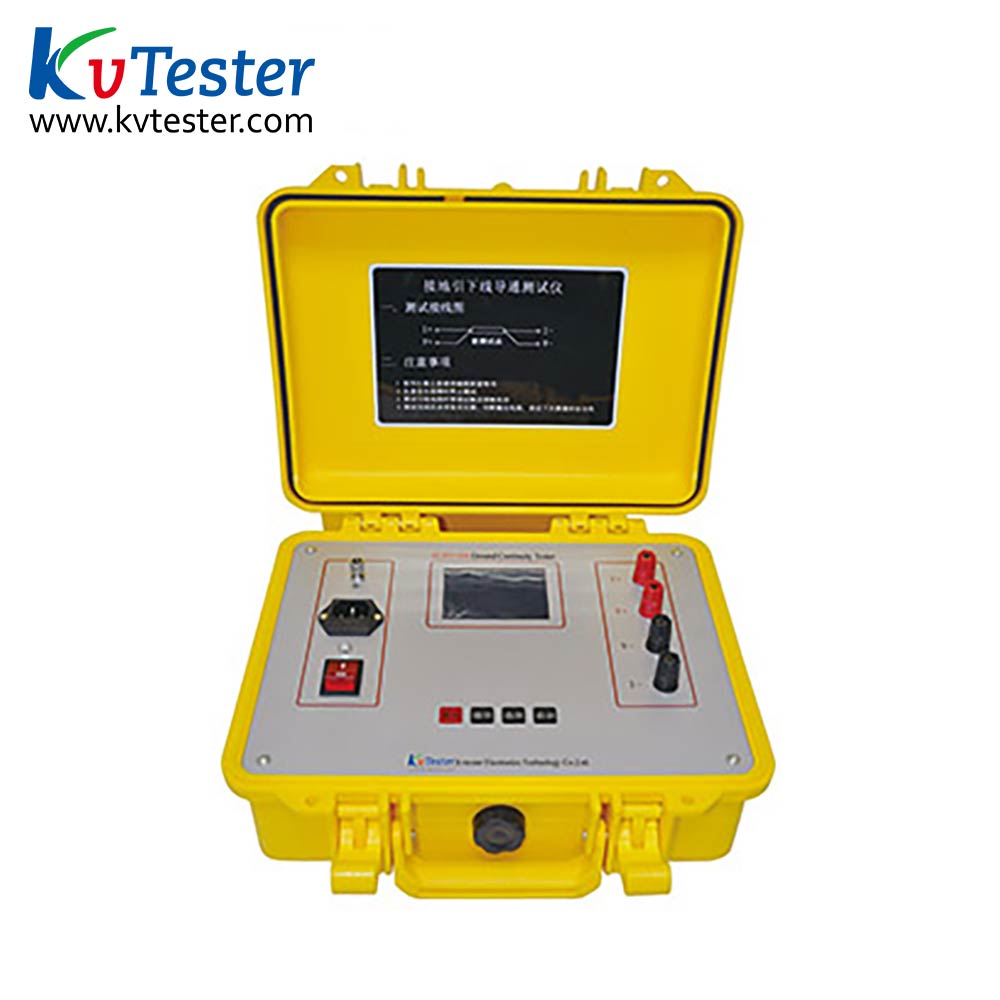

Grounding Lead Conductivity Tester

type:ZCDT-10A
ZCDT-10A Grounding Lead Conductivity Tester is a highly automated portable tester, which is specially used to measure DC resistance of various grounding lead and personal protective grounding wires. The instrument is controlled by a high-performance
Online Service
  • Product Parameters
Measurement Range     1~1999µΩ
Resolution     1µΩ
Test Current     DC 1A, 2A, 5A, 10A.Four fixed current input selections.
Measurement Accuracy  ±(0.5%+2d)
Measuring Radius     50m
Display     LCD backlight display
Work Mode     Continuous
Power Supply     AC 220V±10% 50Hz
Work Environment     Temperature: -10℃~40℃
    Humidity: ≤80 %RH
Dimension     300mm×270mm×200mm
Weight     5kg(Accessories excluded)


  • Product Features
    1. Power technology: For latest power supply technology, the instrument outputs 10A current and can continuously work for a long time which overcomes the weakness of instantaneous current produced by pulsed power. It can effectively puncture the oxide layer of the switches and then get precise results.
    2. Strong anti-interference ability: The last number of test data will stably show in the LCD screen only with ±1 error even in strong Interference situation.
    3. Long service life: All the precise resistances used in the instrument can reduce the temperature's impact on the measurement results and military connectors can enhance vibration resistance.
    4. Simple operation: just pressing "test" key, you can get the measured result. The LCD backlight display is easy for reading and has good reproducibility.
    5. Convenience: Small size, light weight, and easy to carry. Panels and chassis is an organic whole that having good shock resistance.
