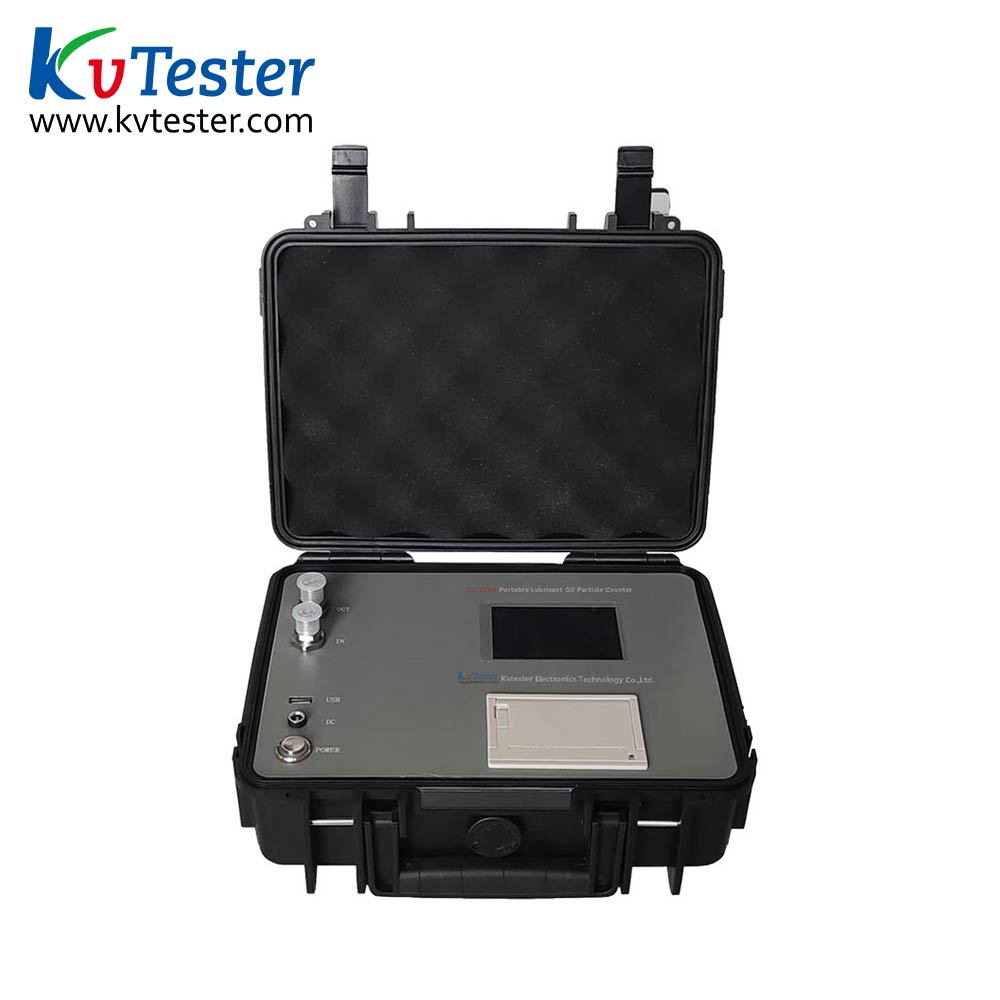

Portable Oil Particle Counter

type:ZC-223A
Online Service
  • Product Introduction

The portable Lubricant Oil Particle Counter adopts the counting principle of light blocking (shading) method specified by the International Hydraulic Standards Committee, and is specially used for the rapid detection device of oil pollution level on site. It has the advantages of small size, light weight, fast detection speed, high accuracy and good repeatability, and can work under high temperature and high pressure and other harsh conditions. Built-in micro-water sensor and temperature sensor can detect water content and oil temperature at the same time of pollution detection. It is applicable to transformer oil (i.e. insulating oil), hydraulic oil, lubricating oil, synthetic oil and other fluids, and can be widely used in aerospace, petrochemical, transportation and port, iron and steel metallurgy, automobile manufacturing and other fields.

Adopting the principle of light blocking (shading) method, using high-precision laser sensor, small size, high accuracy and stable performance. It is suitable for laboratory or field testing, and can also be equipped with a pressure reducing device for online high-pressure measurement, real-time monitoring of particle contamination in the oil system.



  • Product Parameters
Light sourcesemiconductor laser
Offline detection speed5~60mL/min
Viscosity of sample tested offline≤ 100cSt (pressure chamber can be selected as optional accessory when the viscosity is high)
Online detection pressure0.1~0.6Mpa (the maximum pressure can reach 42Mpa when select the optional pressure reducing device)
Particle size range0.8~600μm
Sensitivity0.8μM or 4μm(c)
Limit coincidence error40000 grains/ml
Counting volume1~999ml
Counting accuracyerror less than ± 10%
Test interval1 second ~ 24 hours
Test sample temperature0~80 ℃
Reference value of water activity0~1aw (± 0.05aw)
Water content0~360ppm (± 10%)
Protection gradeIP67
InterfaceUSB interface
Data storageprovide 1000 sets of data storage space and support USB flash disk storage
Working temperature-20~60 ℃
Power supplyAC 220V
Net Weight5.4kg
Size365*295*170mm


  • Product Features

1、It can be externally connected to the pressure chamber to form positive/negative pressure, so as to realize the detection of high-viscosity samples and sample degassing.

2、Built-in data analysis system can display the real data of particle size of each channel and automatically determine the sample grade.

3、The pipeline is made of 316L and PTFE materials to meet the detection of various organic solvents and oils.

4、With volume flushing and duration flushing mode, it is convenient for users to use and maintain the equipment.

5、Built-in ISO4406, NAS1638, SAE4059 (integral and differential), GJB420A, GJB420B Г OCT17216, GB/T14039 and other particle pollution level standards.

6、Built-in calibration function, which can be calibrated according to GB/T21540, ISO4402, GB/T18854 and other standards.

7、Built-in data analysis system can automatically determine the sample grade according to the standard, with automatic data processing and printing functions.

8、Built-in micro-water sensor and temperature sensor.

9、With preset, input, modification and storage functions, easy and fast operation.

10、Large storage, which can be stored in the internal or external storage device of the instrument.

11、Embedded design, high-strength shell, easy to carry.
