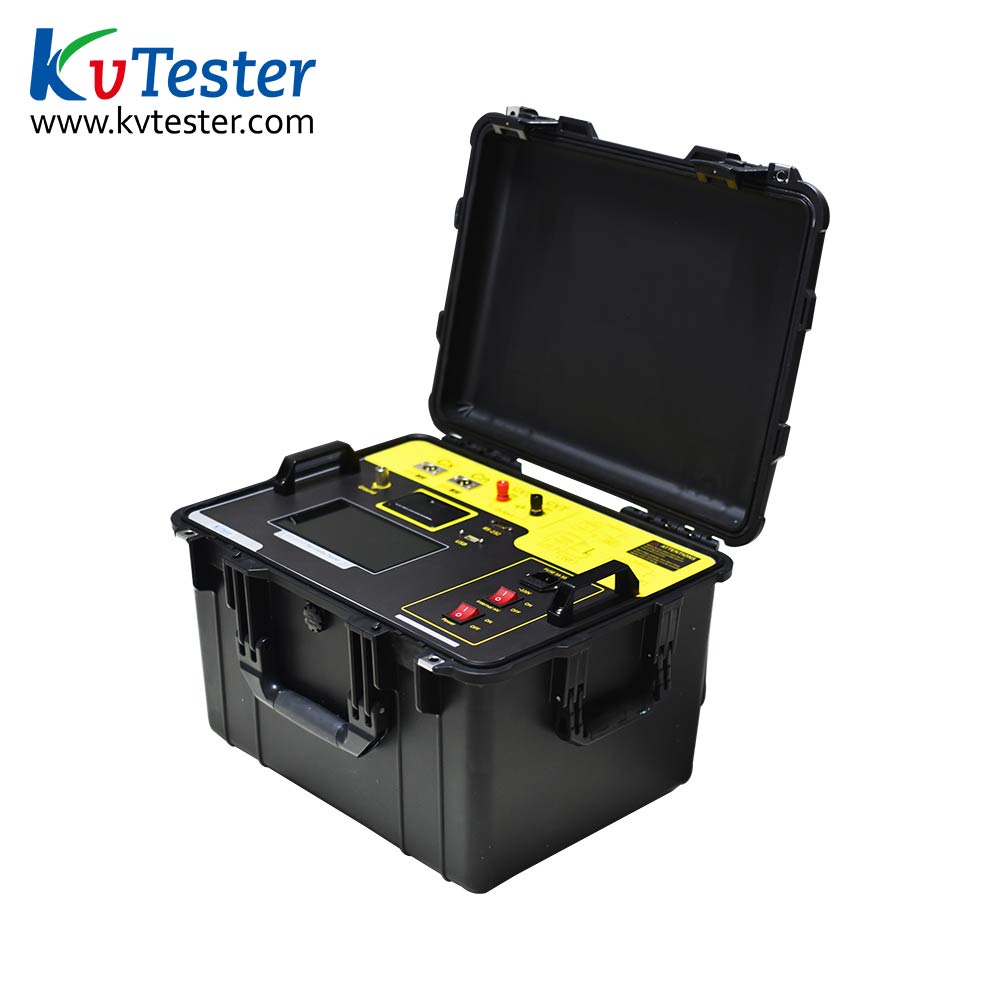

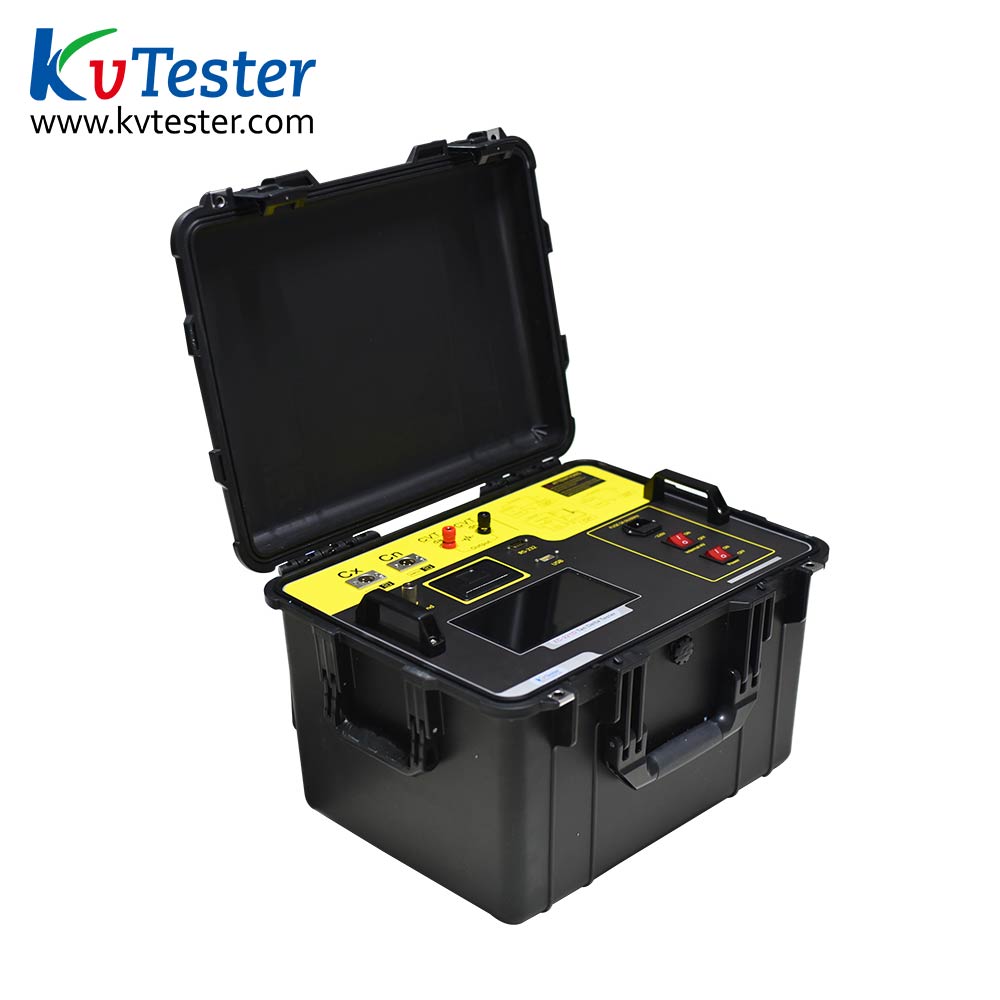

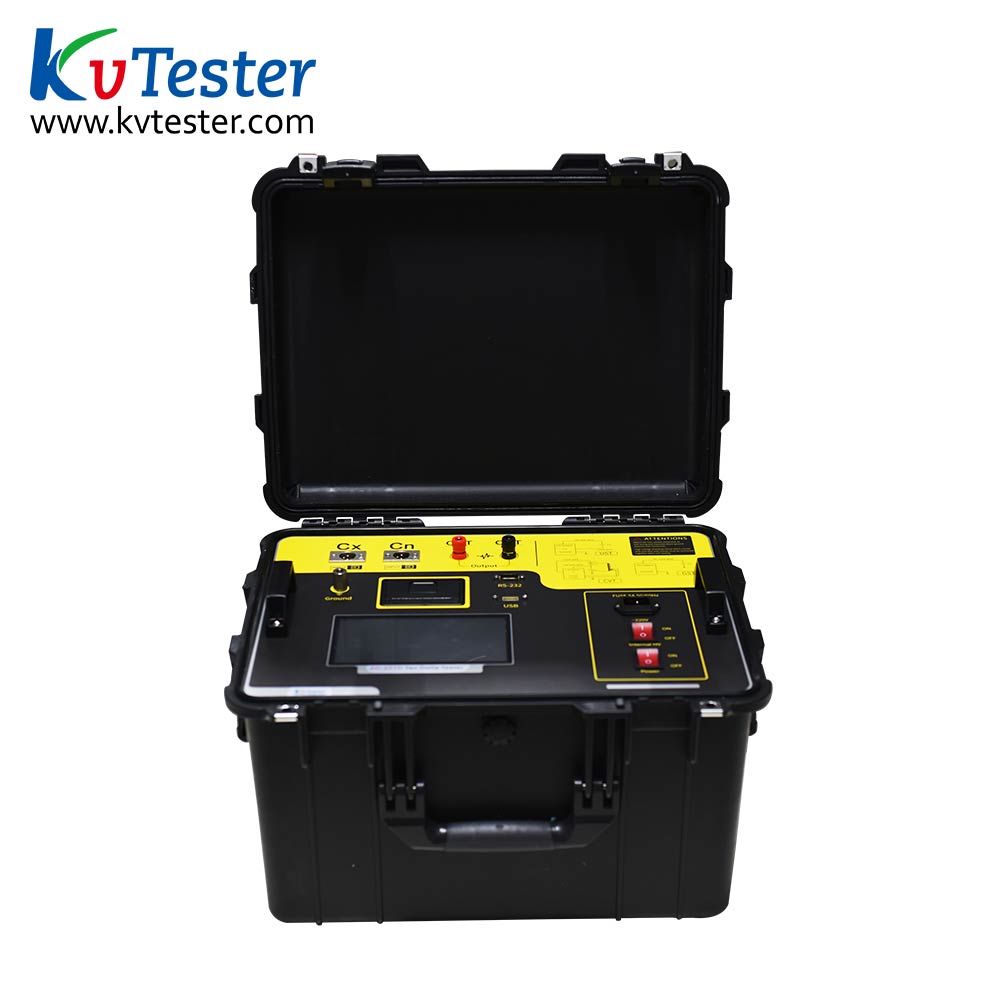

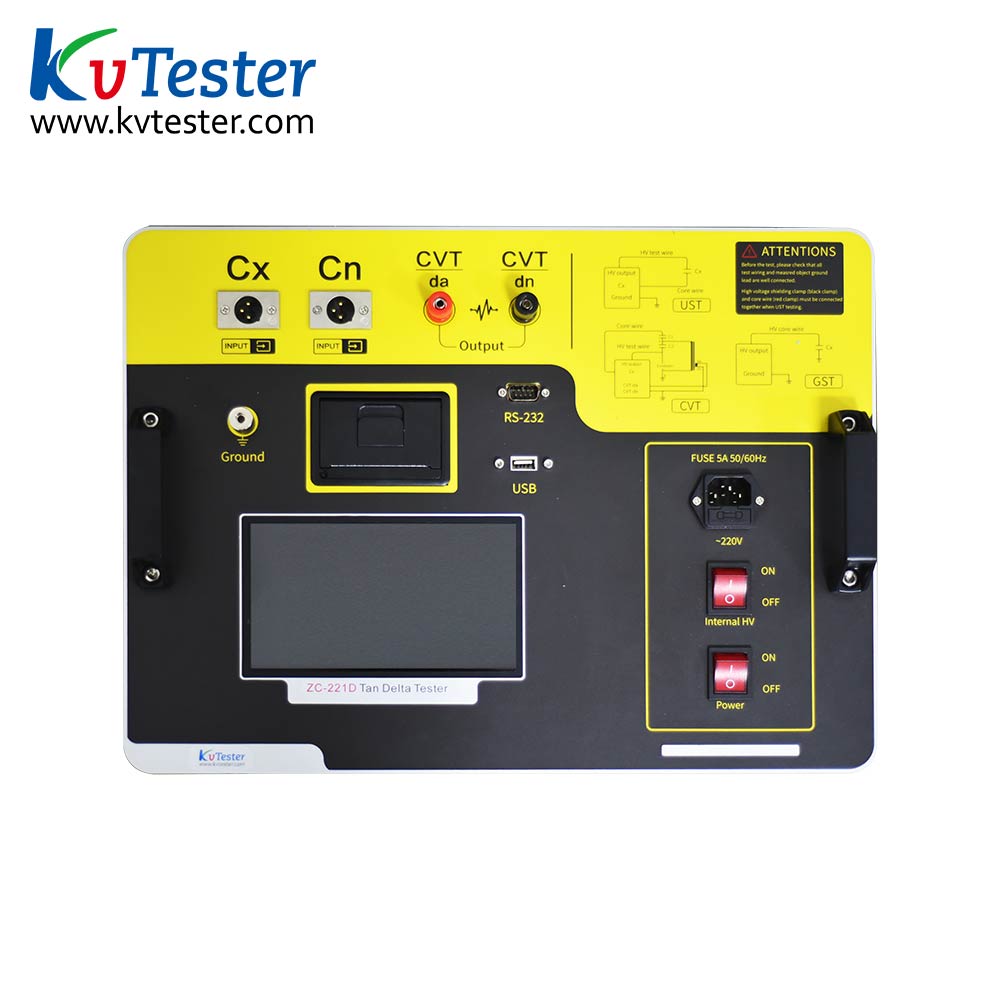

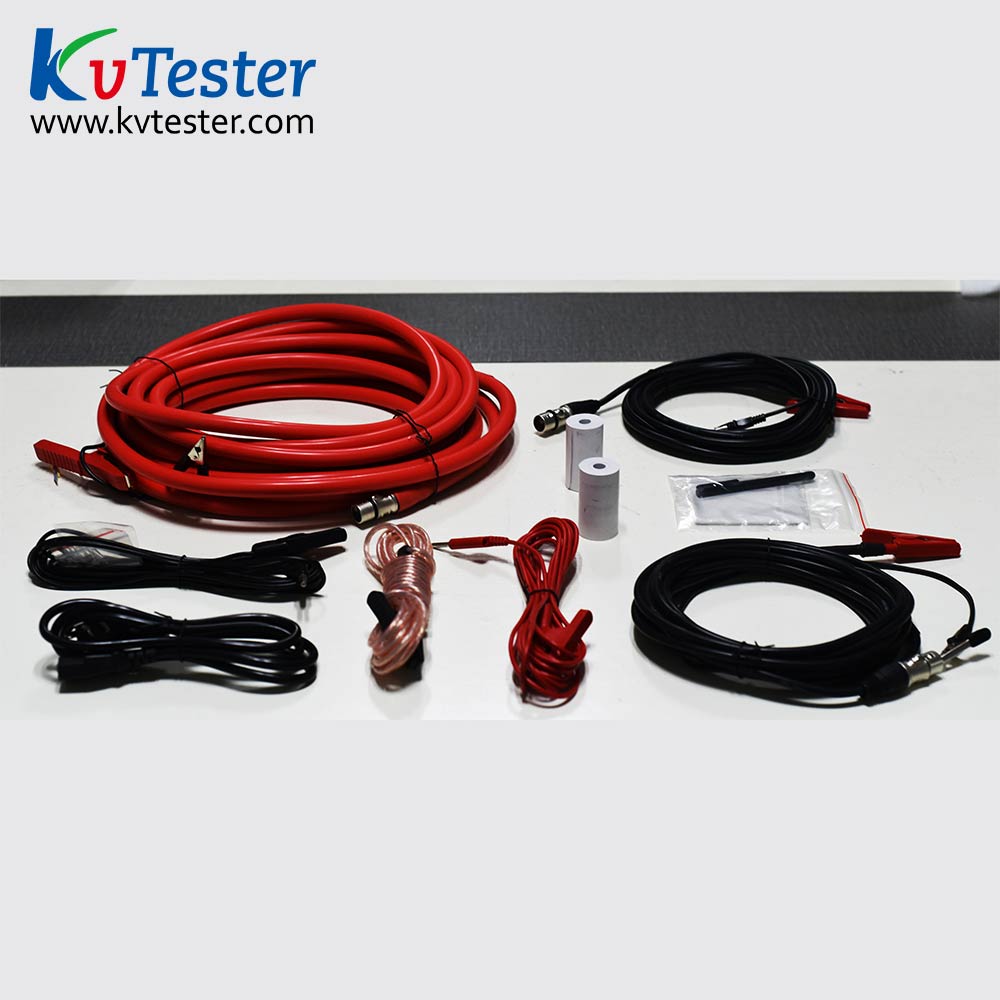

Automatic anti-interference dielectric loss tester

type:ZC-221D(Not Available)

ZC-221D fully-automatic anti-interference dielectric loss tester breaks through the traditional bridge testing method and adopts variable frequency power technology, single chip and modernized electrical technology to carry out automatic frequency shift, analog-to-digital conversion and data computing. It features strong anti-interference capacity, high test speed, high precision, automatic digitization and easy operation.

Online Service
  • Product Introduction

ZC-221D fully-automatic anti-interference dielectric loss tester breaks through the traditional bridge testing method and adopts variable frequency power technology, single chip and modernized electrical technology to carry out automatic frequency shift, analog-to-digital conversion and data computing. It features strong anti-interference capacity, high test speed, high precision, automatic digitization and easy operation. It adopts high-power switching power supply, which outputs 45Hz and 55Hz pure sine wave and automatically increase the voltage to a maximum value 10 KV. It can filter 50Hz interference automatically, and it is applicable to the site test of substation and other places with large electromagnetic interference. This methods is extensively applied in dielectric loss measurement of transformer, mutual inductor, reactor, bushing, capacitor, arrester and others equipment  in power industry.


  • Product Parameters
Accuracy: Cx±(reading×1%+1pF)
tgδ±(reading×1%+0.00040)
Anti-interferenceVariable frequency anti-interference, the above accuracy can be reached under 200% interference
Capacitance range: Internal HV3pF~60000pF/12kV 60pF~1μF/0.5kV
External HV3pF~1.2μF/12kV60pF~30μF/0.5kV
ResolutionMaximum 0.001pF, 4 valid figures
tgδ range

unlimited, 0.001% resolution, automatic identification for capacitance, inductance and resistance of three tested

 articles

Test current range10μA~1A
Internal HV: Set voltage range0.5~12kV
Maximum output current200mA
Buck-bust methodcontinuous stepless regulation
Test frequency45, 50, 55 single frequency ,45/55Hz automatic dual variable frequency
 Frequency accuracy±0.01Hz
External HVIn case of UST, maximum test current is 1A, and power frequency or variable frequency is 40-70Hz,In case of GST, maximum test current is 10kV/1A, and power frequency or variable frequency is 40-70Hz
CVT self-exciting low voltage outputOutput voltage 3~50V, output current 3~30A
Measuring durationAbout 40s, depending on measuring method
Input power supply180V~270VAC, 50Hz/60Hz±1%, supplied by alternating current or generator
Computer interfaceStandard RS232 interface
PrinterWH-A7 mini-type thermal printer
Environment temperature-10℃~50℃
Relative humidity<90%
Overall dimension460×360×350mm
Weight28kg


  • Product Features

1.The instrument adopts complex number current method to measure capacitance, dielectric loss and other parameters. The measured result is highly accurate and it is easy to realize automatic measurement.

2. The instrument adopts variable frequency technology to eliminate 50Hz/60Hz power frequency interference. So a reliable data will be reachable even under the strong electromagnetic interference.

3. The instrument adopts large screen LCD . In the process of testing, Chinese menu prompt is visualized and easy to operate.

4. The instrument is easy to operate and the measuring process is controlled by microprocessor. Once a suitable measuring method is selected, the data measurement will complete automatically under the control of microprocessor.

5. The instrument is designed to be an integrated model with reference capacitor and HV power supply in it, enables site test measurement and reduces site wiring.

6. The instrument is equipped with CVT testing function, which can achieve CVT self-exciting testing without external accessories and measure the capacitance and dielectric loss of C1 and C2 by at a time.

7. GST measurement adopts ivddv technology and avoids unstable data provided by previous GST measurement.

8. The instrument provides low voltage shell function of GST. When the bus of 220kV CVT is grounded, dielectric loss measurement can be conducted for C11 without removing 10 kV GST.

9. The instrument has a function of measuring high-voltage dielectric loss. It can carry out dielectric loss test with over 10kV with the help of voltage transformer or series resonance.

10. The instrument has a ground-fault protection function. In case that the instrument is not grounded or grounded incorrectly, the instrument will refuse to enter into normal procedure and output HV. As for the over-current protection function, it will protect the instrument from damage when the tested article is in a short circuit or breakdowns.

11. The instrument has a function of electric shock protection. When the instrument operator suffers an electric shock due to incaution, the instrument will cut off the HV immediately and thus ensure the security of operator.
