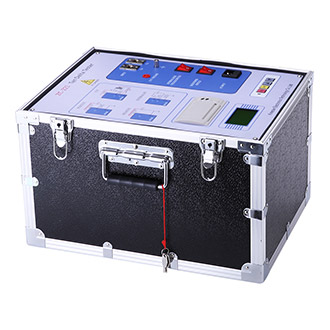

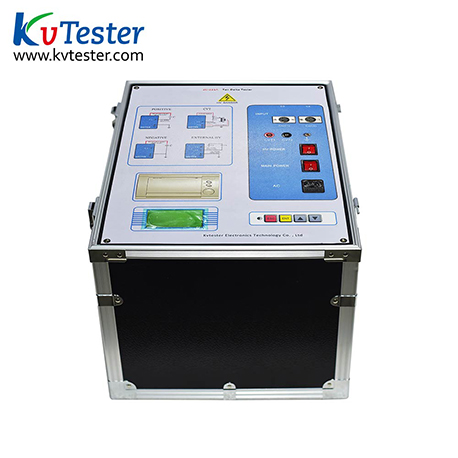

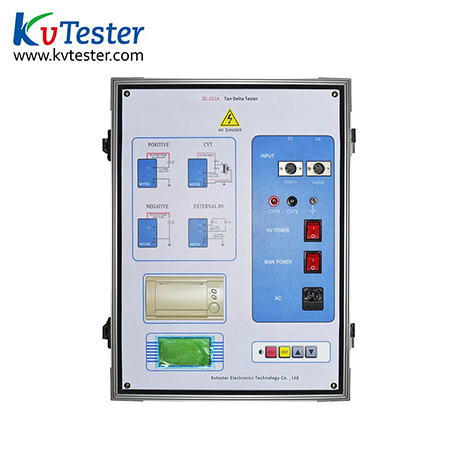

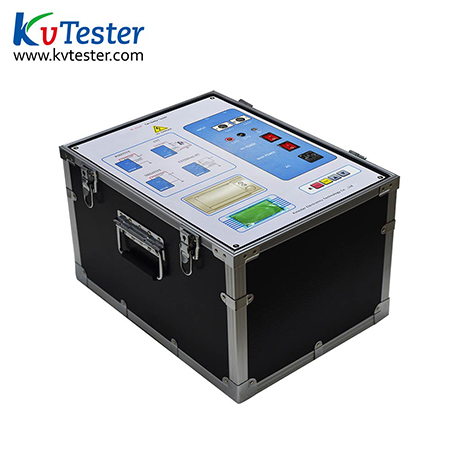

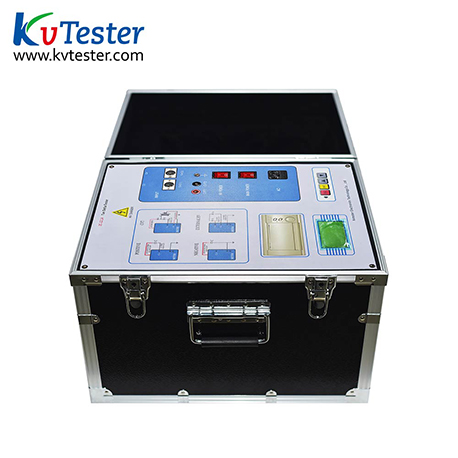

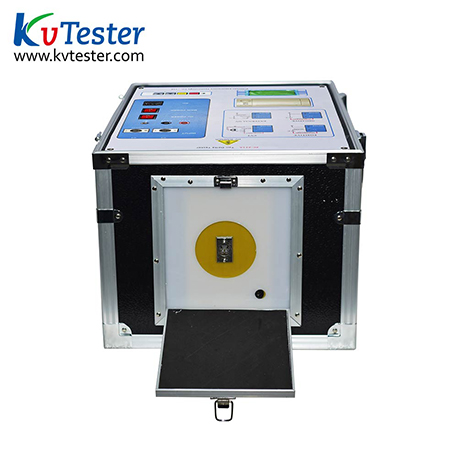

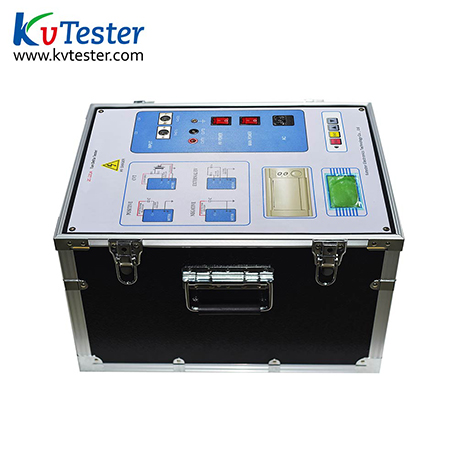

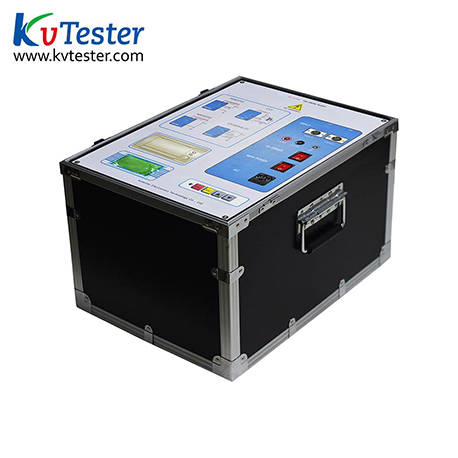

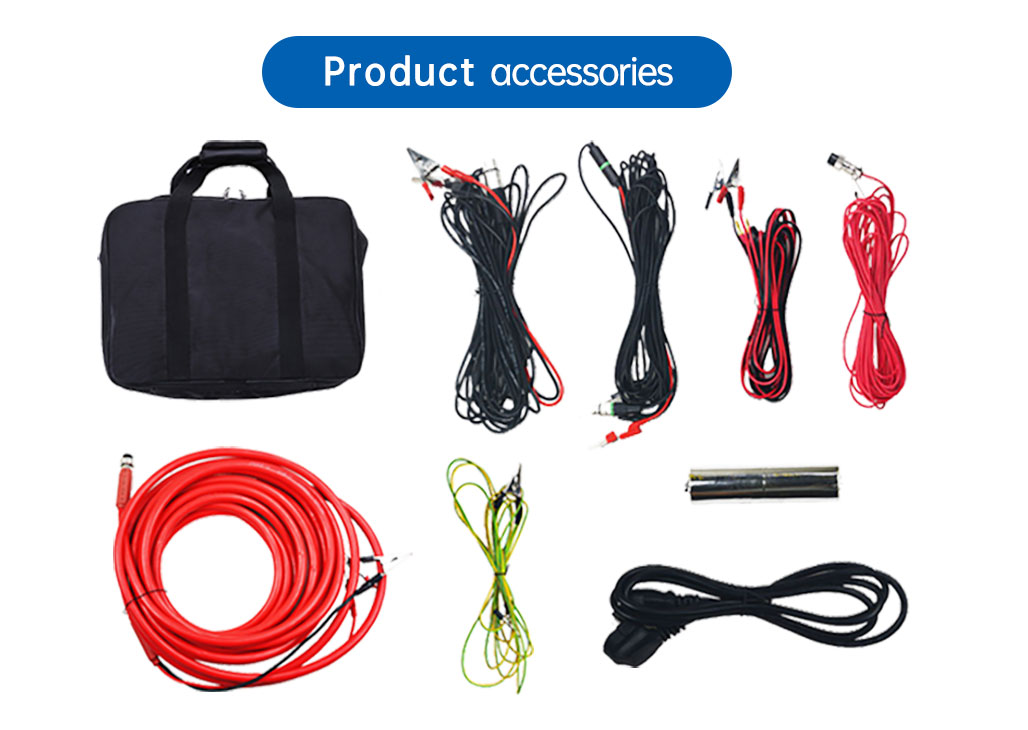

Tan Delta Tester

type:ZC-221A
Online Service
  • Product Introduction

    This device is a high accuracy tester to test tangent of dielectric loss and capacitance of various HV electrical equipments for generations and substations. It also applies to workshop, laboratory and R&D institutions.

  • Product Parameters
High voltage output: 0.5~10kV Each files to increase the 500V, a total of twenty files, capacity: 1500VA
Accuracy tgδ:±(reading×1.0%+0.04%)
Cx:±(reading×1.0%+1PF)
Resolving power tgδ:0.01% Cx:1pF
Measuring range 0.1%<tgδ<100%
3PF<Cx<60000PF
When it is 10kV,Cx≤30000PF
When it is 5kV,Cx≤60000PF
 Power supply AC 220V±10% 50±1Hz
Measurement method Power frequency:50Hz
Pilot frequency:45Hz/55Hz  Automatic frequency conversion
Harmonic adaptation ≤3%
Service condition -15℃~50℃ relative humidity<80%

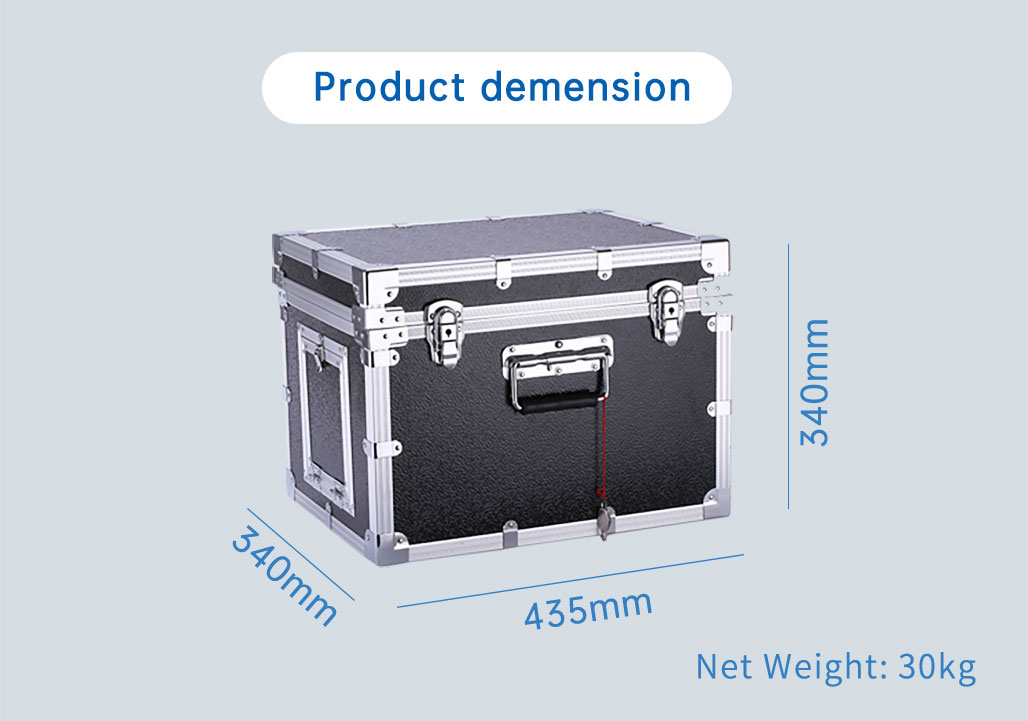

Outline dimension 460mm×345mm×350mm
Weight 35Kg


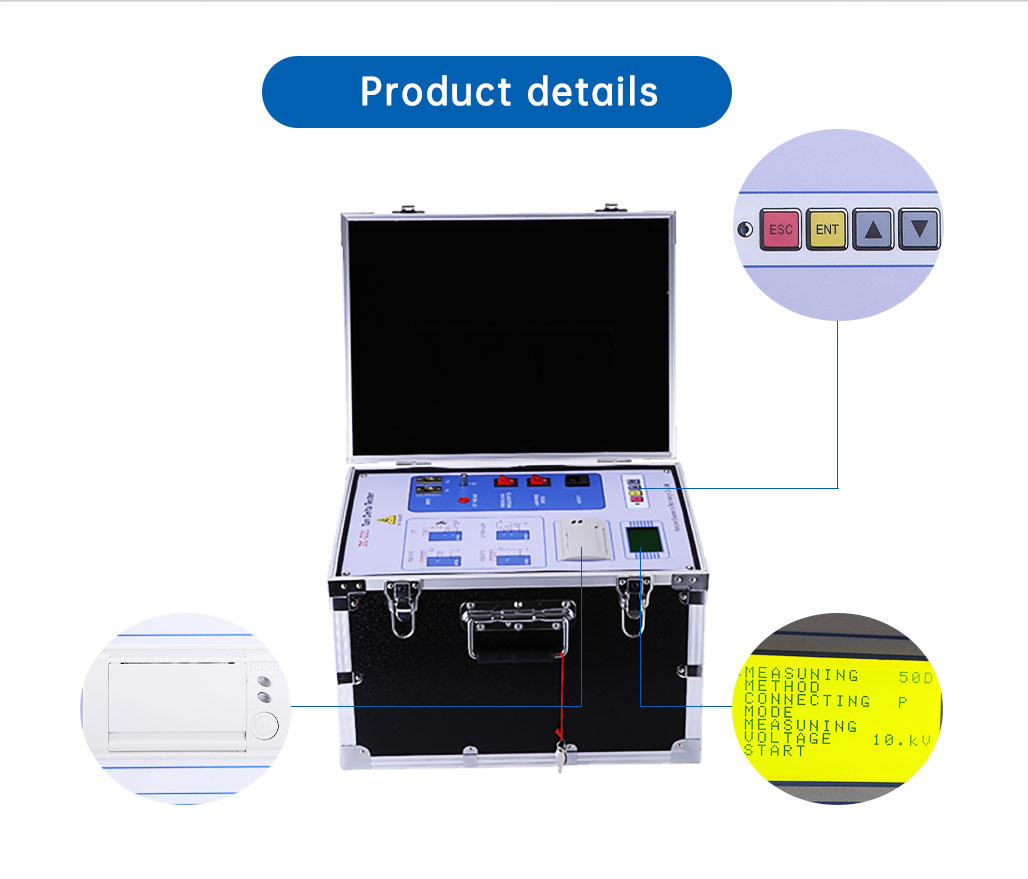

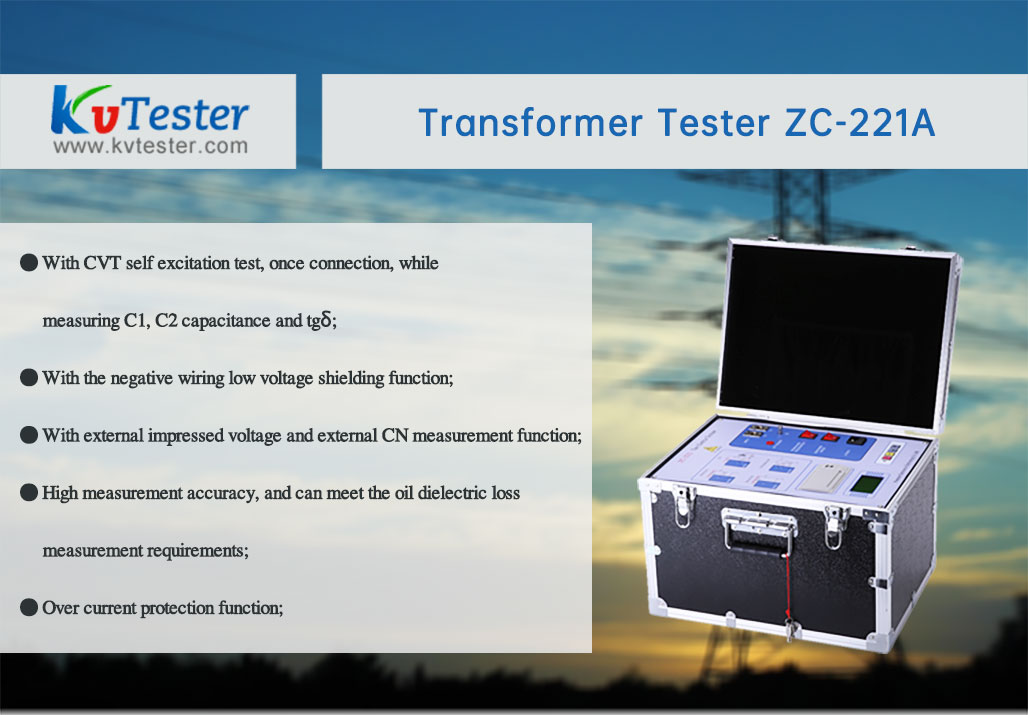

  • Product Features
    1. LCD display, mass storage data, the instrument data can be exported through the U disk, and can generate a work report.
    2. Many test modes: internal high voltage, external high voltage, internal standard, external standard, positive connection method, reverse connection method, self excitation method in a variety of ways to test; under the high pressure of outside the standard can do the  high voltage of more than 10kV) dielectric loss test.
    3. CVT test one-step process: to test the full sealed CVT (capacitive voltage transformer) C1, C2 dielectric loss and capacitance, to achieve the C2, C1 testing at the same. The instrument can also test the CVT ratio and voltage angle difference.
    4. Multiple protections safe and reliable: with input voltage fluctuation, output short circuit, overvoltage, over current, temperature and other multiple protection measures.
    5. This transformer tester can be used to measure ungrounded or grounded high voltage electrical equipment and to measure the capacitor's capacitance voltage transformer tgδ and main capacitors C1 and C2.
    6. The transformer tester is equipped with a high-voltage transformer and adopts safety protection measures such as lightning protection and zero switch.
