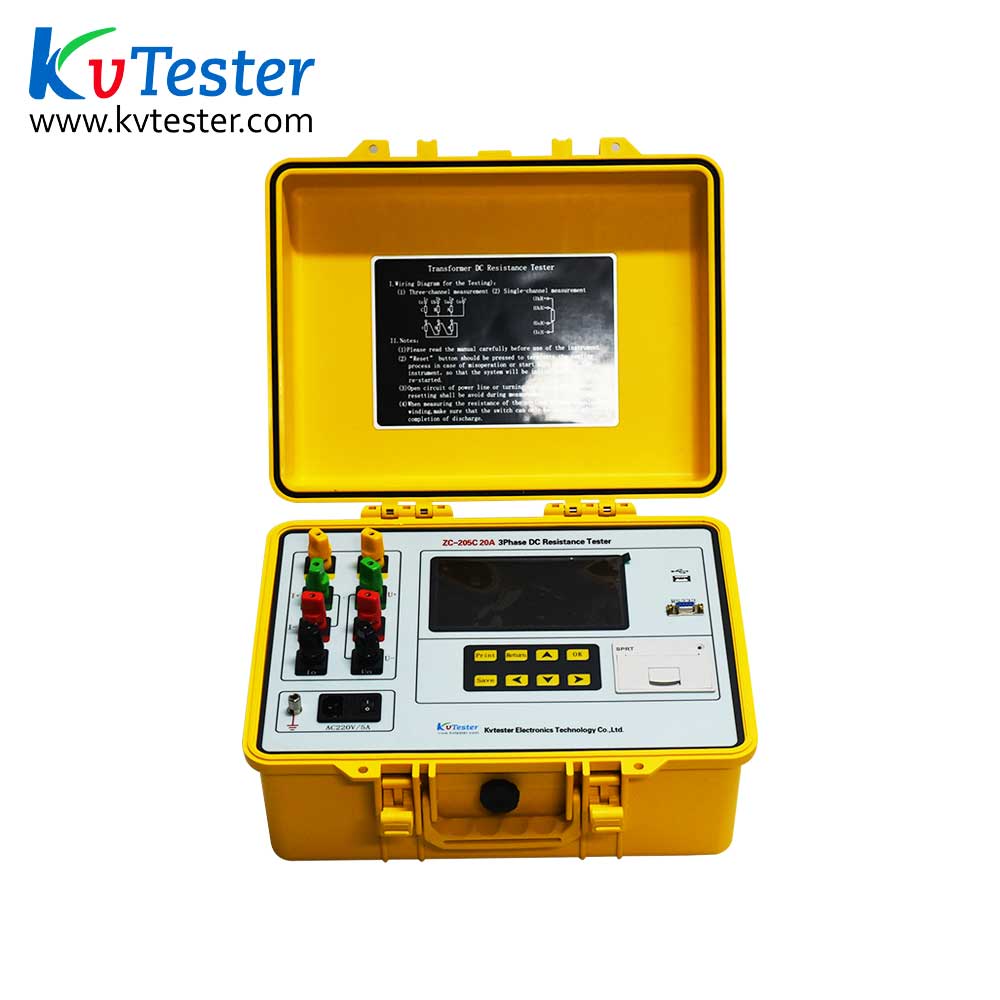

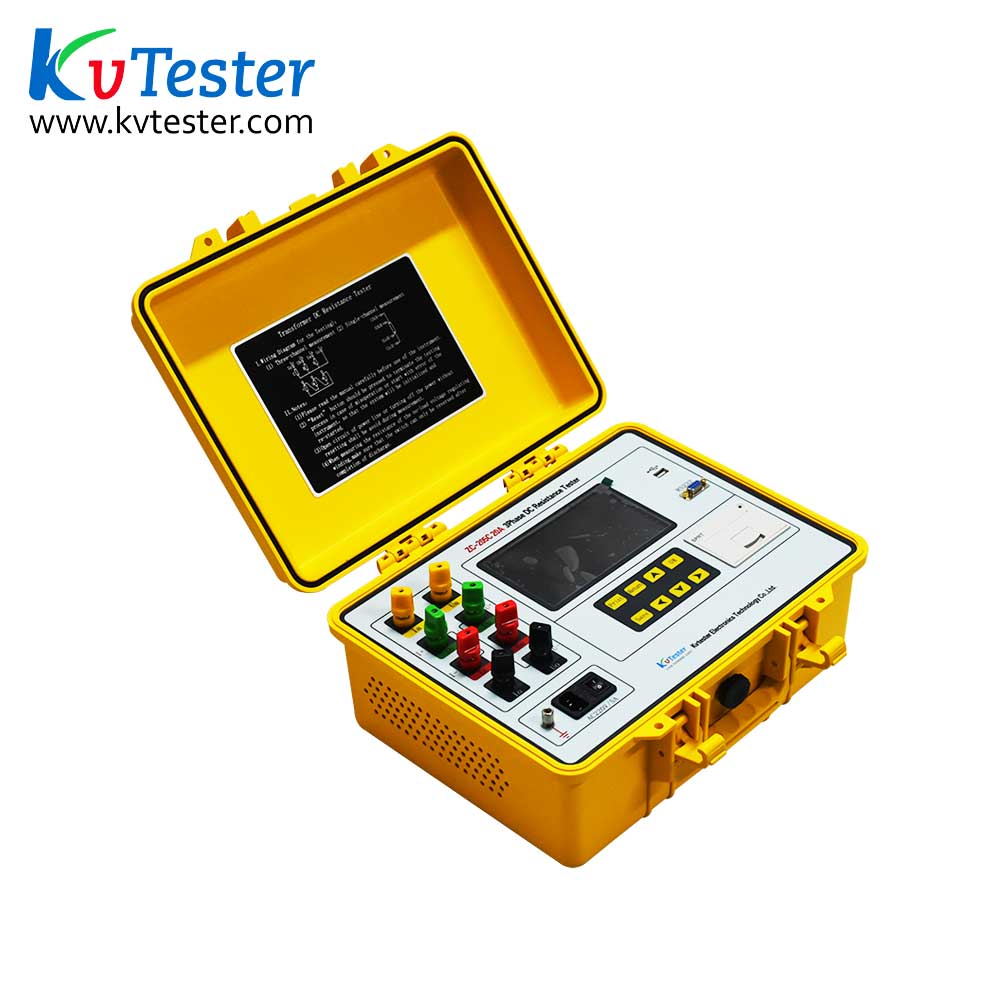

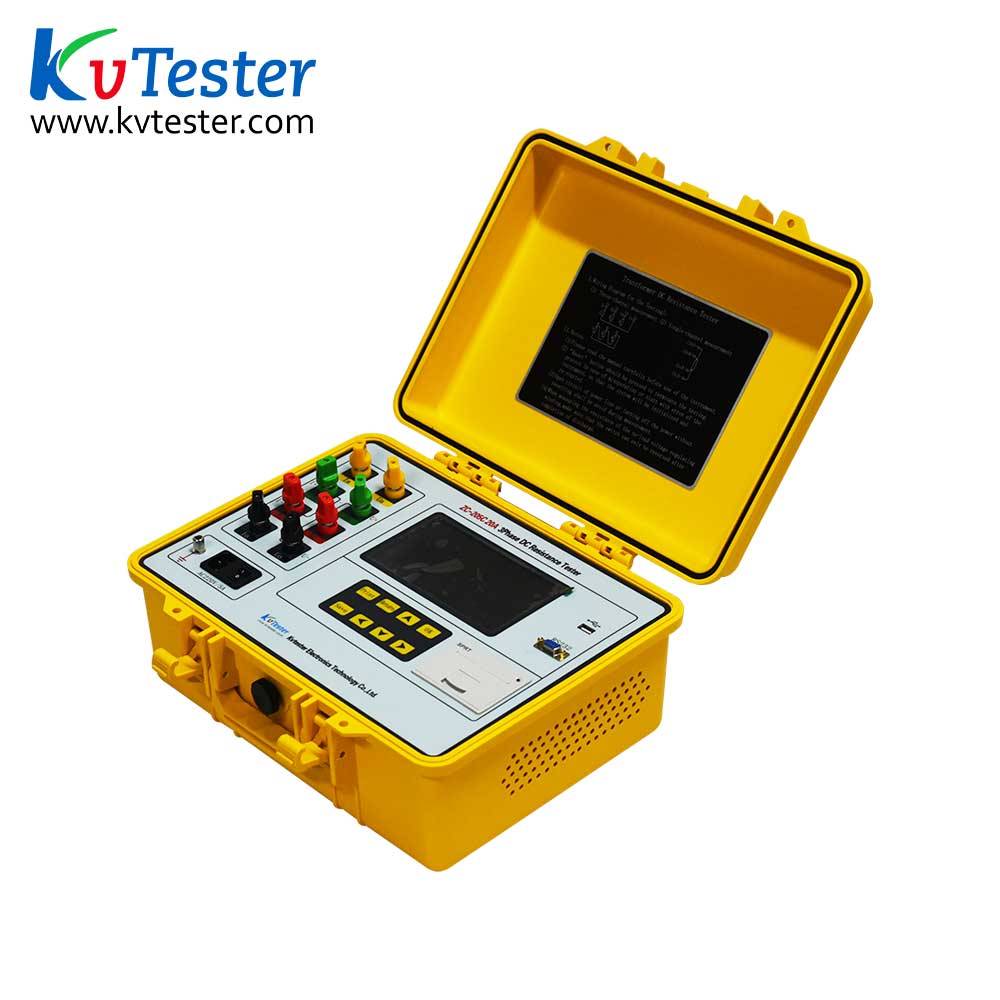

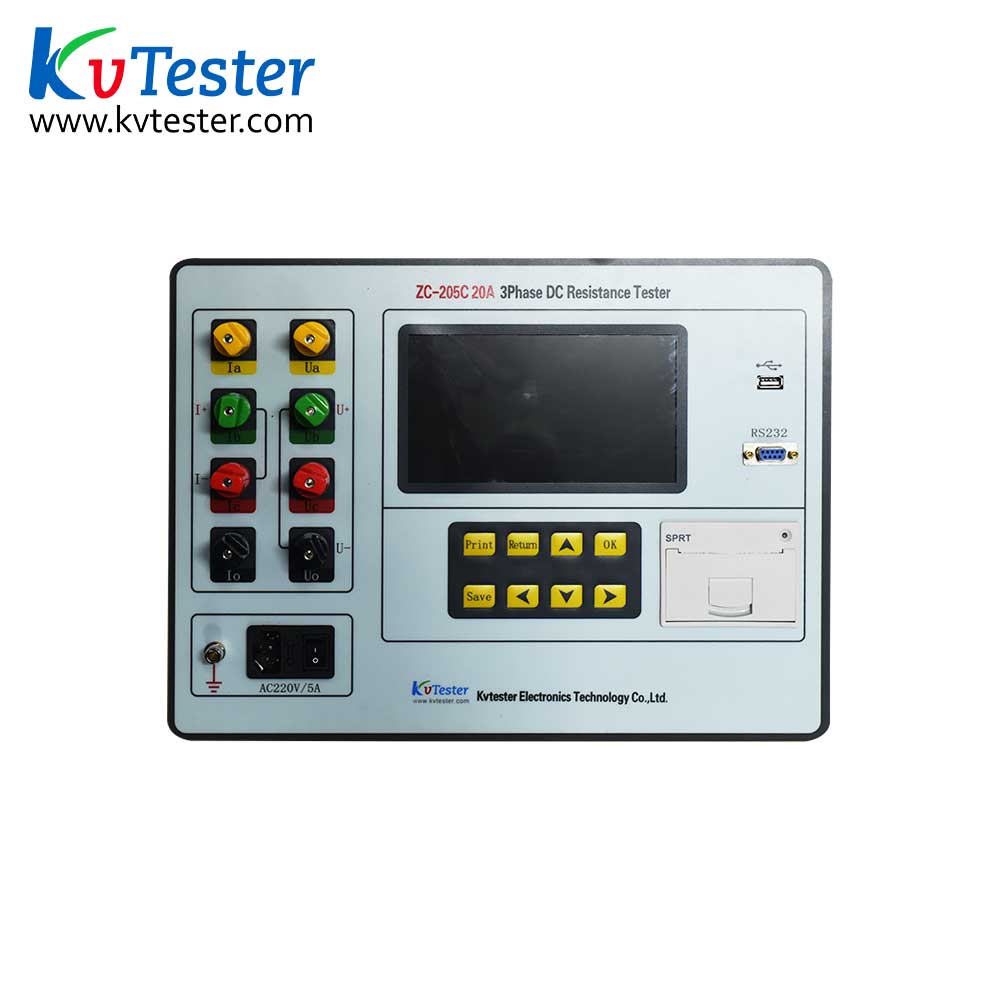

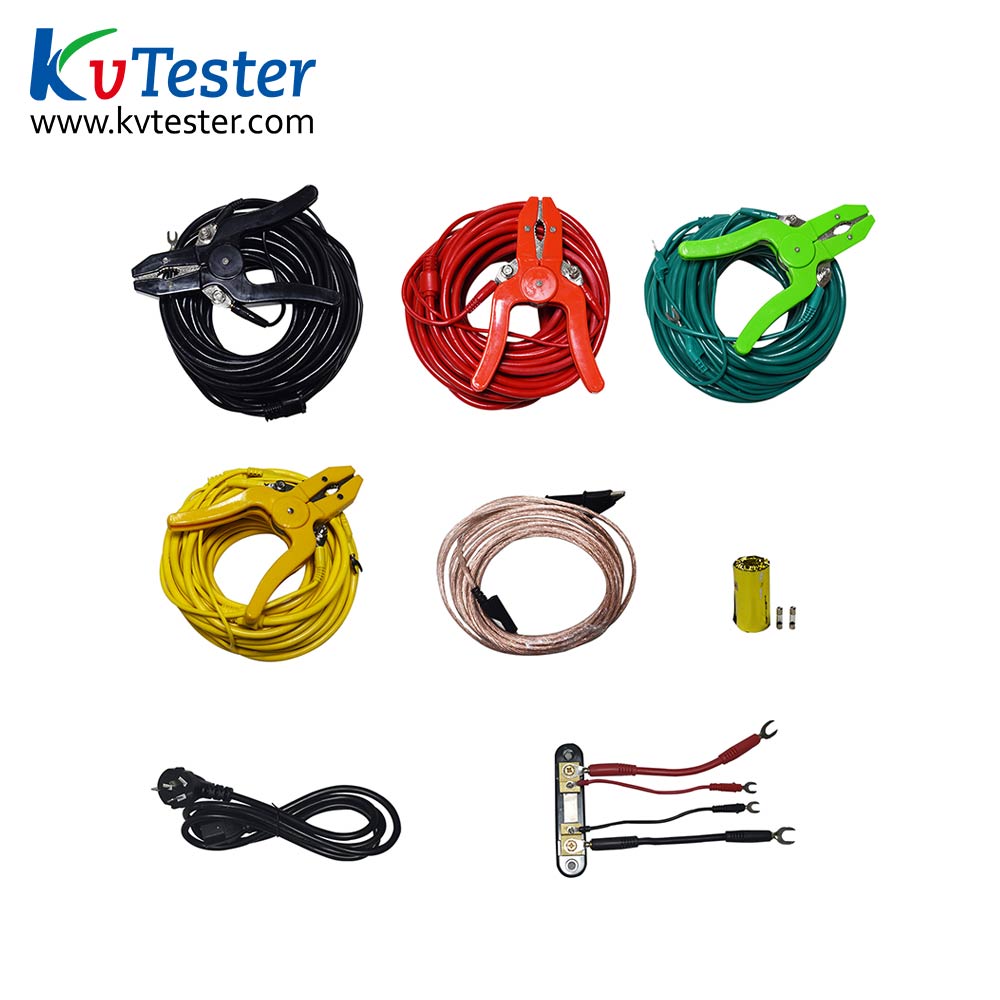

Three-Phase DC resistance Tester

type:ZC-205C-20A
Online Service

TAGS:

  • Product Introduction

ZC-205C Three-phase DC resistance tester is optimized designed to test  three-phase winding DC resistance of large-capacity transformer, is the latest generation of transformer DC resistance tester. ZC-205C can test the three-phase winding DC resistance of the transformer at the same time, adjust the tap-changer directly, no discharging is required for the on-load tap-changing transformer. The test time is one third of the traditional single-phase test, which can greatly shorten the working time and labor intensity.

  • Product Parameters
Type     ZC-205C
Usage    DC resistance Test of transformer
Working power supply Input voltage     185Vac~250Vac
Allowable input voltage     85Vac~264Vac
Frequency     50/60Hz
Allowable frequency     45Hz~65Hz
Input power     1000W
Joint     Standard AC socket 60320
Maximum test current Single channel test     40A
Three channel test     20A
Measuring range Single channel test     1A:10mΩ~20Ω
    5A:1mΩ~4Ω
    10A:1mΩ~2Ω
    20A:1mΩ~1Ω
    40A:1mΩ~0.5Ω
Three channel test     1A:10mΩ~6Ω(Each phase)
    5A:1mΩ~1Ω(Each phase)
    10A:1mΩ~0.6Ω(Each phase)
    20A:1mΩ~0.3Ω(Each phase)
Measurement accuracy Single channel test    ±0.2%(Full scale)±2 Words
Three channel test     ±0.2%(Full scale)±2 Words
Resolution Single channel test     0.1µΩ
Three channel test     0.1µΩ
Other properties Display     LCD, High speed thermal printer
Data storage     255 groups
Environmental conditions Operating temperature     -0℃~+40℃
Storage temperature     -10℃~+50℃
Relative humidity     5%~95%,No dewing
Physical characteristics Size     200×400×280mm3
Weight     ≈7kg(Excluding attachments)




  • Product Features
1. Test the YN three-phase winding DC resistance of transformer at the same time, greatly shorten the test time.
2. Quickly and accurately test the winding DC resistance of transformer
3. Perfectly protection function
4. Small and portable
5. LCD full English menu, simple and intuitive operation
6. Fast test speed, high accuracy, good data repeatability, strong anti-jamming ability
