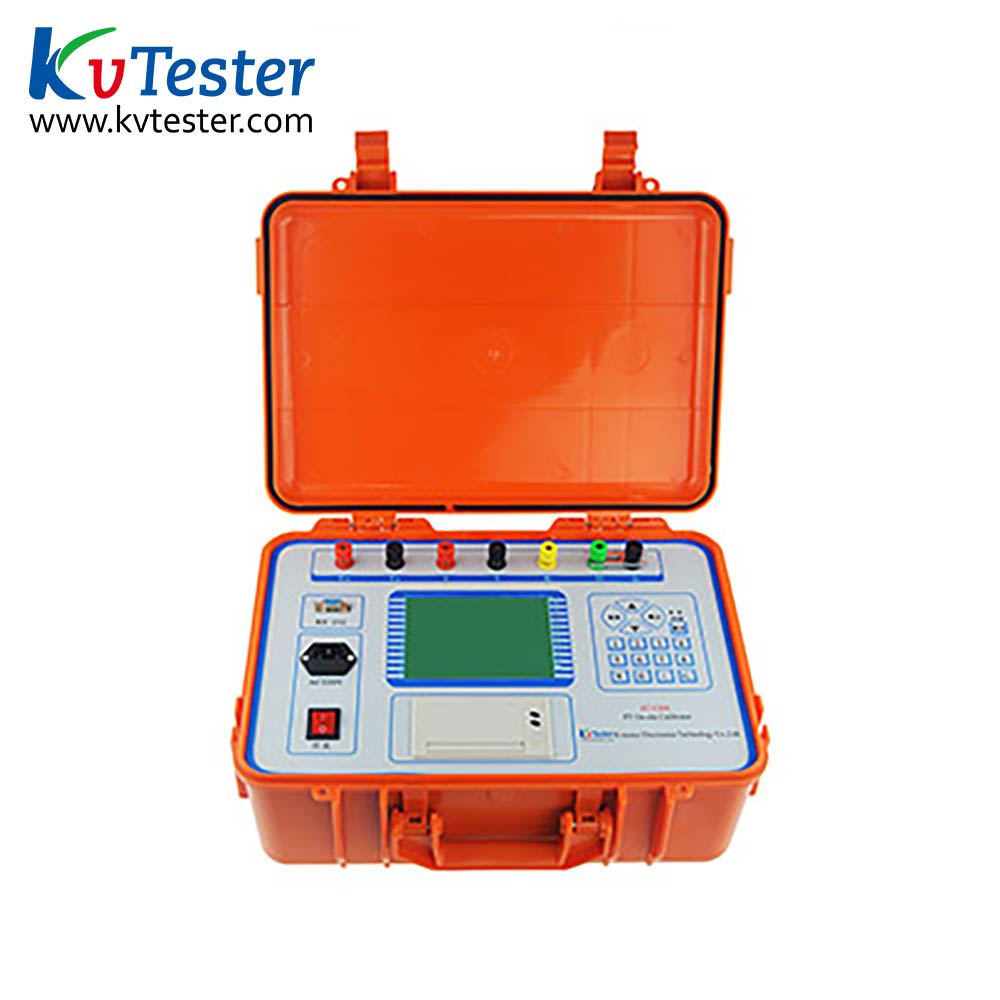

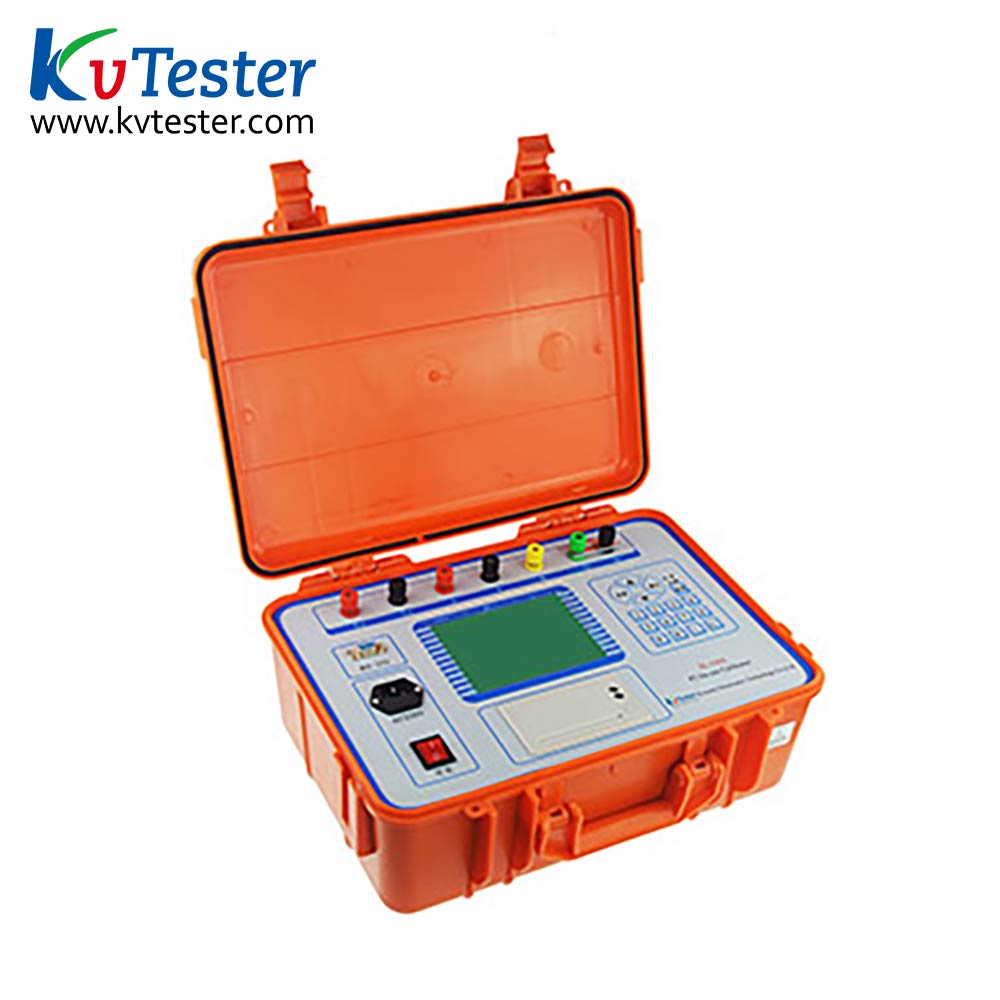

PT On-site Calibrator

type:ZC-120A
Online Service

TAGS:

  • ZC-120A
    • Product Introduction

           ZC-120A voltage transformer field calibrator is developed with high-end testing technology, large-scale electronic circuit design and in compliance with relevant national regulations. The voltage transformer tester solves the problem that the on-site verification voltage transformer has large working intensity and complicated operation, and the product has reliable performance and powerful functions.

    • Product Parameters
    Measurement Range 6kV、6kV/√3、10kV、10kV/√3、15.75kV、15.75kV/√3
    20kV、20kV/√3、27.5kV、27.5kV/√3、35kV/√3、35kV、100kV/√3、200kV/√3


    CT Working Range     20%～200%
    CT Secondary Load     2.5VA-600VA、COS=0.8
    CT Accuracy Range     1.0、0.5、0.2、0.1
    Resistance Trans-admittance Error     ≤5.0%
    Resistance Trans-admittance Range     R:0.00Ω～5.0ΩY:0.00mS～200.0mS
    Power Consumption     20VA
    Measurement Accuracy     0.05S
    Dimension     460mm×350mm×135mm
    Weight     11.0kg


    • Product Features
        1. Test and display the upper ＆ lower limiting load and any error (ratio, phase-angle difference) of national standard test PT.
        2. Test and display any two groups' actual load standard percentage point and any percentage point error (ratio, phase-angle difference).
        3. Test ratio and polarity of the PT.
        4. 640×480LCD; easy to connect wire and operate, convenient to carry.
        5. Can store and print all test results, convenient to review.
