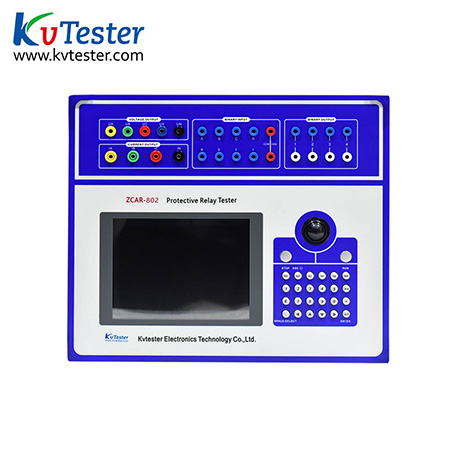

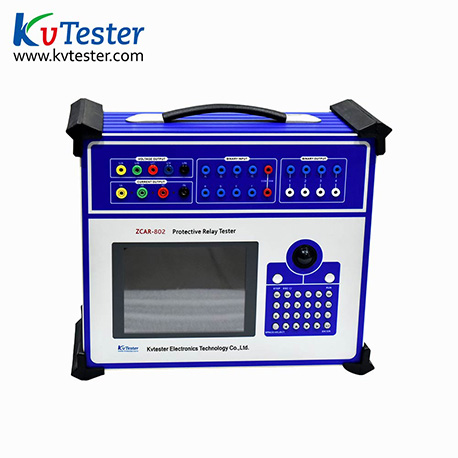

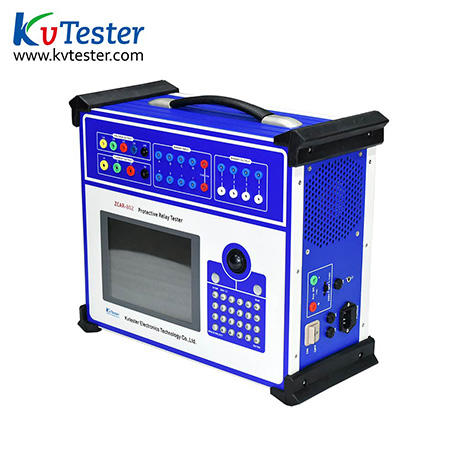

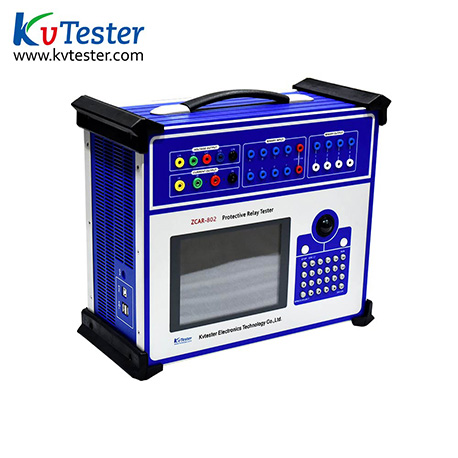

Microcomputer Protective Relay Tester

Microcomputer Protective Relay Tester

Type: ZCAR-802
       The ZCAR-802 relay tester is operated by a convenient and flexible rotating mouse through a large LCD screen and a full English display. It can perform the most test work, including various relay and microcomputer protection tests, and can simulate various complex transient, permanent, and conversion faults. It can be used immediately after startup and is easy to operate.
Contact Supplier
  • Product Features
  • Parameter
  • Guide
  • Scene
  • Related video
  • Packing
Product Features
    1. The standard output of 4 phases of voltage and 3 phases of current
    It could combine various type of current or voltage conveniently and has diversity type of protective experiment. Every phase of voltage output is 120V, and the total of the parallel current is 120A. The fourth phase voltage Ux has many functions and it can be set to be 4 type of every three voltages or synchronism checking voltage, or output any value of voltage.
    2. Dual operation model, connect computer for work
    By using the English setting operation software on the Windows platform, it can work for all kinds of large, complex and higher degree automation check work and it is convenient to test and scanning all kinds of protection fixed value, as well as storage real-time test data, display vector chart, draw fault waveform, online print statements, and so on.
    3. Strong function of software
    It can complete all kinds of large complex check work requiring for high degree automation, such as three phase differential test, auxiliary power supply for fast cutting and automatic input test, line protection by synchronism checking voltage reclosing and so on. and it can easily test and scanning all kinds of protection setting for fault playback, storage real-time test data, display vector chart, online print reports, etc.
    4. The amount of switch quantity contacts is rich
        road contact input and 2 couples of empty output contact. The input contact is compatible for both empty contact and 0 ~ 250 v contact, and it has intelligent automatic recognition. Input and output contact can be expanded based on the user’s need.
    5. Large LCD screen
    The device adopts large and high resolution radio graphics LCD screen with 320 x 240 lattices, and the whole operation process are set on the screen, whose operation interface and test results are both show in English, intuitional and clear.
    6. Self-protection
    Use reasonable design of the heat dissipation structure, has various reliable and perfect protection and power soft start, along with fault self-diagnosis and locking function.
    7. Independent DC power output
    The device is equipped with a way of 110v DC and 220v DC special adjustable power output.
    8. Cost-effective
    It is an interdisciplinary design production, integrating many advanced scientific and technological achievements of many areas. More important, its large tester performance, and small tester price, distinguishes it as a very cost-effective machine.
Alternating current output Output accuracy 0.5 magnitude
Phase current output (effective value) 0~40A
Three parallel phase current output (effective value) 0~120A
Phase current value with long time under permission (effective value) 10A
Phase current maximum power output 400VA
Three parallel phase current maximum power output 1000VA
Three parallel phase current maximum work time 10s
Frequency range (base wave) 20~1000Hz
Harmonic frequency number 1~20 time
Direct current output Output accuracy 0.5magnitude
Current output 0~±10A/each phase, 0~±30A/every three parallel
Maximum output of load voltage 20V
Alternating current output Output accuracy 0.5 magnitude
Phase voltage output (RMS) 0~120V
Line voltage output (RMS) 0~240V
Phase voltage/line voltage power output 80VA/100VA
Frequency range (base wave) 20~1000Hz
Harmonic frequency number 1~20 times
Direct voltage output Output accuracy 0.5 magnitude
Phase voltage output amplitude 0~+160V
Line voltage output amplitude 0~+320V
Phase voltage/line voltage power output 70VA/140VA
The switch quantity and time measurement Switch parameters input (7ways) Empty contact: 1~20mA, 24v
Power contact access: "0": 0~+6V; "1": +11V~+250V
Switch parameters output (2couples) DC: 220V/0.2A
AC: 220V/0.5A
Time measurement Measuring range: 0.1ms~9999s
Measuring accuracy: 0.1ms
Volume and weight Appearance and size 400mm×300mm×180mm
Weight of a single machine 22kg
Working environment Supply power AC 220V±10%,50/60Hz
Environmental temperature -10℃~+50℃
