Vacuum Interrupter Detector
Vacuum Interrupter Detector

Vacuum Interrupter Detector

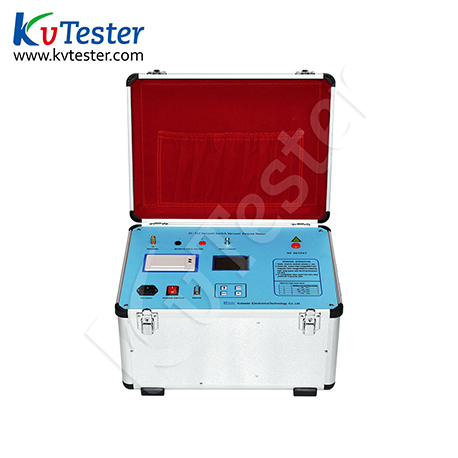

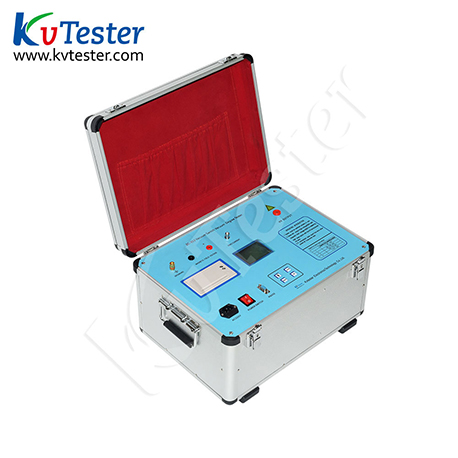

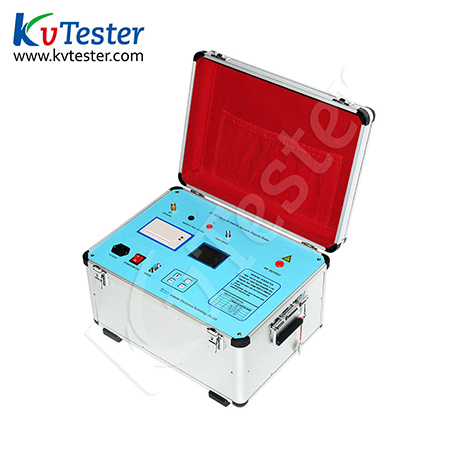

Type: ZC-313
    ZC-313 is designed to measure the vacuum degree of vacuum switches. It uses an electromagnetic discharge measuring method, to ensure the testing results accurate and reliable. The testing data can estimate vacuum switch’s health and life span.
Online Service
Product Features
    1. No need to dismantle the vacuum switch in measurement;
    2. Two types of magnetic coil for different measuring method;
    3. Can test many types of vacuum switch;

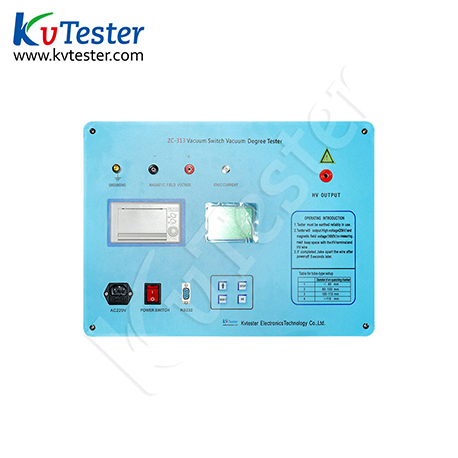

    4. Menu on LCD screen, easy to operate;
    5. Data storage, Viewed and Printed functions;
    6. RS-232 port to Computer;
    7. Light weight, Portable.
Technical Parameter
Detection object various types of vacuum switch tube.
Detection method a new type of excitation coil is used to carry out the measurement of the vacuum tube.
Scope of application This instrument is one machine multi-purpose, can measure many kinds of models vacuum switch.
Detection range 10-5~10-1 Pa
Measurement accuracy 10-5~10-4 Pa,10%
10-4~10-3 Pa,10%
10-3~10-2 Pa,10%
10-2~10-1 Pa,10%
Field Voltage 1700V
Pulsed electric field high voltage 30kV
Use environment -20℃~40℃
Use environment -20℃~40℃
Outline dimension 410×320×370(mm)
Sampler magnetron coil

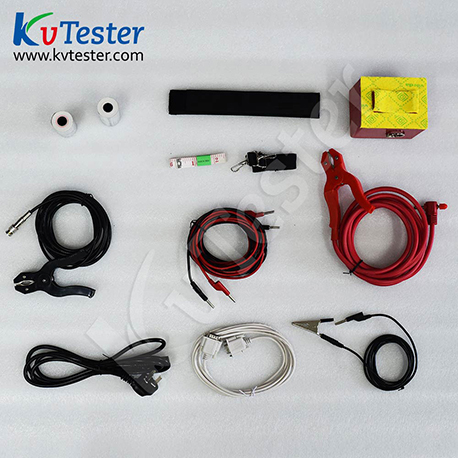

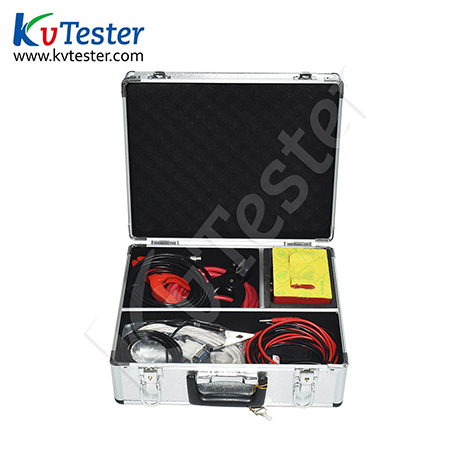

Standard Accessories
