ZC-820 High voltage detector up to 110 kV AC
Description



Product Introduction

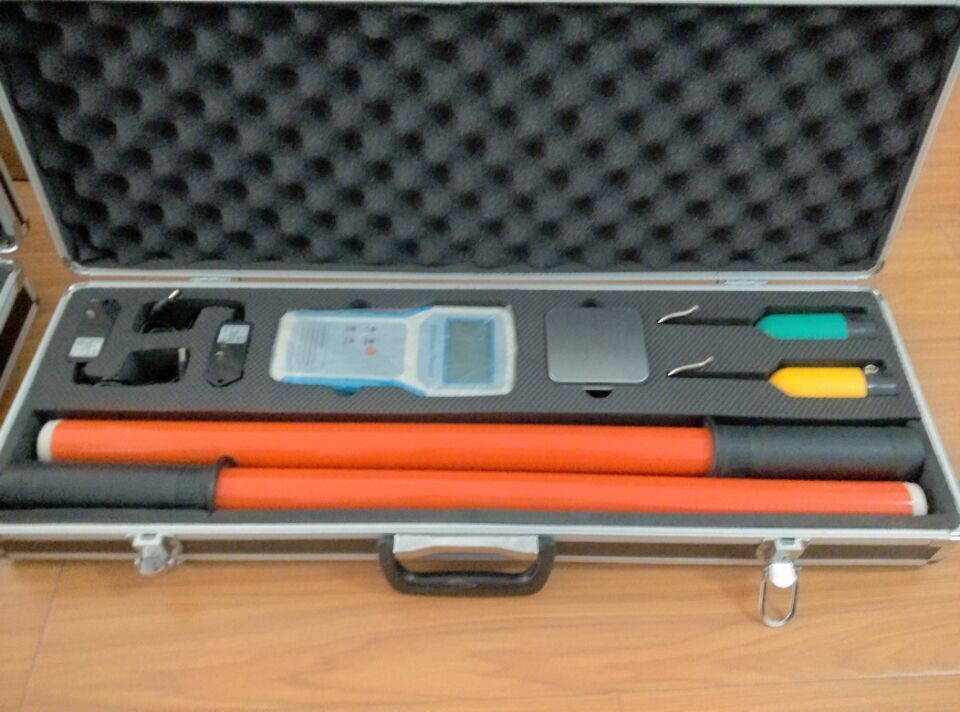

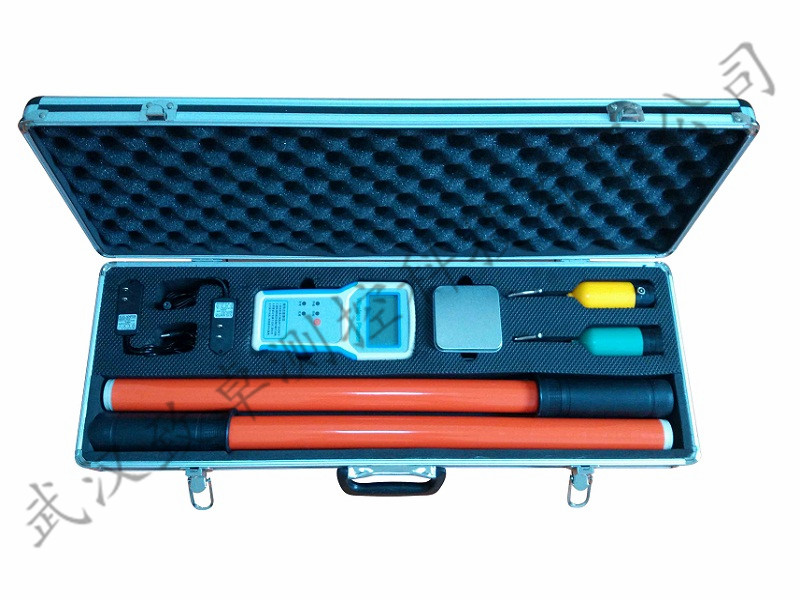

ZC-820  High voltage detector up to 110 kV AC, used in power lines, phase tests and phase sequence tests for substations, with functions of phase testing, phase sequence testing, electrical inspection. With strong anti-interference ability, in line with (EMC ) standards, adapt to a variety of electromagnetic interference occasions. High voltage phase signal will be taken out by the collector, discharge directly after treatment. Received by instrument and compare the phase, and identify the results. This product is wireless transmission, safe, reliable, fast and accurate, adapt to a variety of phase testing occasions. Its main advantage is without the wire which connect two grids (power source) , distance up to 200M and could trough enclosure or partition plate, improve the safety, without the limitation by terrain and the structure of the equipment , easy to operate, only need one person to operate and one person to supervise.

Alternative Name

HV phasing tester, phasing device, wireless phasing tester, HV phasing tester, phonetic phasing tester

Product Features

1.Use high capacitive non-maintenance lithium battery to supply power, special for field test.
2. Long transmission distance, up to 200M.
3. LCD display phase ,waveform, frequency , safe and reliable.
4. Telescopic insulation bar, easy to use.
5. Portable receiver with non-skid treatment.
6. uses advanced technique, small in volume, light in weight

Product Parameters

1. Electrical Specifications
1.1 measurement voltage range: 0.4 ~ 500kV
1.2 wireless transmission distance ≥ 200M
1.3 in-phase definition :strictly according national standard, phase angle ≤30° is in-phase, phase angle≥30° is opposite phase
1.4 working frequency: 45~60Hz, applies to foreign countries 60Hz grid.
2. Insulation parameters
2.1 Launcher (2) insulation grade: 80kV/cm
2.2 Telescopic insulation rod is damp-proof, high voltage resistant, impact resistant, buckling resistant, details see below tables.
Table 1 insulation rod mechanical , electrical parameters



Table 2 voltage withstand measurement parameters for insulation rod



Table 3 composite parameters
