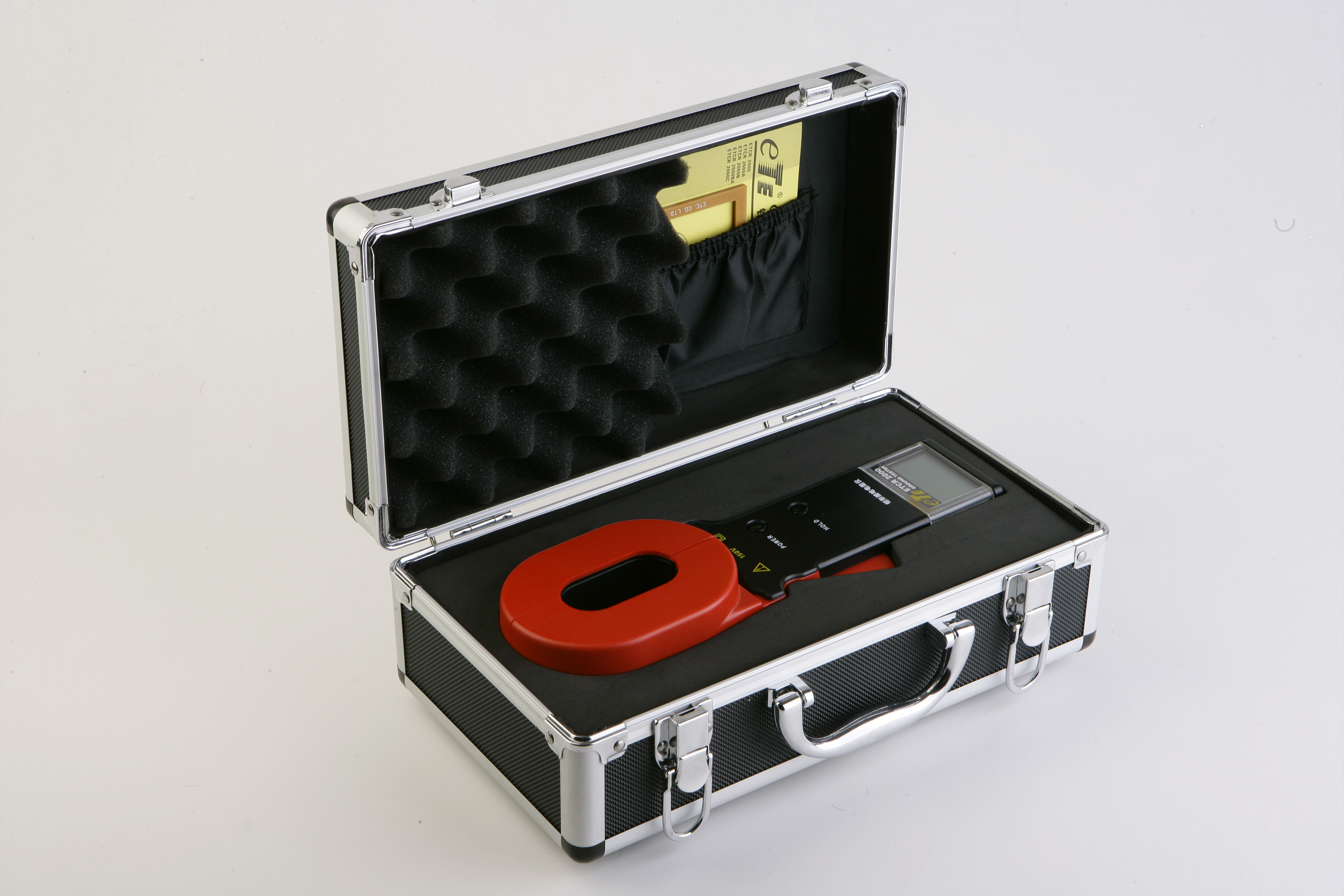

ZCCR-2000 Clamp-On Ground Resistance Tester
Description



Product Introduction

ZCCR-2000 Clamp-On Ground Resistance Tester is a major technological breakthrough in traditional grounding resistance measurement. It is widely used in the grounding resistance measurement of electric power, telecommunications, meteorology, oilfield, construction and the industrial and electrical equipment.
    ZCCR-2000 series Ground Clamp Meter, in the measurement of a grounding system with loop current, does not require disconnecting the grounding wire, and need no auxiliary electrode. It is safe, fast and simple in use.
    ZCCR-2000 series Ground Clamp Meter can measure out the faults beyond the reach of the traditional methods, and can be applied in the occasions not in the range of the traditional methods. ZCCR-2000 series Earth Ground Clamp Meter can measure the integrated value of the grounding body resistance and the grounding lead resistance.
    ZCCR-2000 series Ground Clamp Meter are equipped with either a long clamp or a round clamp, as indicated in the figure below. A long clamp is particularly suitable for the occasion of grounding with the flat steel.
    In addition, ZCCR-2000 Earth Ground Clamp Meter is also able to measure the leakage current and the neutral current in the grounding system.

Alternative Name

ground resistance tester, ground clamp meter, ground clamp resistance tester

Product Features

1.Applies to all kinds of ground lead. (round bar, flat bar, angle iron)
2. non-contact measured resistance, safe ,fast.
3. need not use assistant ground rod.
4. with double protecting insulation.
5. with strong anti-interference ability and high accuracy.
6. use dry batteries, convenient for customers.

Product Parameters

1. power: 6V DC
2. temperature: -10℃~55℃
3. humidity: 10%~90%
4. LCD:four and half LCD, 47mmx28.5mm
5. span of clamp: square clamp: 28mm, round clamp: 32mm
6. weight of meter: square clamp: 1320g, round clamp: 1120g
7. explosion – proof symbol: Exia II BT3
8. meter dimension: square clamp 293mmx90mmx66mm
round clamp: 260mmx90mmx66mm
9. protection class: double insulation
10. structure feature: clamp
11. measuring range gear shifting: auto
12. external magnetic field < 40A/m
13. external electric field < 1V/m
14. single measuring time: 1 second
15. resistance measuring frequency > 1KHz
resolution for resistance measurement: 0.001Ω
resistance measurement range: 0.01-1000Ω
* current measurement range: 0.00-30.0A
*the measured current frequency: 45-65Hz
*groups of saved test data: 50
*set range for resistance critical value alarm: 1-199Ω
* set range for current critical value alarm: 1-499mA
