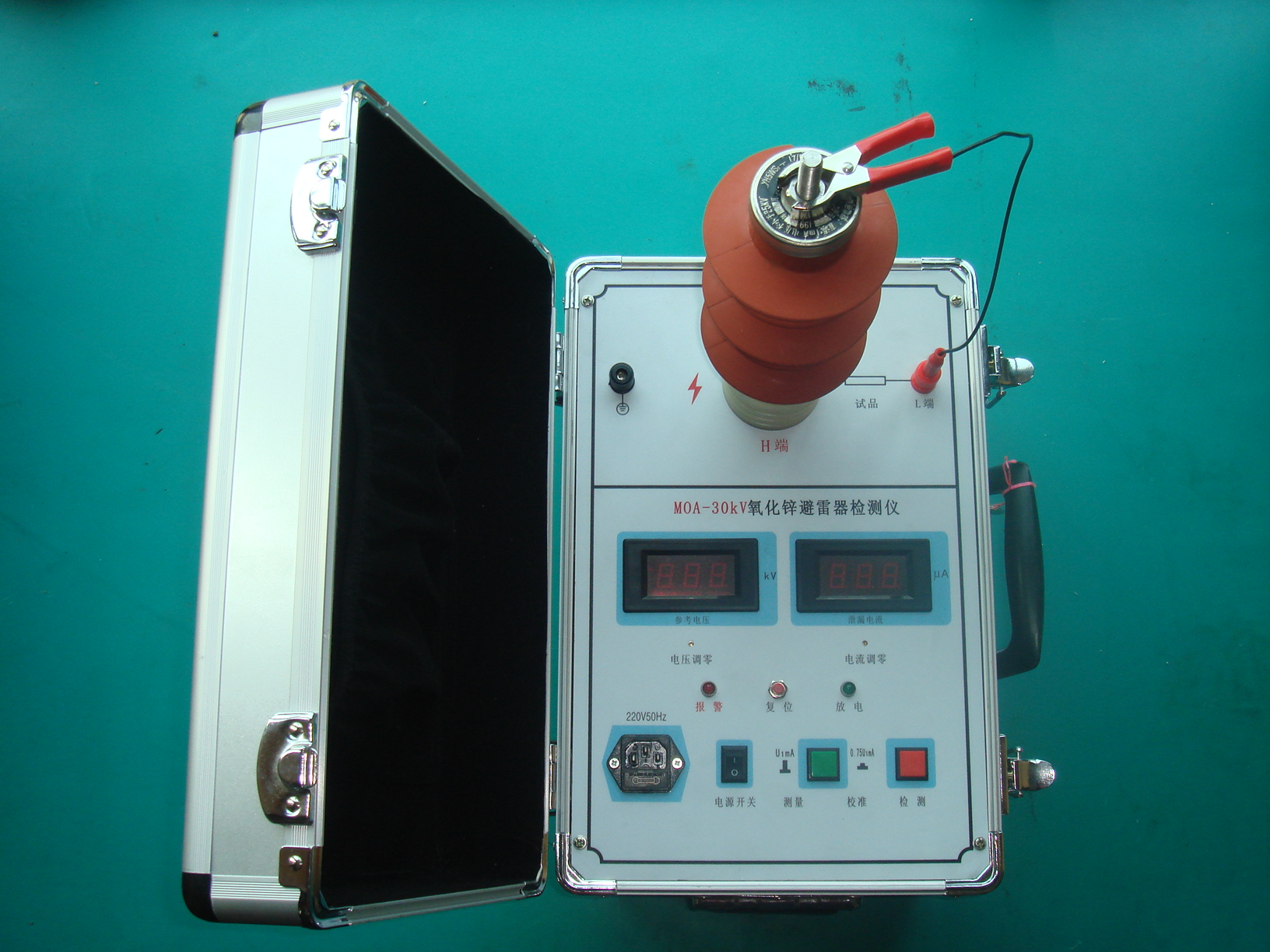

ZC-711 Zinc Oxide Arrester DC Parameter Tester
Description



Product Introduction

ZC-711 Zinc Oxide Arrester DC Parameter Tester special applies to test gapless arrester MOA bad contact internal defects of power system under 10KV. Measured the leakage current under DC reference voltage (U1Ma) of MOA and 0.75 U1mA .This device composed by DC HV power source, measuring and controlling system, all components in one case, small in volume, light in weight .

Alternative Name

Arrester tester, zinc oxide arrester characteristics tester, MOA-30KV arrester DC parameter tester

Product Features

1.Auto to measure, easy and fast to operate.
closed-loop high precision adjustment for 1mA current and 0.75 times DC reference voltage using principle of automatic control, adopts micro computer to control the measurement process, only press on button is ok, the whole process in 15 seconds, very suit for mass measurement.
2. Integral structure, small in volume ,light in weight
This device composed by DC HV power source, measuring and controlling
system, all components in one case, small in volume, light in weight .
3. Special design, easy to connect wire.

Product Parameters

1. Rated output: voltage:0~30kV
current:0~1000μA
2. Accuracy : voltage 1%
3. Temperature :0~+40℃
4. Relative humidity:≤85% (25℃)
5. Altitude :< 1000M
6. Supply voltage: 220V±10%
7. Power frequency: 50±1HZ
