ZC-701 Cable Identifier
Description




Product Introduction

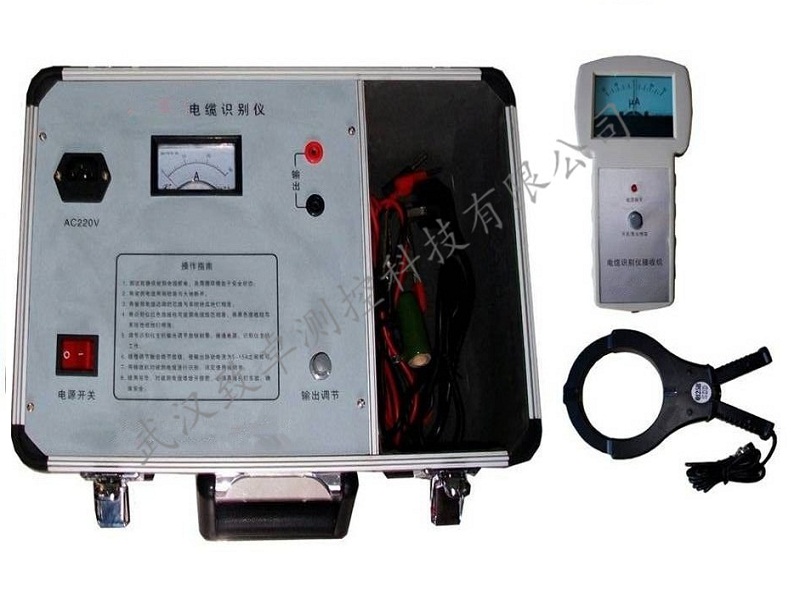

ZC-701 Cable Identifier includes a transmitter and a receiver, it can be used to locate trace and depth of the underground cables and metallic pipes, also to identify the cable from a bunch of cables.



Product Features

Transmitter

  • Output (Three mode): Direct connection output, Clamp Coupling output, Radiation induction.
  • Frequency (6 for choice): 500Hz, 1kHz, 8kHz, 33kHz, 66kHz, 93kHz, including 500Hz and 1kHz is complex frequency. It can realize the function of Correct/False indication and pipe identification with the help of Receiver.
  • Fault signal output to detect Pipe grounding fault.
  • Power output: Max. 10W, 4 steps adjustable.
  • Automatic impedance matching and functions of overload&short-circuit protection.
  • Power supply: Internal rechargeable Lithium battery. It can be recharged by charger (AC 220V) or car cigarette lighter (12V).
  • If low battery, the instrument will shut down automatically, to protect battery.
  • Robust and portable.

Receiver

  • Left/Right arrow indication for Cable Route Tracing. (Patent technology)
  • Correct/False indication (Patent technology). It will point to the forward when the detected cable is traced correctly. Otherwise, it will point to the backward and it will show “?”.
  • Strong anti-interference.
  • Automatic measurement of depth and current.
  • Various detection mode, more accurate.
  • Detection frequency: 500Hz, 1kHz, 8kHz, 33kHz, 66kHz, 93kHz, suitable for different conditions.
  • Two passive detection frequency bands: power frequency and radio frequency (RF). No need to connect with audio frequency generator.
  • History curve display.
  • Cable identification: Clamp identification and stethoscope identification. Clamp identification can measure the current amplitude and direction of cable precisely and give accurate result. Stethoscope identification is a traditional method when it is not convenient to use Clamp identification. It is easy wiring for Stethoscope identification.
  • Grounding fault location.
  • Built-in Rechargeable lithium battery.
  • Automatic shut down if there is no operation in 30mins.
  • Robust and portable.


Product Parameters

Transmitter

  • Output frequency:
  • 500Hz, 1kHz, 8kHz, 33kHz, 66kHz, and 93kHz. 500Hz and 1kHz are complex frequency. 8Hz is very low complex frequency. It is the frequency of fault location.
  • Output power: Max.10W for 500Hz, 1kHz, 8kHz, 33kHz and fault location. frequency. Four steps adjustable: 2.5W, 5W, 7.5W, 10W. 1W for 66kHz and 93kHz.
  • Output voltage: Max.200V (AC peak value), automatic adjustable according to the load.
  • 128*64 LCD display.
  • Built-in Lithium battery: nominal 14.8V, 7Ah.
  • External power supply: rated voltage DC12V (car cigarette lighter output)
  • Charger: AC 100-240V input, 50/60Hz, output DC 16.8V,2A/3A.
  • Size: 275*220*100mm.
  • Weight: 2.4kg.
  • Working condition: Temperature -10--40℃. Humidity 5-90% RH, Altitude<4500m.

Receiver

  • Input mode: Built-in receiving coil, Clamp, 1k Stethoscope, 8k Stethoscope, A type fault detection device.
  • Receiving frequency:
Active detection frequency for Pipes: 500Hz, 1kHz, 8kHz, 33kHz, 66kHz and 93kHz.
Passive detection frequency: Power frequency and radio frequency (RF).
Clamp identification frequency: 500Hz, 1kHz complex frequency.
Clamp current measurement frequency: 500Hz, 1kHz, 8kHz.
Stethoscope identification frequency: 1kHz, 8kHz..
Grounding fault location frequency: 8Hz complex frequency.
