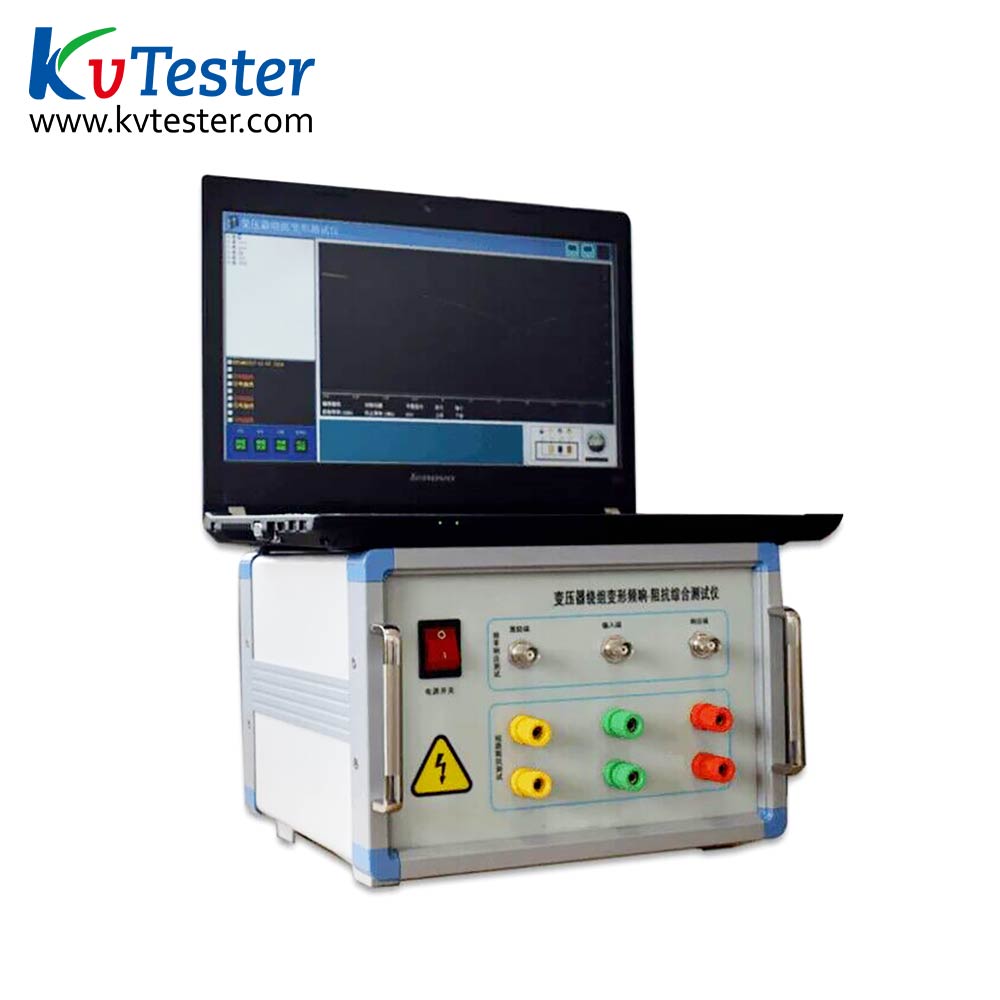

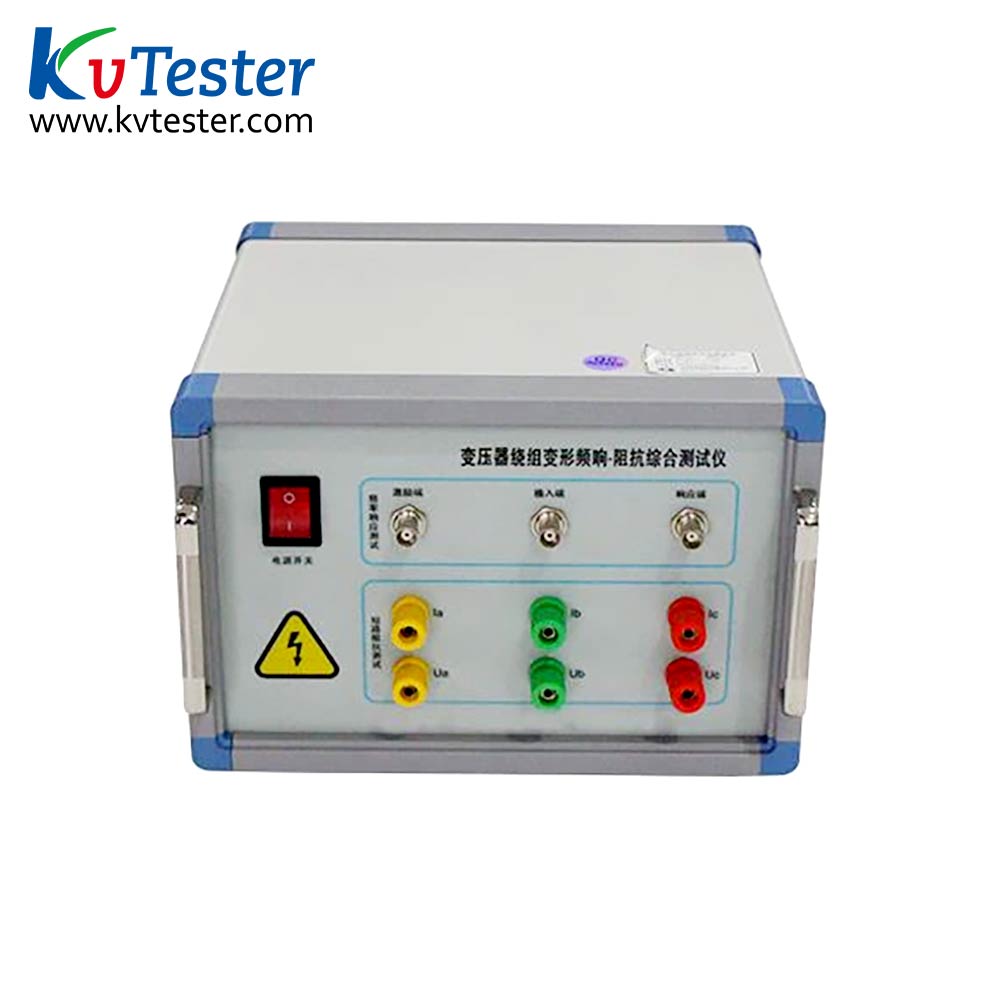

Transformer Short Circuit Impedance Tester And Sweep Frequency Response Comprehensive Analyzer

type:ZC-206D

Online Service

Measurement speed	single-phase winding 1.5 minutes to 3 minutes
Output voltage	Vpp-10V, the test is automatically adjusted
Output Impedance	50Ω
Input impedance	1MΩ (response channel built 50Ω matching resistor)
Sweep range	50Hz-2MHz or 50Hz-10MHz (optional)
Frequency accuracy	0.001%
Sweep mode	linear or logarithmic, sweep interval, and points can be set
Curve shows	amplitude frequency curve (phase frequency curve, optional)
Measuring wide dynamic range	-100dB ~ 20dB
Supply voltage	AC220V ± 10%
Weight	5kg

1. Can do testing without hanging hood, removing case of transformers

2. Have perfect protection circuit, strong anti-jamming capability and high reliability

3. Measurement speed

4. Response channel have more range, automatic regulation in the process of measuring range;

5. Software interface is simple and intuitive

6. Using windows platform, compatible with Window 2000 / Window XP / Windows7 / windows8.
